7N0820101 Evaporator With Expansion Valve
- 7N0820101This pageNot stocked
Jan 2015 - 7N0820101ASuperseded
Jul 2017
- Current number7E0820105ACurrent number
- Current number7H0820679CCurrent number
Special order item. Delivery time may vary.
About This Part
Superseded part number
This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VAG is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINShipping details
- Shipping weight
- 1 kg
- Shipping size (L × W × H)
- 31 × 17.5 × 8.2 cm
- Customs (HS) code
- 84189910

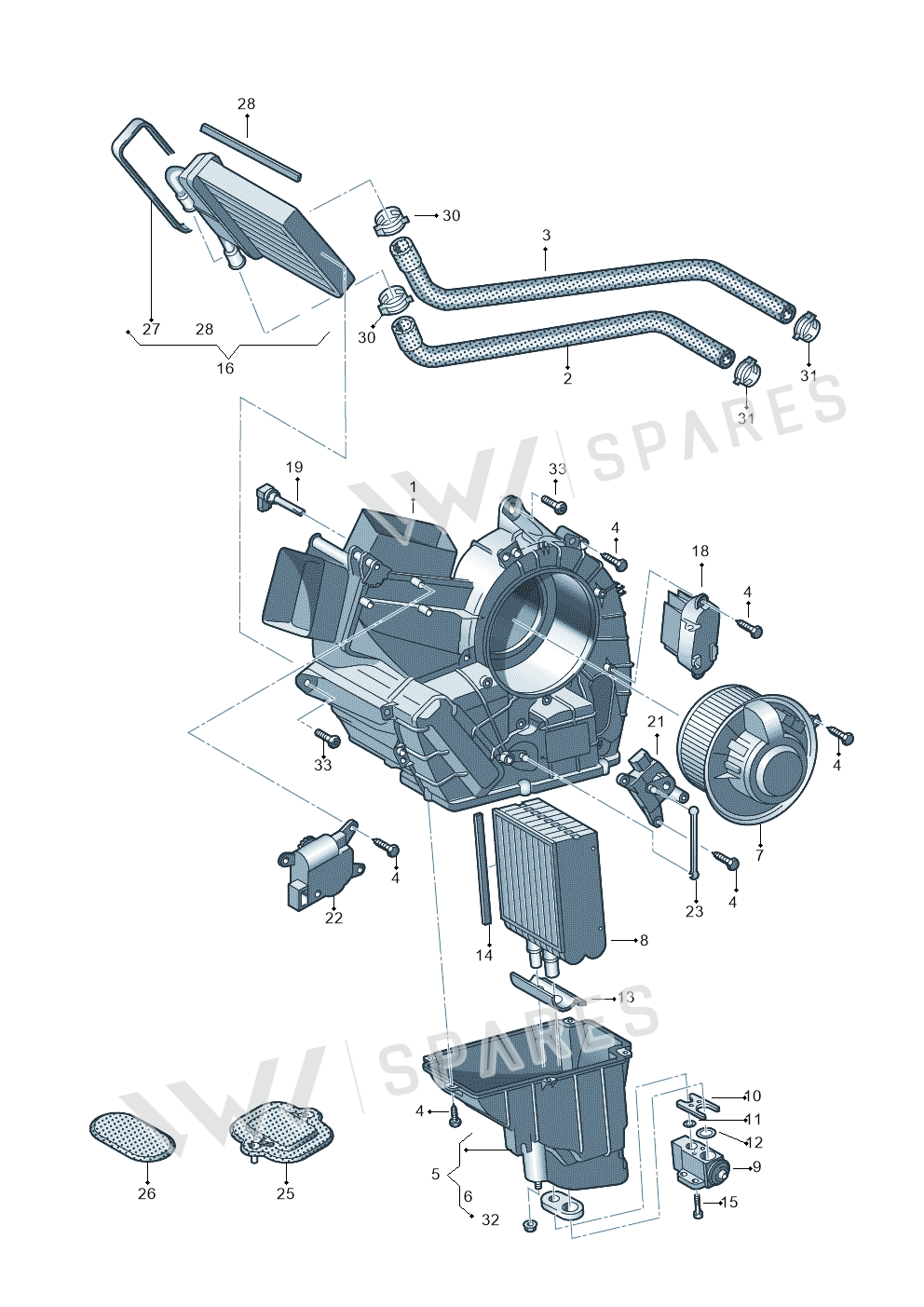

Parts diagram & fitment
2 vehiclesEvaporator With Expansion Valve — locate Evaporator With Expansion Valve in the official exploded view and explore the surrounding assembly.
Parts in this assembly31
- 1Housing 7N0820049
- 2Hose 7N0815991
- 3Hose 7N0815992
- 4Screw N10424102
- 5Cover 7H0820024B
- 6Seal 7H0820175
- 7Engine 7H0819021A
- 8Evaporator 7E0820105A
- 8Evaporator 7N0820101A
- 9Expans Val 7H0820679C
- 9Expans Val 7N0820712
- 10Bracket 7L0820678
- 11Seal Ring 8E0260749A
- 12Seal Ring 8E0260749
- 13Seal 7H0820133
- 14Seal 7H0820130
- 15Screw N10476301
- 16Heat Exch 7H0819032
- 18Regulator 7L0907521B
- 19Temperature Sensor 3D0907543A
- 21Motor 7E0907512
- 22Servomotor 7H0907512E
- 23Coupl Rod 7H0819317
- 25Grommet 7N0820668A
- 26Bungs 7H0819598
- 27Seal 7H0819109
- 28Seal 7H0819065
- 30Clamp N90687001
- 31Clamp N90686902
- 32Ut Hexagon Flange Nut Self-locking Hexagon N90887703
- 33Bolt N90684104
Vehicle fitment table2
Europe (2)
| Vehicle | Years | Pos. | Qty | PR |
|---|---|---|---|---|
| Sharan Blue Motion | 2010-2015 | 8 | 1 | 9AH,9AU |
| Alhambra Stylance | 2010-2013 | 8 |
Diagrams & fitment data powered by oemdiagrams.com
Evaporator With Expansion Valve is fitted on: Sharan Blue Motion 2010-2015; Alhambra Stylance 2010-2013.
