803121275A Bonded Rubber Bush
- 803121275AThis pageNot stocked
Feb 2007 - 803121275Current number
Special order item. Delivery time may vary.
About This Part
Superseded part number
This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VAG is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

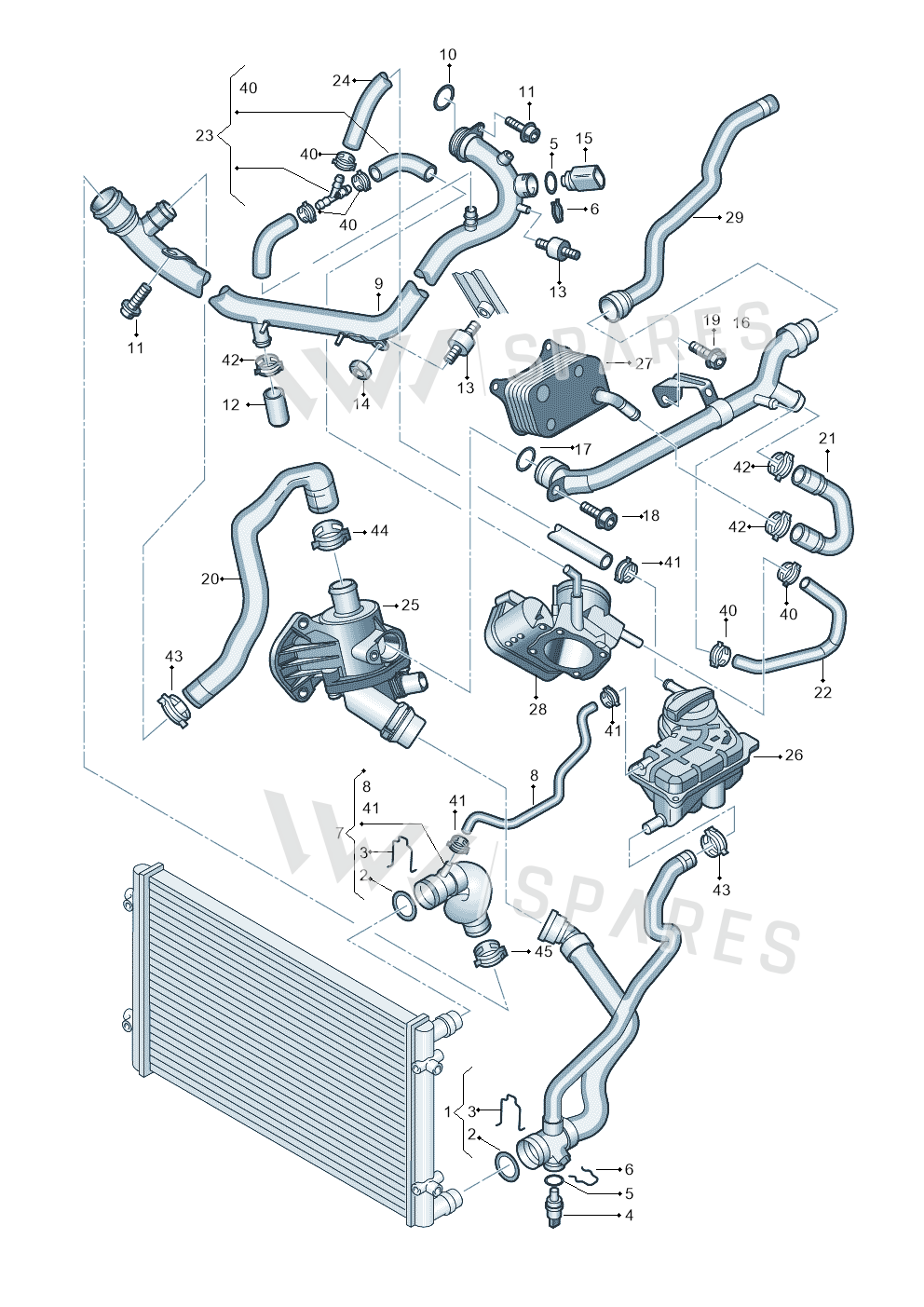

38 vehiclesBonded Rubber Bush — locate Bonded Rubber Bush in the official exploded view and explore the surrounding assembly.
Parts in this assembly28
- 1Hose 8E0121055J
- 2Seal Ring N90765301
- 3Spring 1J0121142
- 5Seal Ring N90316801
- 6Spring 032121142
- 7Hose 8E0121101N
- 7Hose 8E0121101AE
- 8Hose 8E0121107G
- 9Water Pipe 06D121071S
- 10Seal Ring N90275302
- 11Screw N10226101
- 12Part 078133335A
- 14Collar Nut N01508213
- 16Water Pipe 06D121065A
- 17Seal Ring N90365302
- 18Bolt N10156305
- 19Bolt N90945001
- 20Hose 06D121057D
- 21Hose 06D121058H
- 22Hose 06D121058K
- 23Hose 06D121056E
- 24Hose 8E0121107K
- 40Clamp N90686701
- 41Clamp 4B0422379
- 42Clamp N90686901
- 43Clamp N90687001
- 44Clamp N90687101
- 45Clamp N90687201
Vehicle fitment table40
Europe (29)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| Audi A4/S4/Av./qu. | 2001-2004 | 13 | 2 | T17 | |
| Audi A8 quattro | 1999-2002 | 47, 29 | 1 | ||
| AUDI A8 | 1998-2002 | 47, 29 | 1 | ||
| TOLEDO SEAT MOD.97>99 | 1996-1999 | 14 | 1 | ||
| Audi A8 | 1996-1998 | 47, 29 | 1 | ||
| Audi A8 qu. | 1996-1998 | 47, 29 | 1 | ||
| Passat | 1994-1997 | 19 | 1 | ||
| Passat Var.syncro | 1994-1996 | 19 | 1 | ||
| Passat | 1991-1993 | 19 | 1 | ||
| Audi 4000 S | 1984-1987 | 35 | 2 | ||
| Audi 4000 S/CS qu. | 1984-1987 | 33 | 2 | ||
| AUDI COUPE QUATTRO/2 | 1984-1987 | 33 | 2 | ||
| Audi 5000 S/Wagon | 1984-1986 | 27A | |||
| Audi 4000 S qu. 84 | 1983-1984 | 33 | 2 | ||
| Audi quattro | 1982-1987 | 9 | 1 | ||
| Audi Coupe | 1981-1987 | 35 | 2 | ||
| Audi 4000 | 1981-1984 | 35 | 2 | ||
| PASSAT,-VARIANT/2 81 | 1980-1981 | 2 | 2 | ||
| Audi 5000 Turbo | 1979-1982 | 3 | 3 | ||
| Audi 4000 | 1979-1981 | 35 | 2 | ||
| Scirocco | 1978-1980 | 9, 17 | 1 | FN | |
| Dasher | 1977-1980 | 33, 17 | 1 | ||
| Scirocco | 1976-1978 | 5D, 17 | |||
| Audi Fox | 1976-1978 | 38, 13 | 1 | ||
| POLO,DERBY,AUDI 50 | 1974-1981 | 51 | 2 | ||
| POLO,DERBY,AUDI 50 | 1974-1981 | 51 | 2 | ||
| Scirocco | 1974-1976 | 14B | 2 | ||
| Dasher | 1973-1977 | 13 | 1 | ||
| Audi Fox | 1972-1976 | 13 | 1 |
Other markets (8)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| Quantum syncro | 1985-1988 | 2 | 2 | ||
| Quantum 85 | 1984-1985 | 2 | 2 | ||
| Quantum | 1981-1984 | 2 | 2 | ||
| Vanagon | 1979-1985 | 18, 20 | 2 | GW | |
| Rabbit/Jetta | 1978-1980 | 9, 17 | 1 | FN | |
| Rabbit Conv. | 1978-1980 | 9, 17 | 1 | FN | |
| Rabbit | 1976-1978 | 5D, 17 | |||
| Rabbit | 1974-1976 | 14B | 2 |
Platform / generic diagrams (1)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| 325 platform | 27 |
Listed without a diagram position (2)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| Audi A6/Avant | 1997-2001 | 1 | |||
| Audi A6/Av.qu.F4B-W-> | 1997-2001 | 1 |
Diagrams & fitment data powered by oemdiagrams.com
Bonded Rubber Bush is fitted on: Audi A4/S4/Av./qu. 2001-2004; Audi A8 quattro 1999-2002; AUDI A8 1998-2002; TOLEDO SEAT MOD.97>99 1996-1999; Audi A8 1996-1998; Audi A8 qu. 1996-1998; Passat 1994-1997; Passat Var.syncro 1994-1996; Passat 1991-1993; Audi 4000 S 1984-1987; Audi 4000 S/CS qu. 1984-1987; AUDI COUPE QUATTRO/2 1984-1987; Audi 5000 S/Wagon 1984-1986; Audi 4000 S qu. 84 1983-1984; Audi quattro 1982-1987; Audi Coupe 1981-1987; Audi 4000 1981-1984; PASSAT,-VARIANT/2 81 1980-1981; Audi 5000 Turbo 1979-1982; Audi 4000 1979-1981; Scirocco 1978-1980; Dasher 1977-1980; Scirocco 1976-1978; Audi Fox 1976-1978; POLO,DERBY,AUDI 50 1974-1981; Scirocco 1974-1976; Dasher 1973-1977; Audi Fox 1972-1976; Quantum syncro 1985-1988; Quantum 85 1984-1985; Quantum 1981-1984; Vanagon 1979-1985; Rabbit/Jetta 1978-1980; Rabbit Conv. 1978-1980; Rabbit 1976-1978; Rabbit 1974-1976; 325 platform.
