8D0121337 Sleeve
Special order item. Delivery time may vary.
About This Part
Discontinued by the manufacturer
This part number has been discontinued and can no longer be ordered. Contact us and we will look for an alternative.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VOLKSWAGEN is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

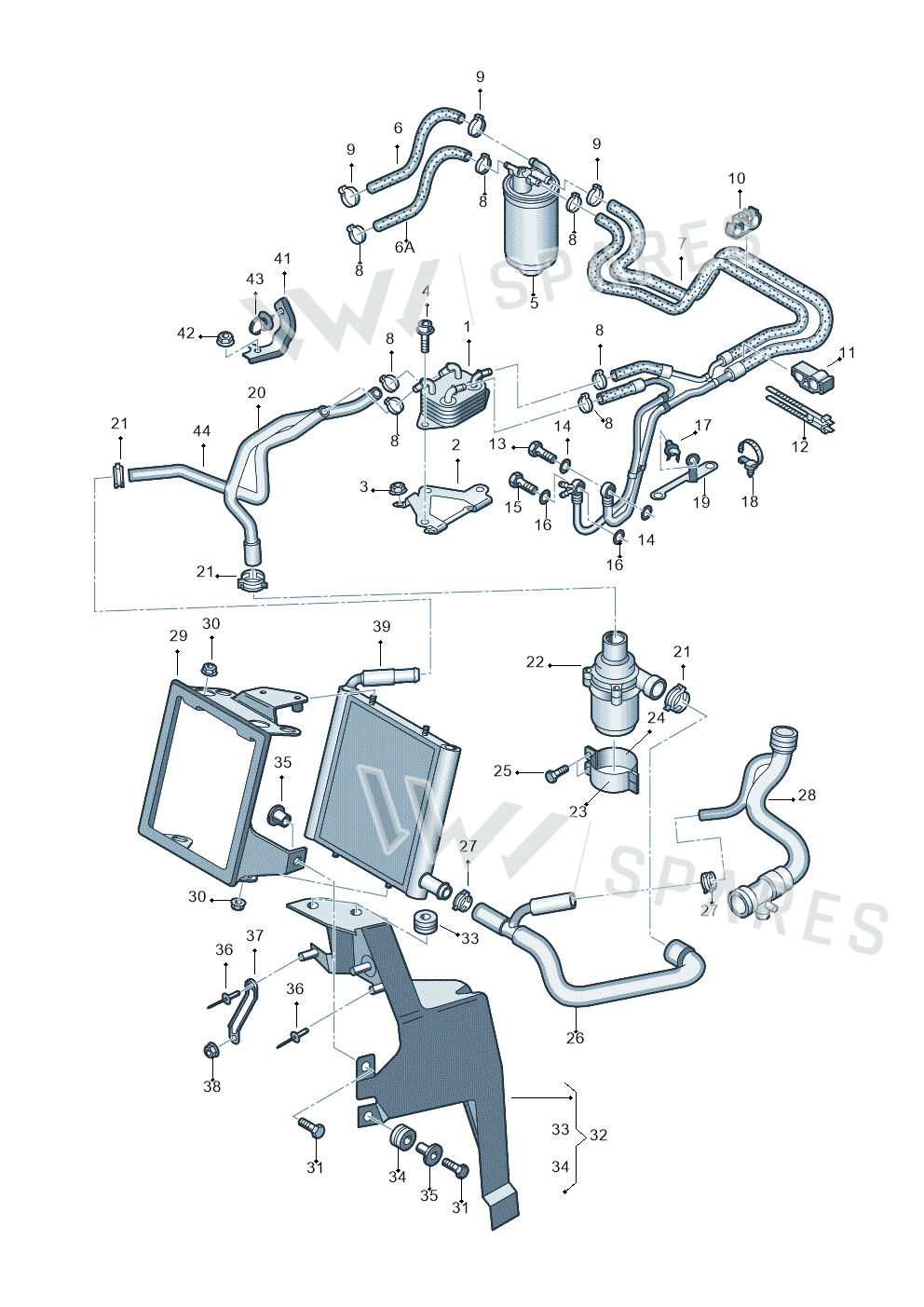

8 vehiclesSleeve — locate Sleeve in the official exploded view and explore the surrounding assembly.
Parts in this assembly40
- 1Radiator 059203493A
- 2Bracket 059203521A
- 3Collar Nut N01508213
- 4Screw N10115305
- 6Hose 4B0201541D
- 6Hose 4B0201541L
- 6AHose 4B0201543Q
- 7Pipe 059130307AL
- 7Pipe 059130307AK
- 8Clip N10255501
- 9Clamp N10197601
- 10Clip 443201449B
- 12Binder 4A0820199
- 13Screw N0210717
- 14Seal Ring N0138514
- 15Screw 059130315
- 16Seal Ring N0138495
- 17Cable Tie 3D0971838N
- 19Bracket 059130381
- 20Hose 4Z7203513A
- 21Clamp N90770201
- 21Clamp N90687001
- 22Pump 078121601A
- 23Bracket 4B0203510
- 24Bracket 4B0203510A
- 25Bolt N90523801
- 26Hose 4Z7203511
- 27Clamp N90686901
- 29Frame 4B0203519
- 30Part N10340004
- 31Bolt N0903164
- 32Bracket 4B0203509
- 33Grommet 431129669
- 34Rubber Bush 8D0121275A
- 36Pop Rivet N90826301
- 37Reinforce 078145914
- 38Collar Nut N90367503
- 39Radiator 4Z7203503
- 41Bracket 4B0203519A
- 44Hose 4Z7203527A
Vehicle fitment table8
Europe (8)
| Vehicle | Years | Pos. | Qty | PR |
|---|---|---|---|---|
| Audi A6/Wagon/quattro | 2001-2004 | 35, 10, 11 | 1 | MR1,T1K,T5T,0G7 |
| Audi A6 Allroad qu. | 2000-2005 | 35, 10 | 1 | 1E0,G0L,G0Q,G0X,T1K,T5T |
| AUDI RS4 AV. QU. | 2000-2001 | 18, 10 | 2 | |
| Audi A8 quattro | 1999-2002 | 8, 11 | 4 | |
| Audi A4/Av.qu. | 1999-2001 | 10 | 1 | |
| Audi A6/Avant | 1997-2001 | 35, 10 | 1 | |
| Audi A6/Av.qu.F4B-W-> | 1997-2001 | 35, 10, 11 | 1 | |
| Audi A4/Av.qu.F8D-W-> | 1997-1998 | 10 | 1 |
Diagrams & fitment data powered by oemdiagrams.com
Sleeve is fitted on: Audi A6/Wagon/quattro 2001-2004; Audi A6 Allroad qu. 2000-2005; AUDI RS4 AV. QU. 2000-2001; Audi A8 quattro 1999-2002; Audi A4/Av.qu. 1999-2001; Audi A6/Avant 1997-2001; Audi A6/Av.qu.F4B-W-> 1997-2001; Audi A4/Av.qu.F8D-W-> 1997-1998.
