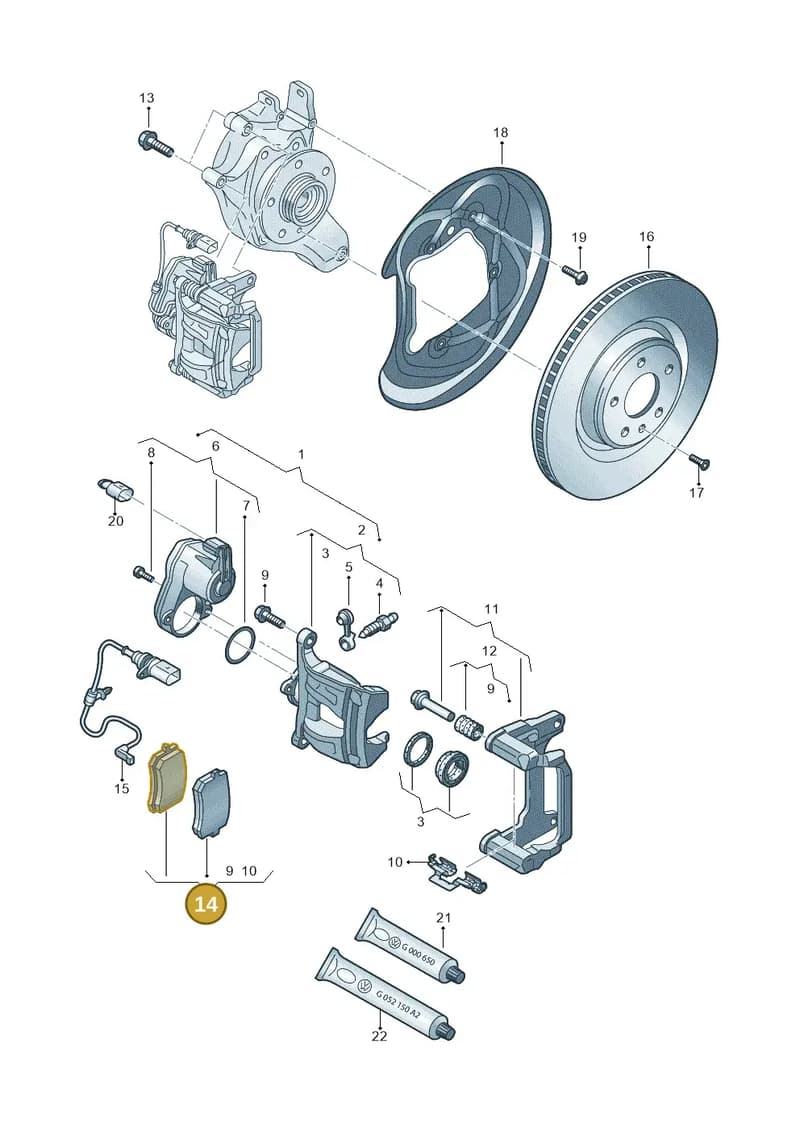

Number 14 marks the part’s position in the exploded view (Audi A5 Sportback (2016-2025)).
Product overview
Genuine OEM Audi 1 Set of Brake Pads for Disk Brake, part number 8W0698451AR. Fits Audi A5 Cabriolet (2016-2025), Audi A5 Sportback (2016-2025), Audi A4 (2015-2025). Shown as position 14 in the wheels and brakes diagram 849615600.
Catalogue entry: BR. LINING 330X22MM; also use: 8W0 615 121 E; 4K0 698 231 A; WHT 010 085 ×4.
Use with: 8W0615121E, 4K0698231A, WHT010085 (×4). Fitted with: 8W0615403N Housing, 8W0615403NSL7 GREY, 8W0615403NQB7 BLACK, 8W0615403NQC8 RED, 8W0615404N Housing, 8W0615404NSL7 GREY, 8W0615404NQB7 BLACK, 8W0615404NQC8 RED, WHT003252 BOLT, N91041702 bolt, 8W0698451AE BR. LINING, 8W0698451AQ BR. LINING.
Technical details
- Category
- Brakes
- Diagram sheet
- Audi 849615600, position 14
- ETKA group
- 6 / 15 (615)
- Manufacturer
- Audi
- Product Type
- Genuine new auto parts
Specifications
As recorded in the manufacturer’s parts catalogue for this part number.
- Dimensions
- 330x22 mm
Equipment codes
- 1KJ
PR codes identify the factory option a part belongs to; your vehicle’s are listed on the data sticker in the boot well or service booklet.
Why buy from WW Spares?
- ✓ Genuine OEM inventory sourced directly from factory networks
- ✓ Fitment support from workshop-seasoned parts specialists
- ✓ Global logistics with customs-ready documentation
Need help confirming compatibility? Talk to a specialist
Parts diagram & fitment
3 vehicles1 Set Of Brake Pads For Disk Brake — locate 8W0698451AR Audi 1 Set of Brake Pads for Disk Brake in the official exploded view and explore the surrounding assembly.
Parts in this assembly30
- 1HousingRight8W0615404N
- 1HousingLeft8W0615403N
- 3Gask Set 4N0698671A
- 4Valve 1K0615273C
- 5Part 4H0611483
- 6Servomotor 8W0998281
- 7Seal Ring 4E0615137
- 8Bolt N10285506
- 9Bolt WHT010085
- 9Bolt WHT003252
- 10Ret Spring 4K0698231A
- 10Spring 4K0615231A
- 11Plate BrakRight8W0615426H
- 11Plate BrakLeft8W0615425H
- 12Rep Set 7N0698647A
- 13Bolt N91041702
- 14Part 8W0698451AH
- 14Part 8W0698451AQ
- 14Part 8W0698451AE
- 15Sender 8W0615121E
- 16Brakedisc 8W0615601K
- 17Bolt N10648301
- 18Cov PlateLeft8W0615611E
- 18Cov PlateRight8W0615612D
- 18Cov PlateRight8W0615612E
- 18Cov PlateLeft8W0615611D
- 19Bolt N10741402
- 20Housing 1J0973722
- 21Paste G000650
- 22Grease G052150A2
Compatible / alternative parts(6)
Vehicle fitment table3
Europe (3)
| Vehicle | Years | Pos. |
|---|---|---|
| Audi A5 Sportback | 2016-2020 | 14 |
| Audi A5 Cabrio 2.0 | 2016-2018 | 14 |
| audi a4 2.0 | 2015-2019 | 14 |
Diagrams & fitment data powered by oemdiagrams.com
8W0698451AR Audi 1 Set of Brake Pads for Disk Brake is fitted on: Audi A5 Sportback 2016-2020; Audi A5 Cabrio 2.0 2016-2018; audi a4 2.0 2015-2019.
