8W1816720 Refrigerant Line
- 8W1816720This pageNot stocked
Dec 2018 - 8W1816720GCurrent number
Special order item. Delivery time may vary.
About This Part
Superseded part number
This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VOLKSWAGEN is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

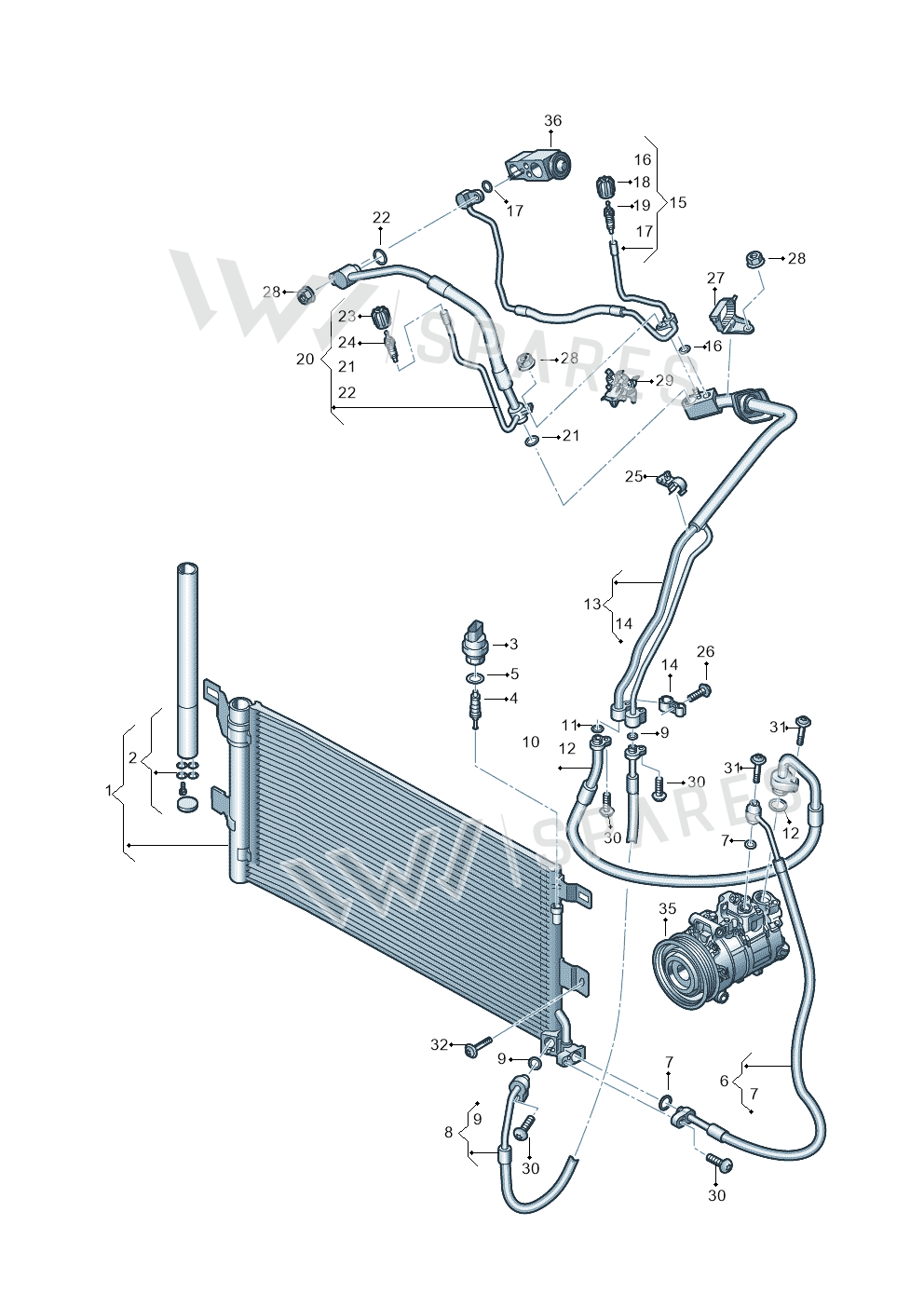

5 vehiclesRefrigerant Line — locate Refrigerant Line in the official exploded view and explore the surrounding assembly.
Parts in this assembly40
- 1A C Conden 8W0816411AB
- 1Condenser 8W0816421N
- 1Condenser 8W0816421T
- 1Condenser 8W0816421K
- 2Insert 5Q0298403C
- 3Sender 4H0959126C
- 3Part 4H0959126B
- 4Part 8A0820855AA
- 5Seal Ring 7H0820896
- 6Line 8W0816721BE
- 7Seal Ring 4E0260749A
- 8Line 8W0816741AN
- 9Seal Ring 3D0260749C
- 10Line 8W0816743BQ
- 11Seal Ring 4E0260749B
- 12Seal Ring 8E0260749C
- 13Pipe 8W6816738B
- 14Bracket 8W0260759A
- 15Line 8W2816720
- 15Line 8W2820720D
- 15Line 8W1820720F
- 17Seal Ring 4D0260749B
- 18Part 5Q0816581
- 18Part 3C0820581
- 19Valve 8E0820855
- 20Line 8W1816740
- 20Line 8W2816740
- 20Line 8W2820740D
- 20Line 8W1820740F
- 21Seal Ring 4E0260749C
- 23Part 5Q0816231
- 23Part 3C0820231
- 25Bracket 8W0820769C
- 26Bolt N91257001
- 27Bracket 8W0820769B
- 28Collar Nut N01508210
- 29Support 8W0816205D
- 30Bolt N10347204
- 31Screw N10414402
- 32Bolt WHT005232
Vehicle fitment table5
Europe (5)
| Vehicle | Years | Pos. | Qty | Remark |
|---|---|---|---|---|
| Audi RS4 Avant | 2017- | 15 | 1 | PR:KK3 |
| Audi RS5 Sportback | 2017- | 15 | 1 | PR:KK3 |
| Audi A5 Sportback | 2016-2020 | 15 | 1 | |
| Audi A5 Cabrio 2.0 | 2016-2018 | 15 | 1 | |
| audi a4 2.0 | 2015-2019 | 15 | 1 | PR:9AK,9AQ |
Diagrams & fitment data powered by oemdiagrams.com
Refrigerant Line is fitted on: Audi RS4 Avant 2017-; Audi RS5 Sportback 2017-; Audi A5 Sportback 2016-2020; Audi A5 Cabrio 2.0 2016-2018; audi a4 2.0 2015-2019.
