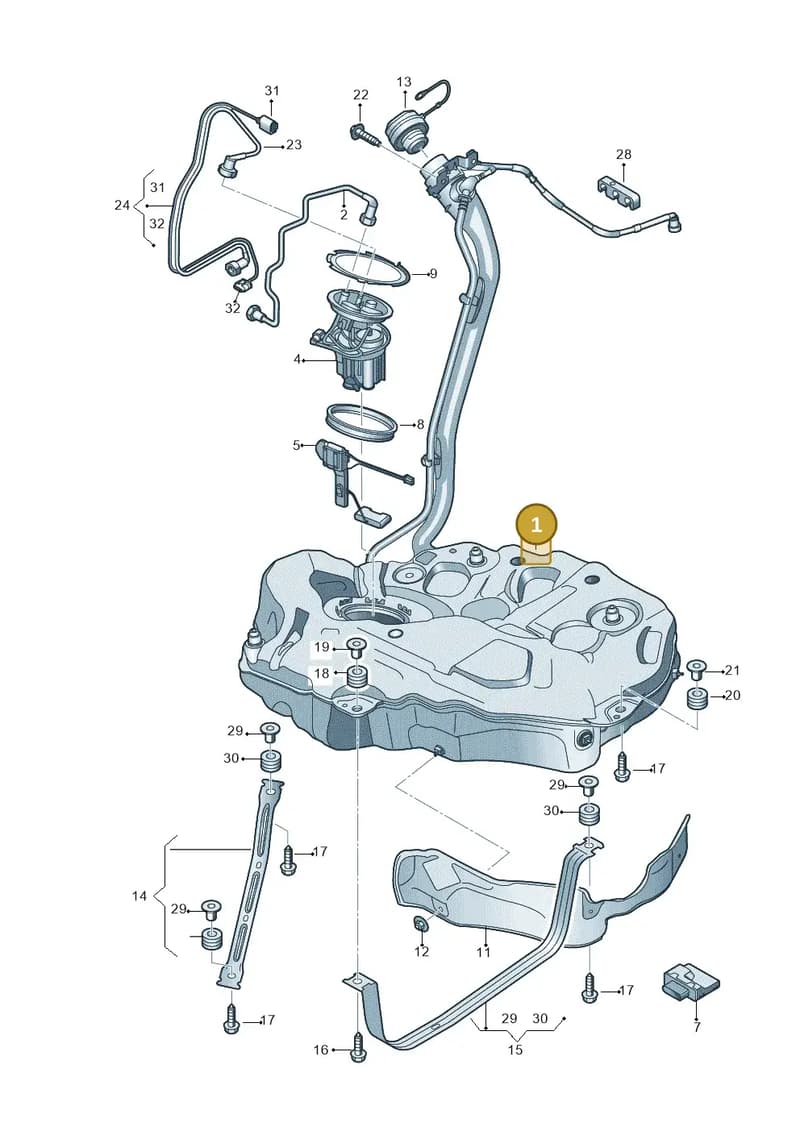

Number 1 marks the part’s position in the exploded view (Audi A5 Sportback (2016-2025)).
Product overview
Genuine OEM Audi Fuel Tank, part number 8W6201060AK. Fits Audi A5 Sportback (2016-2025). Shown as position 1 in the fuel, exhaust and cooling diagram 897201000. Equipment code: 2G1.
Catalogue entry: CONTAINER.
Fitted with: 8W6201060AP CONTAINER, 8W6201060AM CONTAINER, 8W6201060AL CONTAINER, 1K0919133D seal ring, 1K0201375 Union nut, N90708803 speed nut, N91165402 Screw, N91243601 SCREW, 8K0201840B RUBB. BUSH, 8K0201693B BUSH, 8K0201840D RUBB. BUSH, 8K0201693D BUSH.
Technical details
- Category
- Fuel System
- Diagram sheet
- Audi 897201000, position 1
- ETKA group
- 2 / 01 (201)
- Manufacturer
- Audi
- Product Type
- Genuine new auto parts
Specifications
As recorded in the manufacturer’s parts catalogue for this part number.
Equipment codes
- 2G1
- 9M0
- 7MM
- 7MW
- 7GH
- 7MV
PR codes identify the factory option a part belongs to; your vehicle’s are listed on the data sticker in the boot well or service booklet.
Why buy from WW Spares?
- ✓ Genuine OEM inventory sourced directly from factory networks
- ✓ Fitment support from workshop-seasoned parts specialists
- ✓ Global logistics with customs-ready documentation
Need help confirming compatibility? Talk to a specialist
Parts diagram & fitment
1 vehicleFuel Tank — locate 8W6201060AK Audi Fuel Tank in the official exploded view and explore the surrounding assembly.
Parts in this assembly43
- 1Container 8W6201060AL
- 1Container 8W6201060AM
- 1Container 8W6201060AP
- 2Fuel Line 8W0201220
- 2Fuel Line 8W0201220A
- 4Module 8W0919087M
- 4Module 8W0919087L
- 5Sender 8W0919047E
- 5Sender 8W0919047
- 7Control Unit 4M0906093H
- 7Control Unit 4M0906093K
- 7Control Unit 4M0906093L
- 7Control Unit 4M0906093M
- 7Control Unit 4M0906093N
- 7Control Unit 8W0906093D
- 7Control Unit 8W0906093E
- 7Control Unit 8W0906093F
- 7Control Unit 8W0906093G
- 7Control Unit 8W0906093C
- 8Seal Ring 1K0919133D
- 9Part 1K0201375
- 11Heat Sh 8W0201308AF
- 11Heat Sh 8W0201308K
- 12Part N90708803
- 13Ap&cap With Retaining Strap For Fuel Tank Cap 4G0201550L
- 13Ap&cap With Retaining Strap For Fuel Tank Cap 5WA201550AJ
- 13Ap&cap With Retaining Strap For Fuel Tank Cap 5WA201550B
- 14Strap 8W0201653
- 15Strap 8W0201653D
- 16Screw N91165402
- 17Screw N91243601
- 18Rubber Bush 8K0201840B
- 19Bush 8K0201693B
- 20Rubber Bush 8K0201840D
- 21Bush 8K0201693D
- 22Screw N91257901
- 23Fuel Line 8W0261238A
- 24Wiring Set 8W0971767E
- 28Clip 8W0201449G
- 29Rubber Bush 8W0201840
- 30Bush 8W0201693
- 31Housing 4G0973813C
- 32Housing 4F0973702
Vehicle fitment table1
Europe (1)
| Vehicle | Years | Pos. | Qty |
|---|---|---|---|
| Audi A5 Sportback | 2016-2020 | 1 | 1 |
Diagrams & fitment data powered by oemdiagrams.com
8W6201060AK Audi Fuel Tank is fitted on: Audi A5 Sportback 2016-2020.
