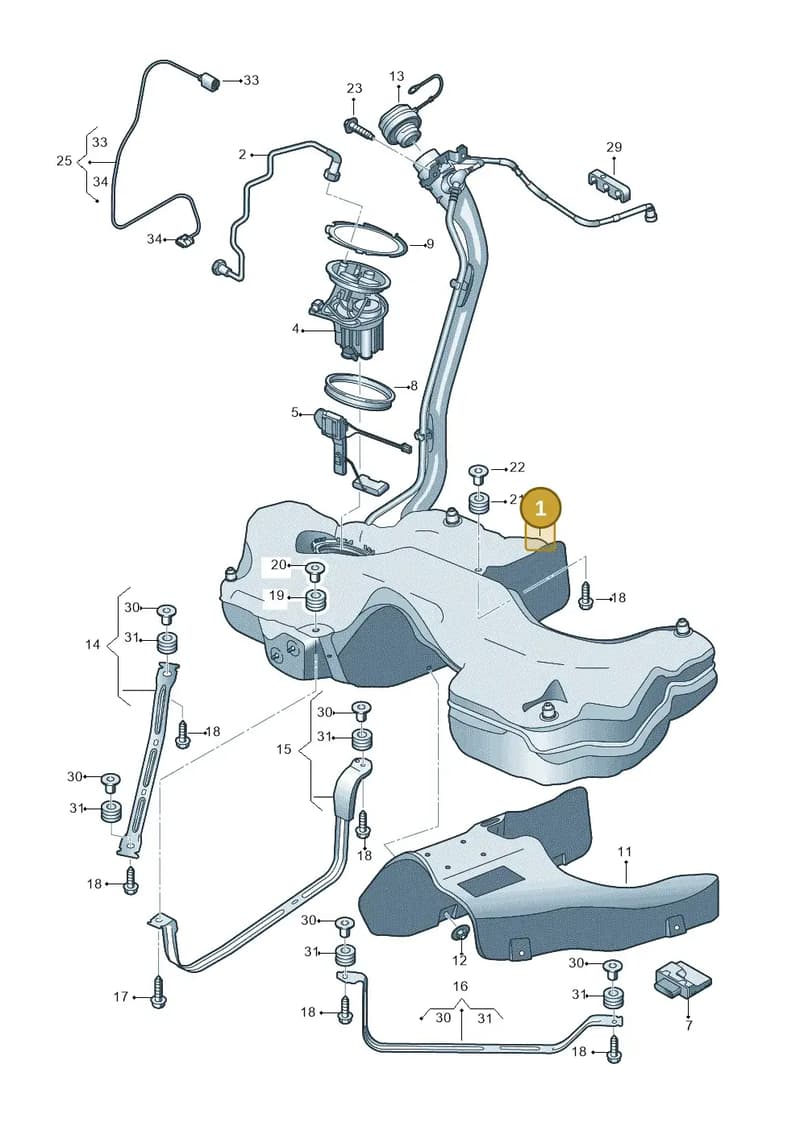

Number 1 marks the part’s position in the exploded view (Audi A5 Cabriolet (2016-2025)).
Product overview
Genuine OEM Audi Fuel Tank, part number 8W7201060L. Fits Audi A5 Cabriolet (2016-2025). Shown as position 1 in the fuel, exhaust and cooling diagram 897201100.
Catalogue entry: CONTAINER.
Fitted with: 8W7201060E CONTAINER, 8W7201060AB CONTAINER, 8W7201060T CONTAINER, 1K0919133D seal ring, 1K0201375 Union nut, N91068501 panel nut, N91165402 Screw, N91243601 SCREW, N91257901 Screw.
Technical details
- Category
- Fuel System
- Diagram sheet
- Audi 897201100, position 1
- ETKA group
- 2 / 01 (201)
- Manufacturer
- Audi
- Product Type
- Genuine new auto parts
Why buy from WW Spares?
- ✓ Genuine OEM inventory sourced directly from factory networks
- ✓ Fitment support from workshop-seasoned parts specialists
- ✓ Global logistics with customs-ready documentation
Need help confirming compatibility? Talk to a specialist
Parts diagram & fitment
1 vehicleFuel Tank — locate 8W7201060L Audi Fuel Tank in the official exploded view and explore the surrounding assembly.
Parts in this assembly41
- 1Container 8W7201060AB
- 1Container 8W7201060T
- 1Container 8W7201060E
- 2Fuel Line 8W0201220
- 2Fuel Line 8W0201220A
- 4Module 8W0919087AA
- 5Sender 8W0919047E
- 5Sender 8W0919047B
- 7Control Unit 4M0906093K
- 7Control Unit 4M0906093L
- 7Control Unit 4M0906093M
- 7Control Unit 4M0906093N
- 7Control Unit 8W0906093E
- 7Control Unit 8W0906093F
- 7Control Unit 8W0906093G
- 7Control Unit 8W0906093D
- 8Seal Ring 1K0919133D
- 9Part 1K0201375
- 11Heat Sh 8W0201308AE
- 11Heat Sh 8W0201308AH
- 11Heat Sh 8W0201308T
- 11Heat Sh 8W0201308L
- 12Part N91068501
- 13Ap&cap With Retaining Strap For Fuel Tank Cap 4G0201550L
- 13Ap&cap With Retaining Strap For Fuel Tank Cap 5WA201550AJ
- 13Ap&cap With Retaining Strap For Fuel Tank Cap 5WA201550B
- 14Strap 8W0201653
- 15Strap 8W0201653E
- 16Strap 8W0201653K
- 16Strap 8W0201653G
- 17Screw N91165402
- 18Screw N91243601
- 19Rubber Bush 8K0201840B
- 20Bush 8K0201693B
- 21Rubber Bush 8K0201840D
- 22Bush 8K0201693D
- 23Bolt N10799502
- 23Screw N91257901
- 29Clip 8W0201449G
- 30Bush 8W0201693
- 31Rubber Bush 8W0201840
Vehicle fitment table1
Europe (1)
| Vehicle | Years | Pos. | Qty |
|---|---|---|---|
| Audi A5 Cabrio 2.0 | 2016-2018 | 1 | 1 |
The manufacturer’s catalogue lists this part number as fitted until 30 July 2018; later builds may use a superseding number.
Diagrams & fitment data powered by oemdiagrams.com
8W7201060L Audi Fuel Tank is fitted on: Audi A5 Cabrio 2.0 2016-2018.
