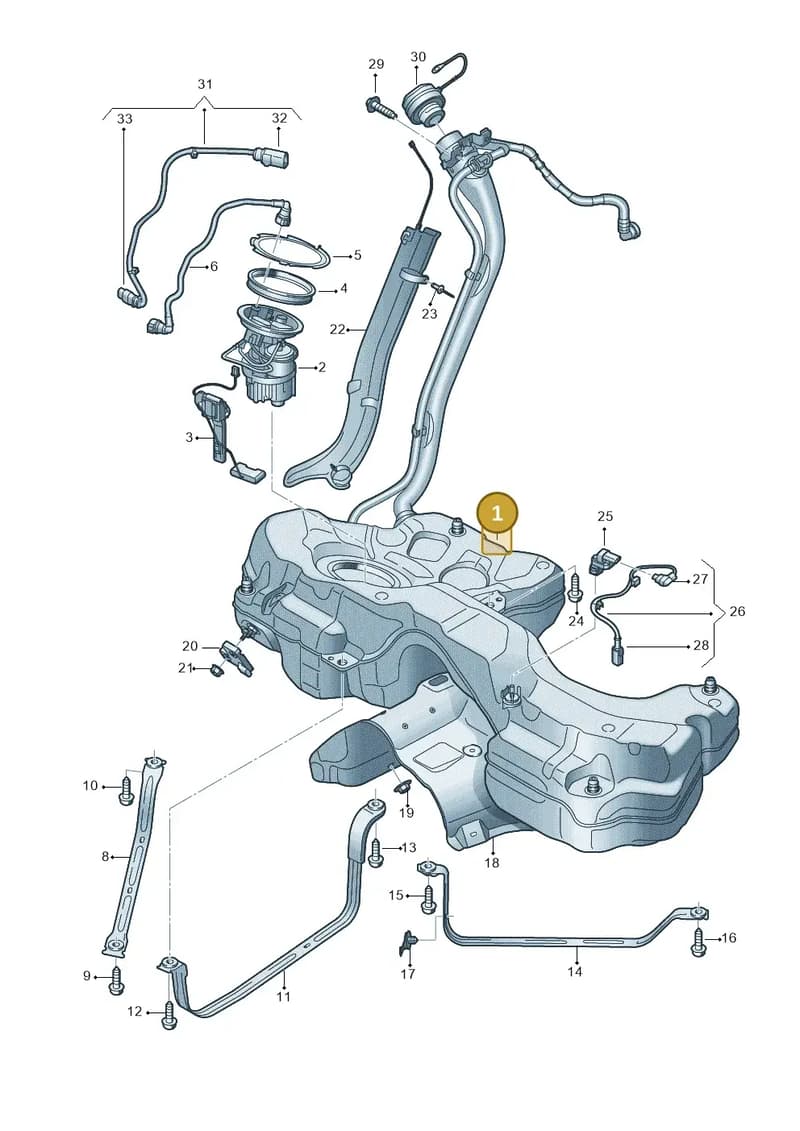

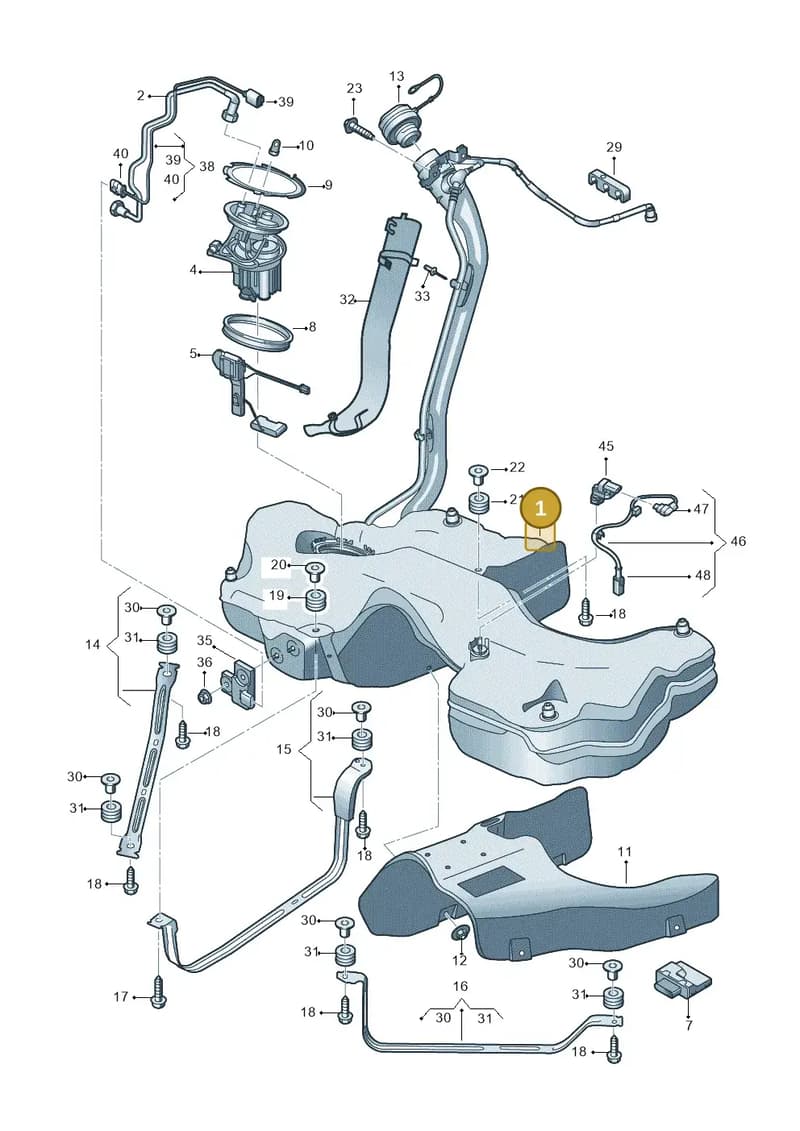

Number 1 marks the part’s position in this exploded view (Audi A5 Cabriolet (2016-2025)).
Other diagrams in the gallery may use a different number for the same part.
Product overview
Genuine OEM Audi Fuel Tank, part number 8W7201060M. Fits Audi A5 Cabriolet (2016-2025). Shown as position 1 in the fuel, exhaust and cooling diagram 897201020.
Catalogue entry: CONTAINER.
Fitted with: 8W7201060F CONTAINER, 8W7201060AC CONTAINER, 8W7201060AE CONTAINER, 1J0919133B seal ring, 1K0201375 Union nut, N91068501 panel nut, N91165402 Screw, N91243601 SCREW, 8K0201840B RUBB. BUSH, 8K0201693B BUSH, 8K0201840D RUBB. BUSH, 8K0201693D BUSH.
Technical details
- Category
- Fuel System
- Diagram sheet
- Audi 897201020, position 1
- ETKA group
- 2 / 01 (201)
- Manufacturer
- Audi
- Product Type
- Genuine new auto parts
Why buy from WW Spares?
- ✓ Genuine OEM inventory sourced directly from factory networks
- ✓ Fitment support from workshop-seasoned parts specialists
- ✓ Global logistics with customs-ready documentation
Need help confirming compatibility? Talk to a specialist
Parts diagram & fitment
1 vehicleFuel Tank — locate 8W7201060M Audi Fuel Tank in the official exploded view and explore the surrounding assembly.
Parts in this assembly48
- 1Container 8W7201060AC
- 1Container 8W7201060AE
- 1Container 8W7201060F
- 2Fuel Line 8W0201220A
- 4Module 8W0919087AA
- 5Sender 8W0919047F
- 5Sender 8W0919047C
- 7Control Unit 4M0906093K
- 7Control Unit 4M0906093L
- 7Control Unit 4M0906093M
- 7Control Unit 4M0906093N
- 7Control Unit 8W0906093E
- 7Control Unit 8W0906093F
- 7Control Unit 8W0906093G
- 7Control Unit 8W0906093D
- 8Seal Ring 1J0919133B
- 9Part 1K0201375
- 11Heat Sh 8W0201308AE
- 11Heat Sh 8W0201308AH
- 11Heat Sh 8W0201308T
- 12Part N91068501
- 13Ap&cap With Retaining Strap For Fuel Tank Cap 5WA201550BD
- 13Ap&cap With Retaining Strap For Fuel Tank Cap 5WA201550P
- 13Ap&cap With Retaining Strap For Fuel Tank Cap 8W0201550D
- 14Strap 8W0201653
- 15Strap 8W0201653E
- 16Strap 8W0201653K
- 16Strap 8W0201653G
- 17Screw N91165402
- 18Screw N91243601
- 19Rubber Bush 8K0201840B
- 20Bush 8K0201693B
- 21Rubber Bush 8K0201840D
- 22Bush 8K0201693D
- 23Bolt N10799502
- 23Screw N91257901
- 29Clip 8W0201449H
- 30Bush 8W0201693
- 31Rubber Bush 8W0201840
- 32Prot Plate 8W7201974
- 33Pop Rivet N91017701
- 35Control Unit 8K0906651D
- 35Control Unit 8W0906651B
- 35Control Unit 8W0906651C
- 35Control Unit 8K0906651C
- 36Part N90495301
- 38Wiring Set 8W0971745A
- 39Housing 4F0973705
Vehicle fitment table1
Europe (1)
| Vehicle | Years | Pos. | Qty |
|---|---|---|---|
| Audi A5 Cabrio 2.0 | 2016-2018 | 1 | 1 |
The manufacturer’s catalogue lists this part number as fitted until 8 July 2019; later builds may use a superseding number.
Diagrams & fitment data powered by oemdiagrams.com
8W7201060M Audi Fuel Tank is fitted on: Audi A5 Cabrio 2.0 2016-2018.
