8Z0941824C Fuse Box With Fuse
- 8Z0941824ANot stocked
May 2002 - 8Z0941824CThis pageNot stocked
Sep 2012
Special order item. Delivery time may vary.
About This Part
Superseded part number
This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for SEAT is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

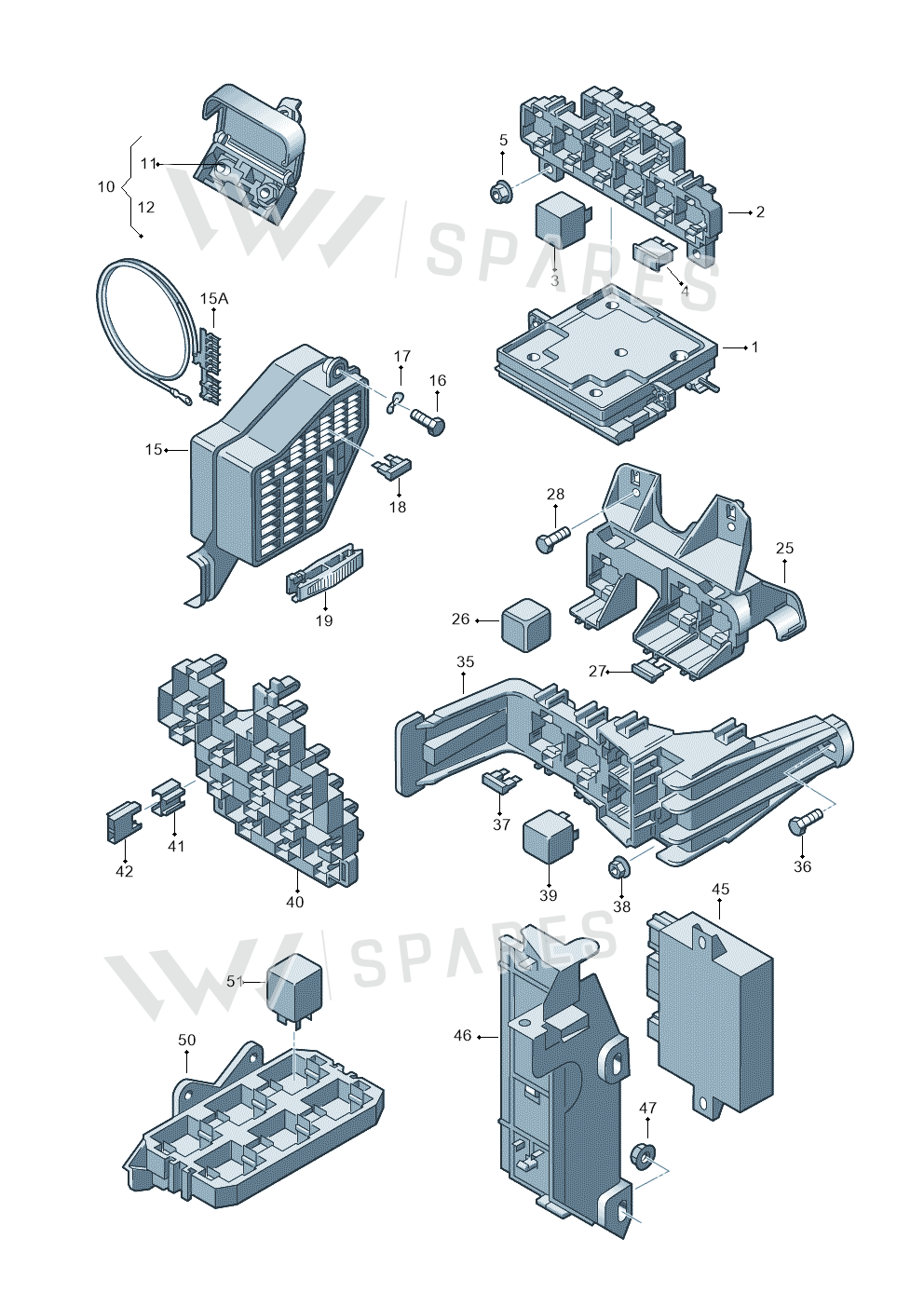

14 vehiclesFuse Box With Fuse — locate Fuse Box With Fuse in the official exploded view and explore the surrounding assembly.
Parts in this assembly48
- 1Control Unit 8E0907279D
- 1Control Unit 8E0907279F
- 1Control Unit 8E0907279G
- 2Plate 8E0937503
- 3Part 7M0951253A
- 3Part 8E0951253
- 3Part 8K0951253
- 3Part 191906383C
- 3Control Unit 8E0907307
- 3Control Unit 8E0907307A
- 4Fuse N01713111
- 4Fuse N01713120
- 4Fuse N10251903
- 4Fuse 443937105A
- 5Ut"hex Nut Self-locking With Washer Hex Nut N90286703
- 11Fuse N10424906
- 12Collar Nut N90175203
- 15Bracket 8D2941824
- 15Bracket 8D1941824
- 15AContact 1J2998824
- 15AContact 1J1998824
- 16Bolt N0102139
- 17Washer N0121301
- 18Fuse 8L0998131
- 18Fuse N01713112
- 18Fuse N01713113
- 18Fuse N01713114
- 18Fuse N01713124
- 18Fuse N10261503
- 18Fuse N10261501
- 19Tool 8D0941802
- 25Plate 8E2937503
- 25Plate 8E1937503
- 27Fuse N10251901
- 27Fuse N10251902
- 28Bolt N90468402
- 35Plate 8E0937503B
- 36Screw N01396921
- 37Fuse N10251904
- 39Part 7M0951253
- 39Relay 431951253F
- 40Bracket 8D0937545G
- 41Bracket 8D0972081
- 42Bracket 4A0937530
- 45Control Unit 8E0907383C
- 46Retainer 8E0907297B
- 47Part N90132606
- 50Plate 4A0937503
Vehicle fitment table16
Europe (11)
| Vehicle | Years | Pos. | Qty | PR |
|---|---|---|---|---|
| Exeo ST Reference | 2008-2011 | 10 | 1 | L0L |
| Audi RS4 Cabrio qu. 08> | 2007- | 10 | 1 | L0L |
| Audi RS4 qu. 07> | 2006- | 10 | 1 | L0L |
| Audi A4/S4 Cabrio./qu. 07> | 2006- | 10 | 1 | L0L |
| Audi A4/S4/Av./qu. 05> | 2005- | 10 | 1 | L0L |
| Audi A4/S4 Cabrio./qu. | 2002-2006 | 10 | 1 | L0L |
| PASSAT/4MOTION/W8 | 2002-2005 | 31, 14 | 1 | |
| Audi A4/S4/Av./qu. | 2001-2004 | 10, 3 | 1 | |
| Audi A6/Wagon/quattro | 2001-2004 | 23 | 1 | L0L |
| AUDI A2 | 2000-2005 | 1 | 1 | |
| Passat/4Motion/W8 | 2000-2002 | 31 | 1 | T9H |
Other markets (2)
| Vehicle | Years | Pos. | Qty | PR |
|---|---|---|---|---|
| AUDI A4 "CN."06> | 2005- | 10 | 1 | |
| AUDI A4/AV./QU. "CN"03>05 | 2003-2005 | 10, 3 |
Platform / generic diagrams (1)
| Vehicle | Years | Pos. | Qty | PR |
|---|---|---|---|---|
| 3B0 platform | 31 |
Listed without a diagram position (2)
| Vehicle | Years | Pos. | Qty | PR |
|---|---|---|---|---|
| Audi RS6 qu. | 2003-2004 | 1 | L0L | |
| Audi A6 Allroad qu. | 2000-2005 |
Diagrams & fitment data powered by oemdiagrams.com
Fuse Box With Fuse is fitted on: Exeo ST Reference 2008-2011; Audi RS4 Cabrio qu. 08> 2007-; Audi RS4 qu. 07> 2006-; Audi A4/S4 Cabrio./qu. 07> 2006-; Audi A4/S4/Av./qu. 05> 2005-; Audi A4/S4 Cabrio./qu. 2002-2006; PASSAT/4MOTION/W8 2002-2005; Audi A4/S4/Av./qu. 2001-2004; Audi A6/Wagon/quattro 2001-2004; AUDI A2 2000-2005; Passat/4Motion/W8 2000-2002; AUDI A4 "CN."06> 2005-; AUDI A4/AV./QU. "CN"03>05 2003-2005; 3B0 platform.
