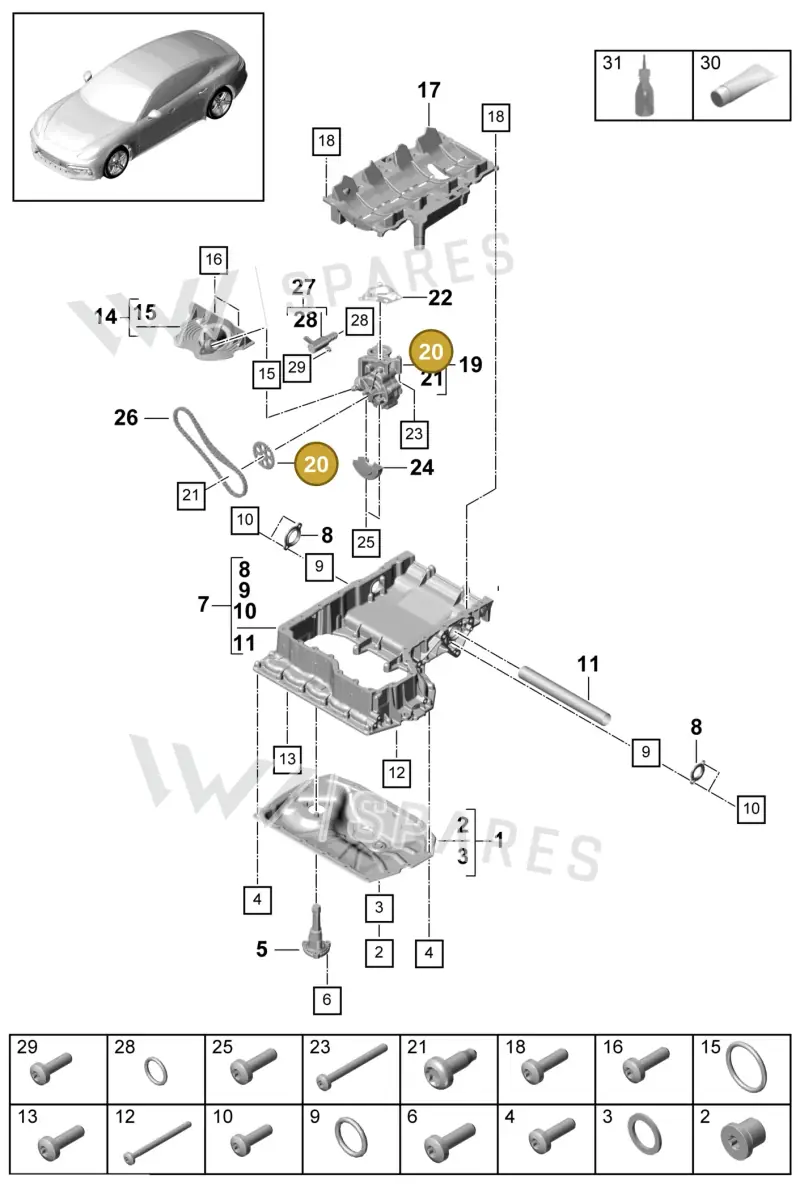

Number 20 marks the part’s position in the exploded view (Porsche Panamera (2016-2020)).
Product overview
Genuine OEM Porsche Oil Pump, part number 9A711510320. Fits Porsche Panamera (2016-2020). Shown as position 20 in the engine diagram P4910402.
Catalogue entry: OIL PUMP.
Technical details
- Category
- Engine
- Diagram sheet
- Porsche p49104020, position 20
- ETKA group
- 1 / 04 (104)
- Manufacturer
- Porsche
- Product Type
- Genuine new auto parts
Why buy from WW Spares?
- ✓ Genuine OEM inventory sourced directly from factory networks
- ✓ Fitment support from workshop-seasoned parts specialists
- ✓ Global logistics with customs-ready documentation
Need help confirming compatibility? Talk to a specialist
Parts diagram & fitment
1 vehicleOil Pump — locate 9A711510320 Porsche Oil Pump in the official exploded view and explore the surrounding assembly.
Parts in this assembly48
- 1Part 9A710360200
- 1Part 9A710360210
- 2Screw PAF911679
- 2Part N91167901
- 3Seal Ring N0138498
- 3Seal Ring PAF013849
- 3Seal Ring N0138494
- 4Bolt N10124306
- 4Bolt N91168702
- 5Oel Sensor PAB907637A
- 5Oel Sensor 9A790766010
- 6Seal Ring PAB103196D
- 7Bolt N10413405
- 7Bolt N91127902
- 8Part 9A7103603
- 8Part 9A710380302
- 8Part PAB103603A
- 8Part 9A710360300
- 8Part 9A710360310
- 9Cover 9A710370810
- 9Bolt N91131001
- 10Bolt N10700201
- 10Seal Ring N90713203
- 11Bolt N10448504
- 12Pipe 9A710368900
- 13Seal Ring N90713202
- 15Manifold 9A711515501
- 15Sleeve 9A711514300
- 15Part 9A711515500
- 16Oil Ba Pl 9A711528710
- 16Seal Ring N91069701
- 17Sleeve 95810113900
- 18Oil Ba Pl 9A711528900
- 18Part N10156206
- 18Bolt N91043602
- 19Part N10196103
- 20Oil Pump PAB11510300
- 20Oil Pump 9A711510330
- 21Chn Sprckt 9A711512100
- 21Chn Sprckt 9A711512110
- 22Screw 9A700806100
- 23Seal 9A710316100
- 23Seal 9A710316110
- 24Screw N10562602
- 24Screw N10562603
- 25Prot Plate 9A711513200
- 26Manifold 9A711515510
- 28Valve 9A711539300
Vehicle fitment table1
Europe (1)
| Vehicle | Years | Pos. | Qty |
|---|---|---|---|
| Panamera 4 Hybrid | 2016-2020 | 20 | 1 |
The manufacturer’s catalogue lists this part number as fitted until 25 July 2018; later builds may use a superseding number.
Diagrams & fitment data powered by oemdiagrams.com
9A711510320 Porsche Oil Pump is fitted on: Panamera 4 Hybrid 2016-2020.
