Product overview
Genuine OEM Audi A/C Suction Line, part number 9J1816197E. This critical component transports refrigerant from the evaporator to the compressor, playing a vital role in the vehicle's air conditioning system. It is a flexible hose, weighing approximately 0.432 kg with dimensions of 0.33m length, 0.21m width, and 0.07m height. Choosing a genuine OEM suction line ensures precise fitment, correct refrigerant flow characteristics, and the durability required to withstand system pressures and temperature fluctuations, preventing leaks and maintaining A/C performance.
Catalogue entry: PIPE KK3,9M0.
Technical details
- Category
- Heating & A/C
- Customs (HS) code
- 84099100
- Manufacturer
- Audi
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 33 × 21 × 7 cm
- Shipping weight
- 0.43 kg
Specifications
As recorded in the manufacturer’s parts catalogue for this part number.
Equipment codes
- 9M0
PR codes identify the factory option a part belongs to; your vehicle’s are listed on the data sticker in the boot well or service booklet.
Why buy from WW Spares?
- ✓ Genuine OEM inventory sourced directly from factory networks
- ✓ Fitment support from workshop-seasoned parts specialists
- ✓ Global logistics with customs-ready documentation
Need help confirming compatibility? Talk to a specialist

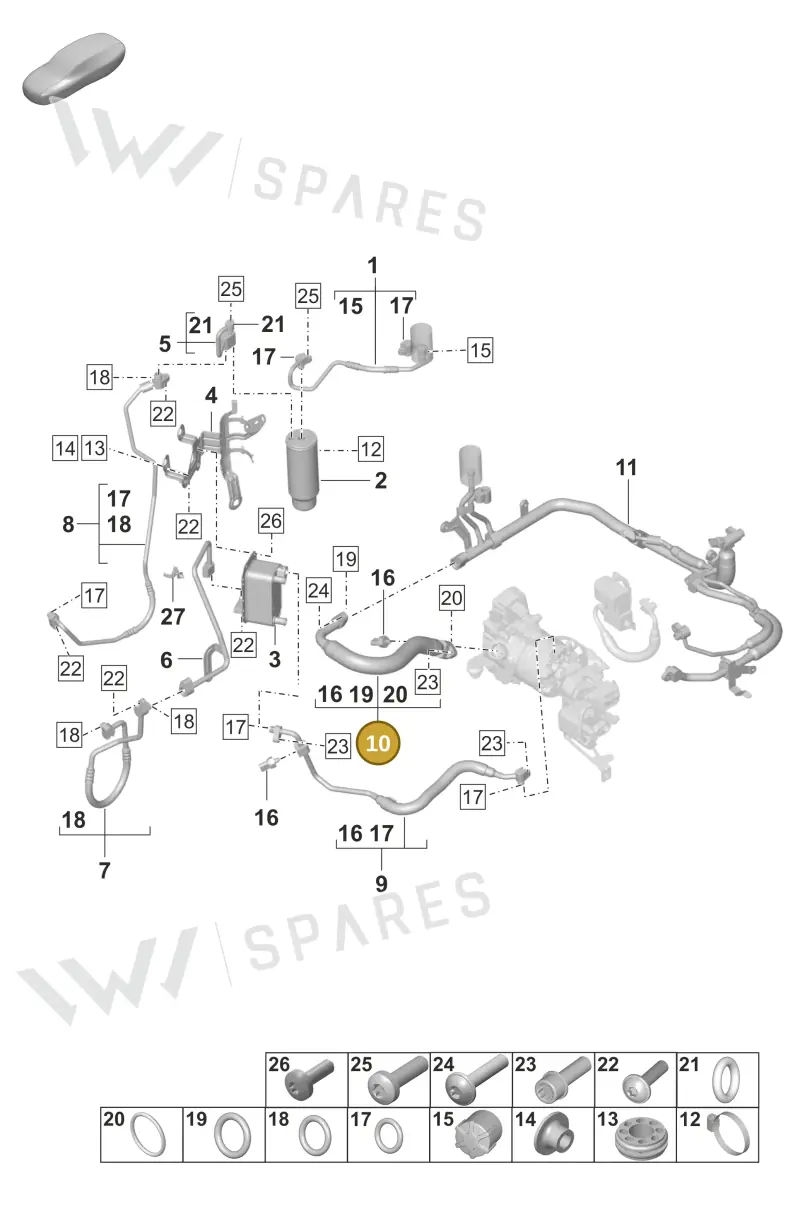

Parts diagram & fitment
2 vehiclesSuction Line — locate 9J1816197E Audi A/C Suction Line | Genuine OEM in the official exploded view and explore the surrounding assembly.
Superseded by 9J1816197G — the later replacement part.
This part is marked discontinued by the manufacturer (since 2023-02-01); contact us to check current availability.
Parts in this assembly28
- 1Line 9J1820033A
- 2Bolt N10700201
- 4Valve 8E0820855
- 5Seal Ring 4E0260749A
- 6Drier 992820077A
- 7Clamp N0245226
- 10Capacitor 9J1816412
- 12Bolt N91096801
- 13Bracket 9J1816594B
- 14Grommet 046131887
- 15Spacer 052129734
- 16Bolt N10632102
- 20Line 9J1820721A
- 21Seal Ring 4D0260749B
- 23Line 9J1820720A
- 30Line 9J1820730A
- 31Seal Ring 4E0260749B
- 33Line 9J1820739B
- 36Bracket 9J1820137
- 40Part 9J1820249K
- 40Part 9J1820249L
- 42Part 4M0959603E
- 44Screw N10414402
- 44Screw N10720901
- 50Part 9J1816197G
- 51Seal Ring 4E0260749C
- 52Seal Ring 8E0260749C
- 56Screw N10738801
Vehicle fitment table2
Europe (2)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| Audi RS e-tron GT | 2020-2020 | 50 | |||
| Taycan Sport Turismo | 2019-2024 | 10 | 1 | KK3,9M0 | 9M0 |
Diagrams & fitment data powered by oemdiagrams.com
9J1816197E Audi A/C Suction Line | Genuine OEM is fitted on: Audi RS e-tron GT 2020-2020; Taycan Sport Turismo 2019-2024.
