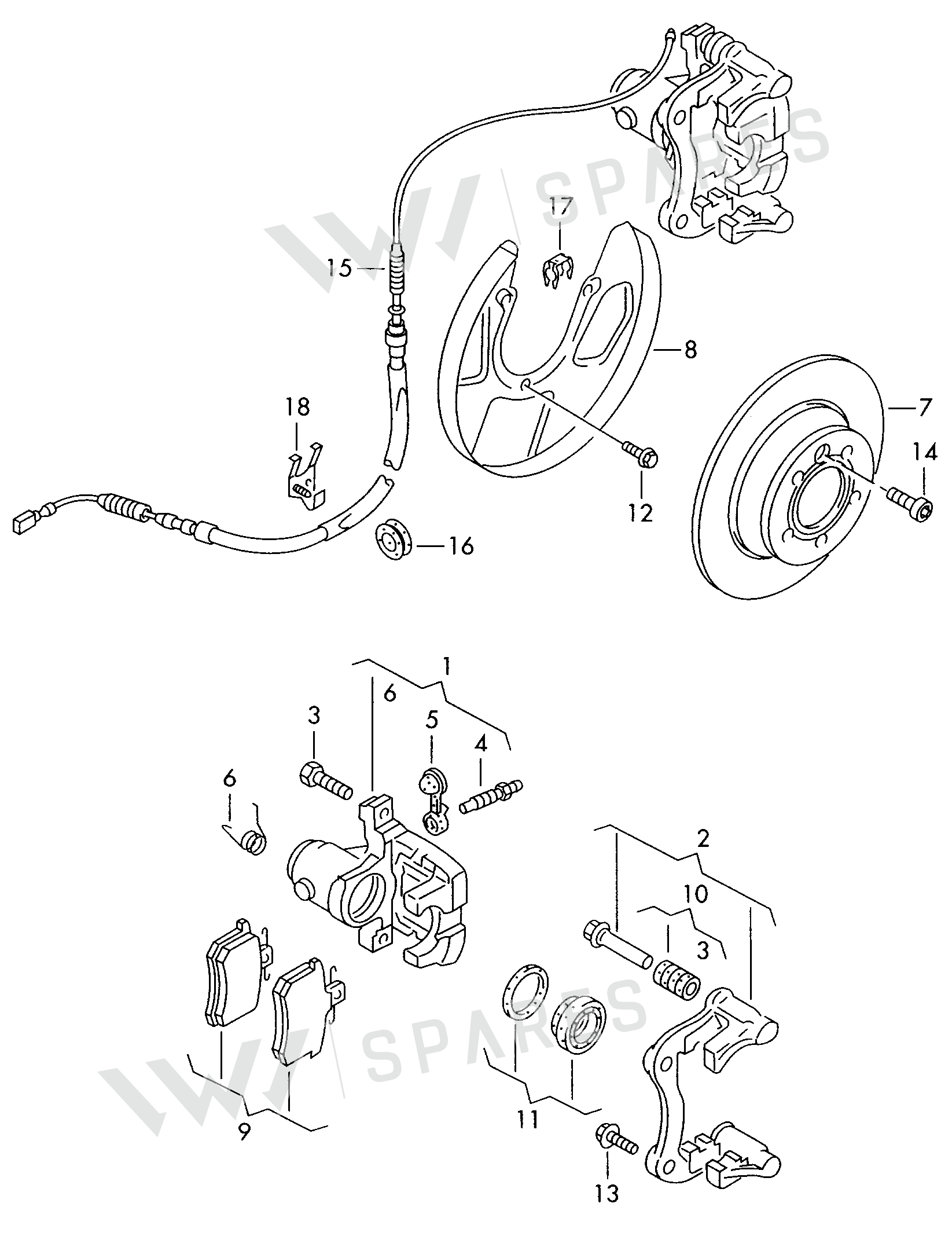

Hexagon Bolt exploded parts diagram — ALHAMBRA · 1996-2000, position 12
Exploded view
ALHAMBRA · 1996-2000 · position 12Full diagram ↓
N01021010

N01021010 Hexagon Bolt

£0.05
£0.04 excl. VAT
Supersession road5 numbers since 1999
  1. N10100501Not stocked
  2. N0102107Not stocked
    Mar 1999
  3. N01021010This pageNot stocked
    Jun 2000
  4. N90529301Not stocked
    Feb 2009
  5. N90529302Current number
Current part numberN90529302What the manufacturer supplies todayOrder
Availability: No longer supplied under this number

Special order item. Delivery time may vary.

About This Part

Superseded part number

This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.

Order Processing & Delivery

This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VAG is typically 3–8 business days before dispatch.

Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.

* Delivery times are estimates and may vary based on manufacturer availability and your location.

Verify Vehicle Fitment

To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.

Contact us with your VIN
Genuine OEM Parts
Direct from manufacturer
Secure Ordering
Safe and protected checkout

Parts diagram & fitment

18 vehicles

Hexagon Bolt — locate Hexagon Bolt in the official exploded view and explore the surrounding assembly.

Parts in this assembly22
Vehicle fitment table19

Europe (11)

VehicleYearsPos.QtyRemark
ALHAMBRA1996-200012, 56
SHARAN/SYNCRO1995-200012, 56
L801995-199924, 10, 144
TRANSPORTER SYNCRO1995-199513, 213
POLO1994-19996, 262
GOLF/Ecomatic1991-19946, 21, 72
Favorit/Forman/Pickup1987-199544
CADDY1982-199219, 4, 4C3
Dasher1977-1980176
Skoda 105/..1976-198974A
Type 21967-1979164

Other markets (7)

VehicleYearsPos.QtyRemark
AUDI A6L CHINA1999-2005142
Eurovan1996-199713, 213
TYPE 2 "ZA"1995-200316, 132
AUDI 200 CHINA1995-199914, 122
Eurovan 951994-199527, 263
Golf/Jetta "USA","MEX"93>961992-19967, 11X
JETTA (FAW) 91>1991-7, 3, 4X

Listed without a diagram position (1)

VehicleYearsPos.QtyRemark
Audi 5000 S/Wagon1986-19884

Diagrams & fitment data powered by oemdiagrams.com

Hexagon Bolt is fitted on: ALHAMBRA 1996-2000; SHARAN/SYNCRO 1995-2000; L80 1995-1999; TRANSPORTER SYNCRO 1995-1995; POLO 1994-1999; GOLF/Ecomatic 1991-1994; Favorit/Forman/Pickup 1987-1995; CADDY 1982-1992; Dasher 1977-1980; Skoda 105/.. 1976-1989; Type 2 1967-1979; AUDI A6L CHINA 1999-2005; Eurovan 1996-1997; TYPE 2 "ZA" 1995-2003; AUDI 200 CHINA 1995-1999; Eurovan 95 1994-1995; Golf/Jetta "USA","MEX"93>96 1992-1996; JETTA (FAW) 91> 1991-.
