N0102107 Hexagon Bolt
Special order item. Delivery time may vary.
About This Part
Superseded part number
This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VAG is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

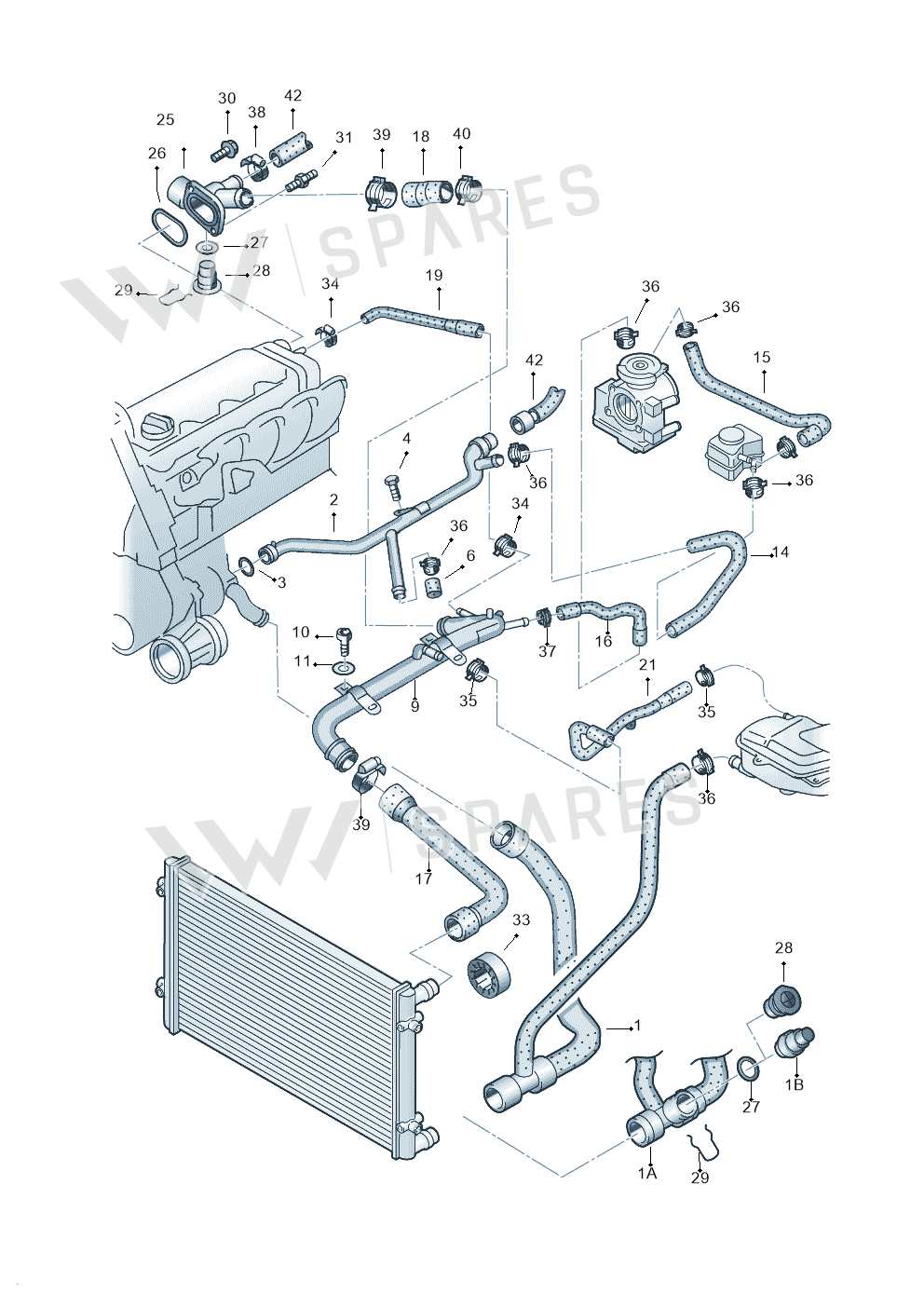

29 vehiclesHexagon Bolt — locate Hexagon Bolt in the official exploded view and explore the surrounding assembly.
Standard part (a norm part such as a bolt, nut or clip) — used across many models; the vehicle list shows where this exact number is fitted.
Parts in this assembly23
- 1AHose 4B0121055K
- 2Water Pipe 06B121065J
- 3Seal Ring N90365302
- 4Bolt N01023911
- 6Part 06B133335G
- 9Water Pipe 058121071J
- 10Bolt N90529301
- 10Screw N0147404
- 11Washer N0115247
- 14Hose 06B121058BR
- 16Hose 058121058
- 17Hose 8D0121101K
- 21Hose 8D0121107D
- 25Flange 058121132B
- 26Seal Ring 037121687
- 27Seal Ring WHT001709
- 29Spring 032121142E
- 30Bolt N0902612
- 35Clamp 4B0422379
- 36Clamp N90655501
- 38Clamp N90655701
- 39Clamp N90687201
- 40Clamp N10258001
Vehicle fitment table29
Europe (17)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| PASSAT 00> | 2000- | 10, 19 | 2 | ||
| Audi A6/Wagon 95 | 1994-1995 | 11 | 6 | ||
| Carrera 4 Cabrio | 1993-1998 | 10 | 1 | ||
| GTS Coupe | 1991-1995 | 33 | 2 | ||
| Carrera 4 Coupe | 1988-1994 | 10 | 1 | ||
| GT Coupe | 1986-1991 | 33 | 2 | ||
| Carrera Cabrio | 1983-1986 | 2 | |||
| 944 Coupe | 1981-1985 | 21 | 12 | ||
| Jetta | 1981-1984 | 7 | 6 | ||
| Scirocco | 1981-1983 | 2, 3 | 8 | ||
| Scirocco | 1981-1981 | 11, 2 | 2 | GOLF-/JETTA, | |
| 924 S | 1979-1985 | 13 | 1 | ||
| SC Cabrio | 1979-1983 | 2 | 3 | ||
| Skoda 105/.. | 1976-1989 | 6, 43 | 2 | A | |
| Scirocco | 1976-1978 | 21 | 2 | ||
| Scirocco | 1974-1976 | 39 | 3 | FB | |
| Dasher | 1973-1977 | 16 | 6 |
Other markets (9)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| PASSAT LINGYU "CN."06> | 2005- | 19 | 2 | ||
| SANTANA 3000 "CN"04> | 2004- | 14, 3 | 6 | 1AC | |
| GOL "CN"03> | 2003- | 11 | 6 | ||
| AUDI A6L CHINA | 1999-2005 | 11 | 1 | ||
| SANTANA 2000 "CN"96>04 | 1996-2004 | 14, 3 | 6 | ||
| SANTANA/VARIANT "CN"86> | 1985- | 5, 14, 3 | 1 | ||
| Rabbit Conv. | 1981-1983 | 6, 4 | 4 | ||
| Rabbit Conv. 81 | 1980-1981 | 6, 4 | 4 | ||
| Rabbit Conv. | 1978-1980 | 6, 4 | 4 |
Platform / generic diagrams (3)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| 111 platform | 17, 58, 8 | 6 | |||
| 111 platform | 16 | 5 | |||
| 477 platform | 13 | 1 |
Diagrams & fitment data powered by oemdiagrams.com
Hexagon Bolt is fitted on: PASSAT 00> 2000-; Audi A6/Wagon 95 1994-1995; Carrera 4 Cabrio 1993-1998; GTS Coupe 1991-1995; Carrera 4 Coupe 1988-1994; GT Coupe 1986-1991; Carrera Cabrio 1983-1986; 944 Coupe 1981-1985; Jetta 1981-1984; Scirocco 1981-1983; Scirocco 1981-1981; 924 S 1979-1985; SC Cabrio 1979-1983; Skoda 105/.. 1976-1989; Scirocco 1976-1978; Scirocco 1974-1976; Dasher 1973-1977; PASSAT LINGYU "CN."06> 2005-; SANTANA 3000 "CN"04> 2004-; GOL "CN"03> 2003-; AUDI A6L CHINA 1999-2005; SANTANA 2000 "CN"96>04 1996-2004; SANTANA/VARIANT "CN"86> 1985-; Rabbit Conv. 1981-1983; Rabbit Conv. 81 1980-1981; Rabbit Conv. 1978-1980; 111 platform; 477 platform.
