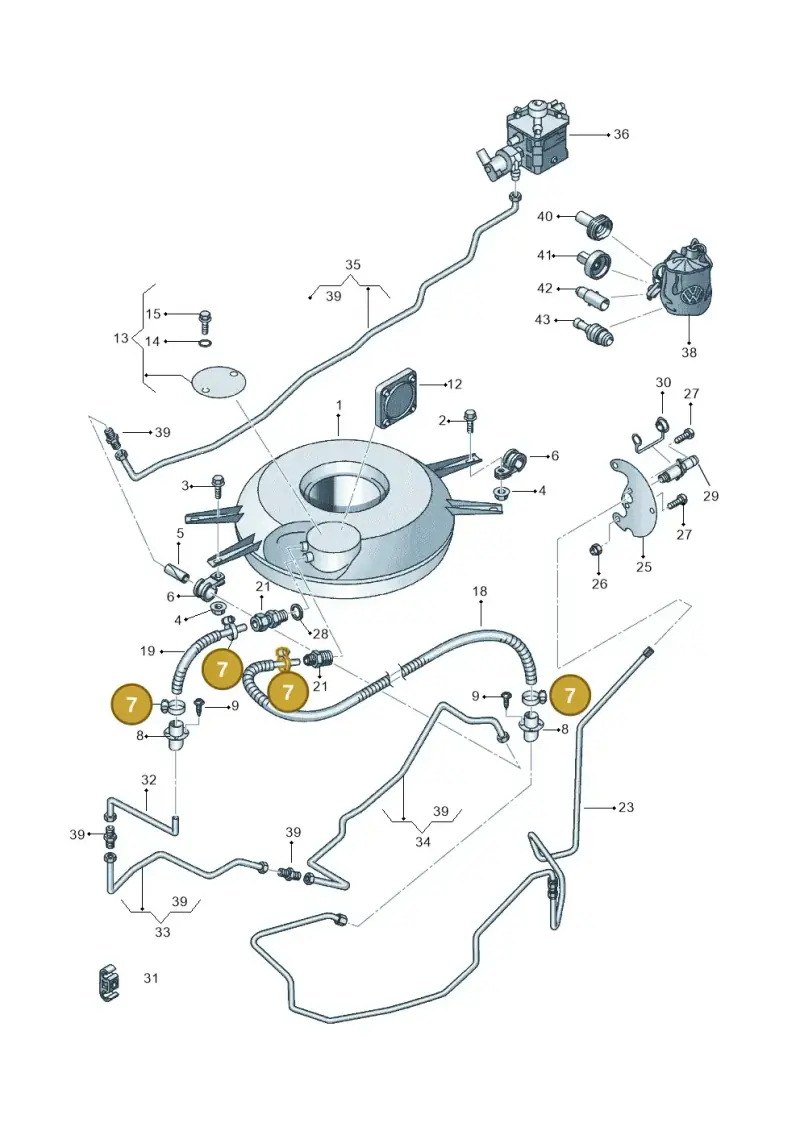

Number 7 marks the part’s position in this exploded view (SEAT Altea XL (2013-)).
Other diagrams in the gallery may use a different number for the same part.
Product overview
Genuine OEM Volkswagen Clamping, part number N10258001. Fits SEAT Altea XL (2013). Shown as position 7 in the fuel, exhaust and cooling diagram 703201090.
Catalogue entry: CLAMP 30-45X9X0,5 ×2.
Technical details
- Category
- Fuel System
- Diagram sheet
- SEAT 703201090, position 7
- ETKA group
- 2 / 01 (201)
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
Specifications
As recorded in the manufacturer’s parts catalogue for this part number.
As printed in the catalogue
- 30-45X9X0,5
Why buy from WW Spares?
- ✓ Genuine OEM inventory sourced directly from factory networks
- ✓ Fitment support from workshop-seasoned parts specialists
- ✓ Global logistics with customs-ready documentation
Need help confirming compatibility? Talk to a specialist
Parts diagram & fitment
40 vehiclesClamp — locate N10258001 Volkswagen Clamping in the official exploded view and explore the surrounding assembly.
Standard part (a norm part such as a bolt, nut or clip) — used across many models; the vehicle list shows where this exact number is fitted.
Parts in this assembly33
- 1Container 1P0201095
- 2Bolt N0195307
- 3Bolt N10626602
- 4Collar Nut N90761103
- 5Ring 4F0611853A
- 6Clamp N10300103
- 8Bungs 1J0201254A
- 9Bolt N10673701
- 13Cover JNV201192
- 15Screw 5P0201369
- 18Part JNV201820A
- 18Part JNV201820
- 19Pipe JNV201841
- 21Connection JNV201287
- 23Gas Line JNV860534C
- 23Gas Line JNV860534
- 25Pipe Holde JNV201372A
- 26Ut Hexagon Nut Self-locking Hexagon Nut N0221544
- 27Bolt N10586401
- 28Seal Ring 6R0201174
- 29Fuelfiller 6R0201333
- 30Part 3C0201579
- 31Clip 8K0611797D
- 32Gas Line JNV201420C
- 33Gas Line JNV201418B
- 34Gas Line JNV201418A
- 35Gas Line JNV201418
- 39Connector Piece 33D201382
- 40Adapter 6R0201986
- 41Adapter 6R0201986A
- 42Adapter 6R0201986B
- 43Adapter 6R0201986C
- 43Adapter JNV260367C
Vehicle fitment table40
Europe (35)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| Altea XL Reference | 2013-2013 | 7 | 2 | ||
| Golf Plus | 2011-2014 | 7 | 2 | ||
| Golf | 2011-2013 | 7 | 2 | ||
| Altea XL Reference | 2010-2013 | 7 | 4 | ||
| Leon Stylance | 2010-2012 | 7 | 4 | ||
| Golf Plus 1.6 | 2009-2011 | 7 | 4 | ||
| golf 2.0 | 2008-2011 | 7 | 4 | ||
| ALTEA 07> | 2006- | 7 | 4 | ||
| LEON 06> | 2005- | 7 | 4 | ||
| PASSAT/4MOTION/W8 | 2002-2005 | 47 | X | MK6 | |
| SUPERB 02> | 2001- | 47 | X | ||
| Audi A6/Wagon/quattro | 2001-2004 | 33 | X | T6V | |
| PASSAT 00> | 2000- | 40, 47 | X | ||
| AUDI A2 | 2000-2005 | 11 | 1 | T94 | |
| Passat/4Motion/W8 | 2000-2002 | 47 | X | MK6 | |
| Audi A8 quattro | 1999-2002 | 27 | X | ||
| Audi A4/Avant | 1999-2001 | 31, 40 | X | ||
| Audi A4/Av.qu. | 1999-2001 | 31, 33 | X | ||
| AUDI A8 | 1998-2002 | 27 | X | ||
| Passat syncro/4Motion | 1998-2000 | 31, 27 | X | ||
| Audi A6/Avant | 1997-2001 | 33 | X | ||
| Audi A6/Av.qu.F4B-W-> | 1997-2001 | 33 | X | ||
| Passat | 1997-2000 | 31, 40 | X | ||
| Audi A4/Avant F8D-W-> | 1997-1998 | 31, 40 | X | ||
| Audi A4/Av.qu.F8D-W-> | 1997-1998 | 31, 33 | X | ||
| Audi A8 | 1996-1998 | 27 | X | ||
| Audi A8 qu. | 1996-1998 | 27 | X | ||
| Audi A6/S6/Wg.qu.F>4A | 1996-1997 | 33, 27 | X | ||
| Audi A6/Wagon F >4A-W | 1996-1997 | 33, 27 | X | ||
| Audi A4 F>8D-W-.. | 1995-1997 | 31, 40, 36 | X | ||
| Audi A4 qu. F>8D-W-.. | 1995-1997 | 31, 33 | X | ||
| Audi A6/Wagon 96 | 1995-1996 | 33, 27 | X | ||
| Audi A6/S6/Wagon qu. 96 | 1995-1996 | 33, 27 | X | ||
| Audi A6/Wagon 95 | 1994-1995 | 5B | 1 | 1Z | |
| Audi Cabrio. | 1993-1998 | 33 | X |
Other markets (3)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| PASSAT LINGYU "CN."06> | 2005- | 47 | X | ||
| AUDI A6L CHINA | 1999-2005 | 33 | 1 | ||
| AUDI 200 CHINA | 1995-1999 | 33 | X |
Platform / generic diagrams (2)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| 3B0 platform | 27 | ||||
| 3B0 platform | 47 | X |
