JNV201820 Corrugated Pipe
- JNV201820This pageNot stocked
Feb 2018 - JNV201820CCurrent number
Special order item. Delivery time may vary.
About This Part
Superseded part number
This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VAG is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

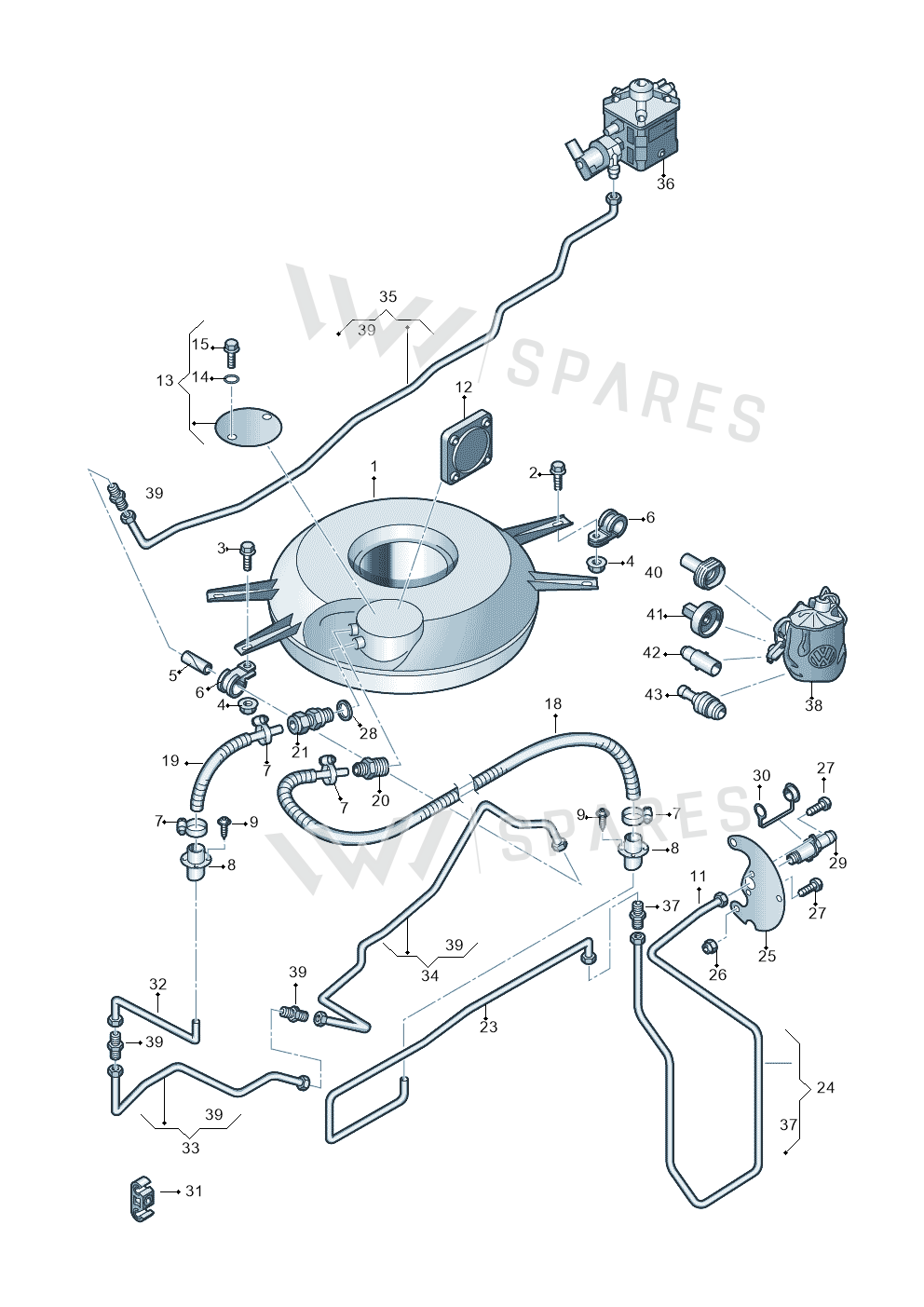

7 vehiclesCorrugated Pipe — locate Corrugated Pipe in the official exploded view and explore the surrounding assembly.
Parts in this assembly33
- 1Gas Tank JNV201095G
- 2Bolt N0195307
- 3Bolt N10626602
- 4Collar Nut N90761103
- 5Ring 4F0611853A
- 6Clamp N10300103
- 7Clamp N10258001
- 8Bungs 1J0201254A
- 9Bolt N10673701
- 13Cover JNV201192
- 19Pipe JNV201841A
- 20Connection JNV201287A
- 21Connection JNV201287
- 23Gas Line JNV201419A
- 24Gas Line JNV201417
- 25Pipe Holde JNV201372
- 26Ut Hexagon Nut Self-locking Hexagon Nut N0221544
- 27Bolt N10586401
- 28Seal Ring 6R0201174
- 29Fuelfiller JNV201595B
- 30Part 3C0201579
- 31Clip 8K0611797D
- 32Gas Line JNV201420C
- 33Gas Line JNV201418B
- 34Gas Line JNV201418A
- 35Gas Line JNV201418
- 37Connector Piece 33D201382A
- 38Part 6R0201232
- 39Connector Piece 33D201382
- 40Adapter 6R0201986
- 41Adapter 6R0201986A
- 42Adapter 6R0201986B
- 43Adapter 6R0201986C
Vehicle fitment table7
Europe (7)
| Vehicle | Years | Pos. | Qty |
|---|---|---|---|
| Golf Plus | 2011-2014 | 18 | |
| Golf | 2011-2013 | 18 | |
| Leon Stylance | 2010-2012 | 12, 18 | 1 |
| Golf Plus 1.6 | 2009-2011 | 12, 18 | 1 |
| golf 2.0 | 2008-2011 | 12, 18 | 1 |
| ALTEA 07> | 2006- | 12 | 1 |
| LEON 06> | 2005- | 12 | 1 |
Diagrams & fitment data powered by oemdiagrams.com
Corrugated Pipe is fitted on: Golf Plus 2011-2014; Golf 2011-2013; Leon Stylance 2010-2012; Golf Plus 1.6 2009-2011; golf 2.0 2008-2011; ALTEA 07> 2006-; LEON 06> 2005-.
