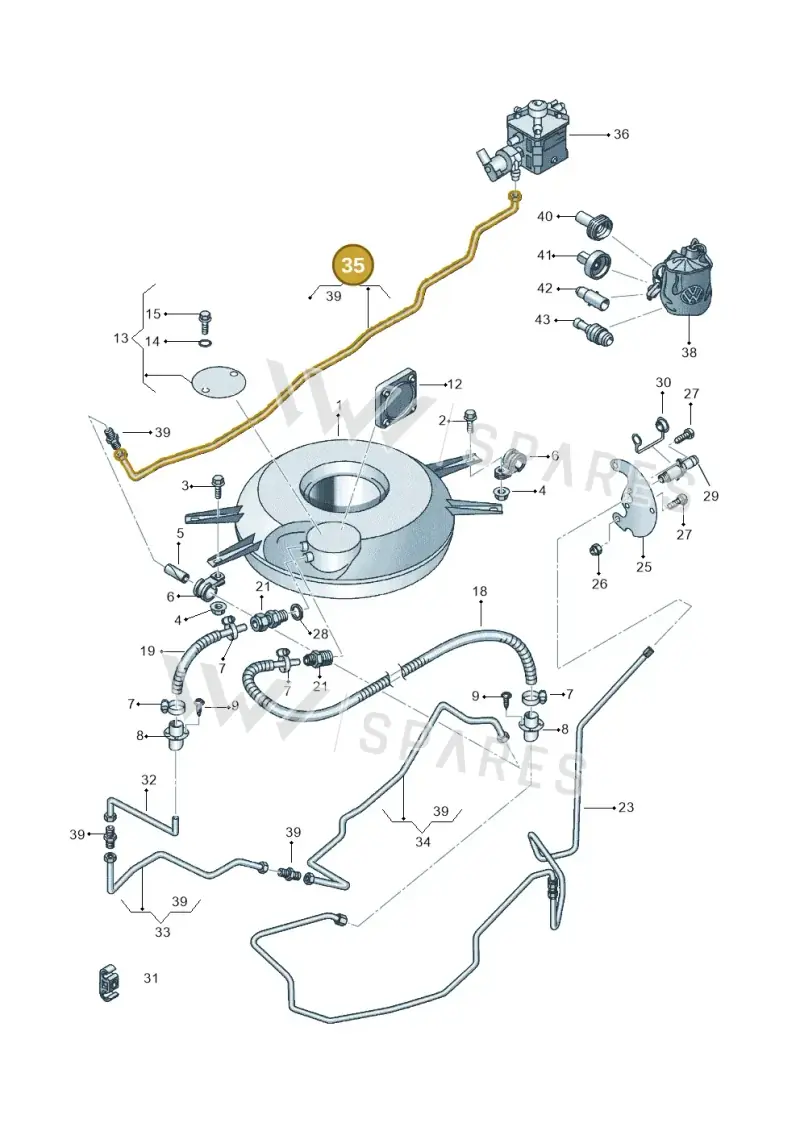

Number 35 marks the part’s position in the exploded view (SEAT Altea XL (2013-)).
Product overview
Genuine OEM Volkswagen Gas Line, part number JNV201418. Fits SEAT Altea XL (2013). Shown as position 35 in the fuel, exhaust and cooling diagram 703201090.
Catalogue entry: GAS LINE 2116MM; STAINLESS D=6MM.
Technical details
- Category
- Fuel System
- Diagram sheet
- SEAT 703201090, position 35
- ETKA group
- 2 / 01 (201)
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
Specifications
As recorded in the manufacturer’s parts catalogue for this part number.
- Length
- 2116 mm
As printed in the catalogue
- 2116MM
- D=6MM
Why buy from WW Spares?
- ✓ Genuine OEM inventory sourced directly from factory networks
- ✓ Fitment support from workshop-seasoned parts specialists
- ✓ Global logistics with customs-ready documentation
Need help confirming compatibility? Talk to a specialist
Parts diagram & fitment
7 vehiclesGas Line — locate JNV201418 Volkswagen Gas Line in the official exploded view and explore the surrounding assembly.
Superseded by JNV201418A — the later replacement part.
This part is marked discontinued by the manufacturer (since 2022-06-01); contact us to check current availability.
Parts in this assembly33
- 1Container 1P0201095
- 2Bolt N0195307
- 3Bolt N10626602
- 4Collar Nut N90761103
- 5Ring 4F0611853A
- 6Clamp N10300103
- 7Clamp N10258001
- 8Bungs 1J0201254A
- 9Bolt N10673701
- 13Cover JNV201192
- 15Screw 5P0201369
- 18Part JNV201820A
- 18Part JNV201820
- 19Pipe JNV201841
- 21Connection JNV201287
- 23Gas Line JNV860534C
- 23Gas Line JNV860534
- 25Pipe Holde JNV201372A
- 26Ut Hexagon Nut Self-locking Hexagon Nut N0221544
- 27Bolt N10586401
- 28Seal Ring 6R0201174
- 29Fuelfiller 6R0201333
- 30Part 3C0201579
- 31Clip 8K0611797D
- 32Gas Line JNV201420C
- 33Gas Line JNV201418B
- 34Gas Line JNV201418A
- 39Connector Piece 33D201382
- 40Adapter 6R0201986
- 41Adapter 6R0201986A
- 42Adapter 6R0201986B
- 43Adapter 6R0201986C
- 43Adapter JNV260367C
Vehicle fitment table7
Europe (7)
| Vehicle | Years | Pos. |
|---|---|---|
| Altea XL Reference | 2013-2013 | 35 |
| Golf Plus | 2011-2014 | 35 |
| Golf | 2011-2013 | 35 |
| Altea XL Reference | 2010-2013 | 35 |
| Leon Stylance | 2010-2012 | 35 |
| Golf Plus 1.6 | 2009-2011 | 35 |
| golf 2.0 | 2008-2011 | 35 |
Diagrams & fitment data powered by oemdiagrams.com
JNV201418 Volkswagen Gas Line is fitted on: Altea XL Reference 2013-2013; Golf Plus 2011-2014; Golf 2011-2013; Altea XL Reference 2010-2013; Leon Stylance 2010-2012; Golf Plus 1.6 2009-2011; golf 2.0 2008-2011.
