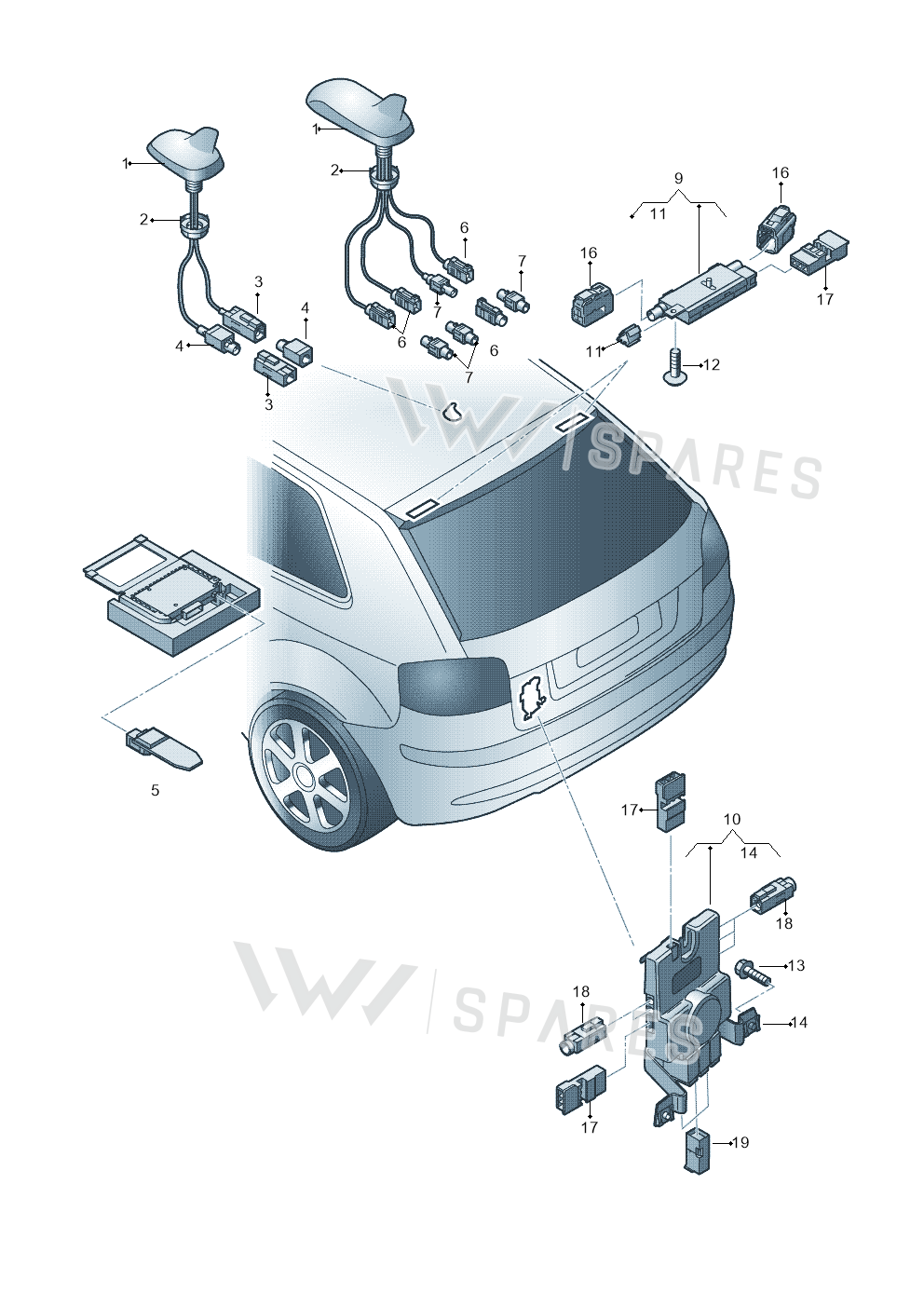

Hexagon Bolt exploded parts diagram — Audi A3/S3/Sportb./qu. 08 · 2007-, position 13
Exploded view
Audi A3/S3/Sportb./qu. 08 · 2007- · position 13Full diagram ↓
N01028715

N01028715 Hexagon Bolt

£0.15
£0.12 excl. VAT
Supersession road4 numbers since 1998
  1. 2RG145727Not stocked
    Nov 1998
  2. N0102873Not stocked
    Jul 2008
  3. N01028715This pageNot stocked
    Aug 2007
  4. N01028712Current number
Current part numberN01028712What the manufacturer supplies todayOrder
Availability: No longer supplied under this number

Special order item. Delivery time may vary.

About This Part

Superseded part number

This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.

Order Processing & Delivery

This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VAG is typically 3–8 business days before dispatch.

Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.

* Delivery times are estimates and may vary based on manufacturer availability and your location.

Verify Vehicle Fitment

To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.

Contact us with your VIN
Genuine OEM Parts
Direct from manufacturer
Secure Ordering
Safe and protected checkout

Parts diagram & fitment

12 vehicles

Hexagon Bolt — locate Hexagon Bolt in the official exploded view and explore the surrounding assembly.

Parts in this assembly46
Vehicle fitment table12

Europe (11)

VehicleYearsPos.QtyPR
Audi A3/S3/Sportb./qu. 082007-13, 254K8G,K8R
ALTEA 07>2006-51
LEON 06>2005-51
IBIZA 06>2005-92
CORDOBA 06>2005-92
Audi A3/S3/quattro2005-200713, 25, 82K8G
TOLEDO 05>2004-6B, 52
ALTEA2004-20066B, 52
Audi A4/S4 Cabrio./qu.2002-2006193L0L,L0R
CORDOBA/SE2412002-200592
IBIZA2001-200592

Other markets (1)

VehicleYearsPos.QtyPR
Golf Cabrio "USA","MEX"96>991995-199864

Diagrams & fitment data powered by oemdiagrams.com

Hexagon Bolt is fitted on: Audi A3/S3/Sportb./qu. 08 2007-; ALTEA 07> 2006-; LEON 06> 2005-; IBIZA 06> 2005-; CORDOBA 06> 2005-; Audi A3/S3/quattro 2005-2007; TOLEDO 05> 2004-; ALTEA 2004-2006; Audi A4/S4 Cabrio./qu. 2002-2006; CORDOBA/SE241 2002-2005; IBIZA 2001-2005; Golf Cabrio "USA","MEX"96>99 1995-1998.
