N0103872 Hexagon Bolt
Special order item. Delivery time may vary.
About This Part
Discontinued by the manufacturer
This part number has been discontinued and can no longer be ordered. Contact us and we will look for an alternative.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VAG is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

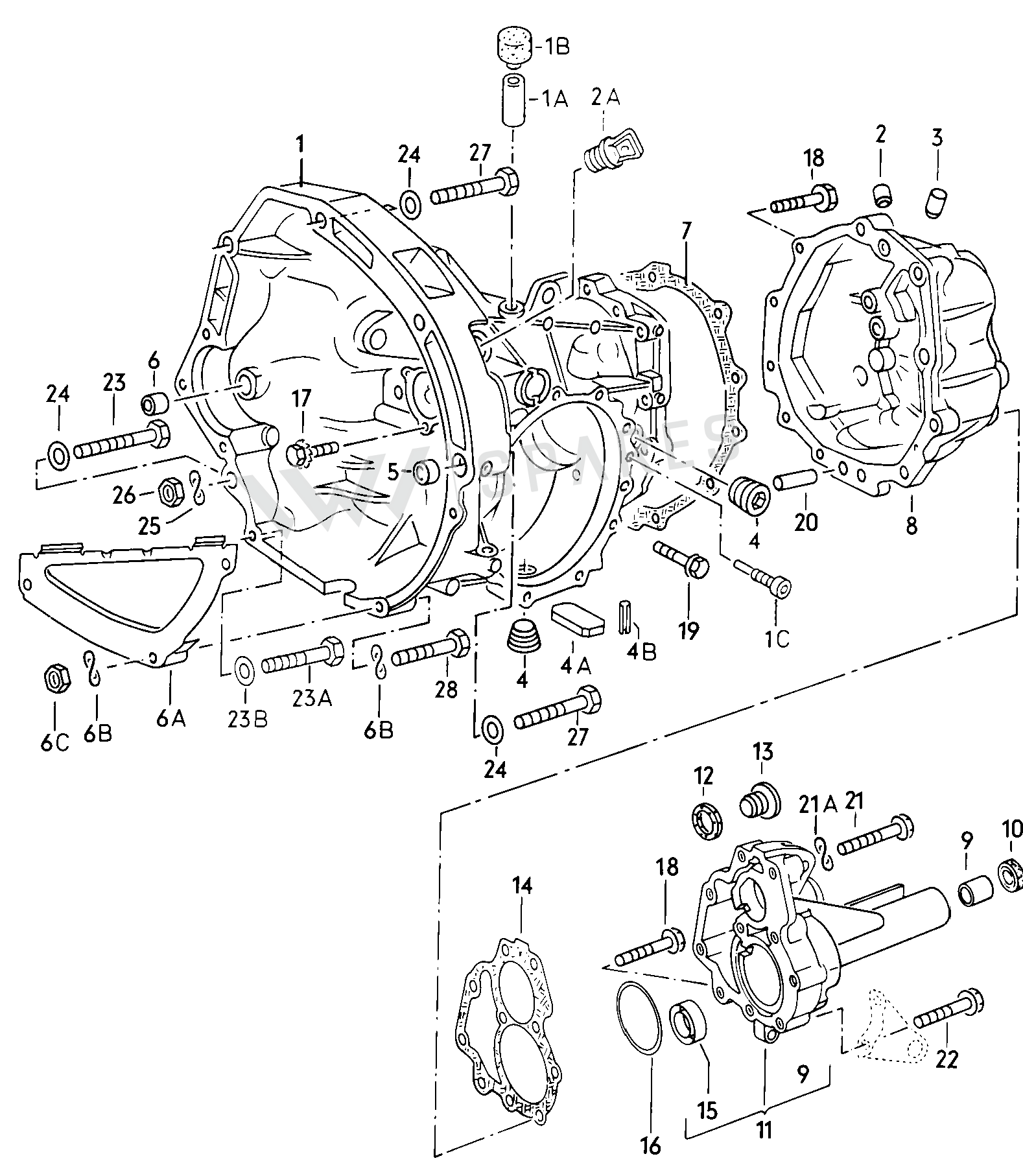

11 vehiclesHexagon Bolt — locate Hexagon Bolt in the official exploded view and explore the surrounding assembly.
Parts in this assembly48
- 1Housing 013301103Q
- 1ASleeve 012301474A
- 1BAp Cap For Venting The Gearbox Cap For Venting 014301485
- 2Bungs 014301115A
- 2ABungs 084301115
- 3Bungs 014301119B
- 3Bungs 014301119
- 4Screw 012301127F
- 4AMagnet 084301143A
- 4BSleeve N0133442
- 5Sleeve 014301153
- 6Bush 014301155
- 6ACoverplate 014301159C
- 6BWasher N01152711
- 6BWasher N0122265
- 6CPart N10155207
- 6CPart N01100624
- 7Seal 013301191
- 8Mounting 092301211B
- 9Bush 001301207
- 10Seal Washer 085301227
- 11Housing 092301223
- 12Seal Ring N0138165
- 13Screw 113301229A
- 14Seal 014301235D
- 14Seal 014301235C
- 15Bush 014301459
- 16Washer 014301490C
- 16Washer 014301490D
- 16Washer 014301490E
- 16Washer 014301490F
- 16Washer 014301490G
- 16Washer 014301490H
- 16Washer 014301490J
- 16Washer 014301490K
- 16Washer 014301490L
- 16Washer 014301490M
- 16Washer 014301490N
- 16Washer 014301490P
- 16Washer 014301490Q
- 16Washer 014301490R
- 16Washer 014301490B
- 17Bolt N0402033
- 18Bolt N01034510
- 19Bolt N0402622
- 21AWasher N01224110
- 23Bolt N0104644
- 23ABolt N0104403
Vehicle fitment table11
Europe (9)
| Vehicle | Years | Pos. | Qty | Remark |
|---|---|---|---|---|
| Audi 5000 S/Wagon 84 | 1983-1984 | 21 | 4 | |
| Audi 5000 | 1981-1982 | 21 | 4 | |
| Audi 5000 Turbo | 1979-1982 | 9 | 1 | |
| Audi 5000/Wagon | 1979-1981 | 11, 21 | 1 | |
| Audi 5000 | 1977-1979 | 21, 6A | 4 | |
| LT 28-40 F>28-d-007273 | 1975-1982 | 25, 26 | 1 | CH,CL |
| Type 4 | 1968-1974 | 4, 6 | 2 | |
| Type 2 | 1967-1979 | 27 | 2 | |
| IND.MOT.4-ZYL:1,2-1,8 | 1950-1991 | 3, 5, 13, 7 | 4 |
Other markets (1)
| Vehicle | Years | Pos. | Qty | Remark |
|---|---|---|---|---|
| Vanagon | 1979-1985 | 44 | 1 | CV |
Platform / generic diagrams (1)
| Vehicle | Years | Pos. | Qty | Remark |
|---|---|---|---|---|
| 914 platform | 4 | 1 |
Diagrams & fitment data powered by oemdiagrams.com
Hexagon Bolt is fitted on: Audi 5000 S/Wagon 84 1983-1984; Audi 5000 1981-1982; Audi 5000 Turbo 1979-1982; Audi 5000/Wagon 1979-1981; Audi 5000 1977-1979; LT 28-40 F>28-d-007273 1975-1982; Type 4 1968-1974; Type 2 1967-1979; IND.MOT.4-ZYL:1,2-1,8 1950-1991; Vanagon 1979-1985; 914 platform.
