N0903485 Hexagon Bolt
- N0903485This pageNot stocked
Apr 2007 - N0903487Current number
Special order item. Delivery time may vary.
About This Part
Superseded part number
This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VAG is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

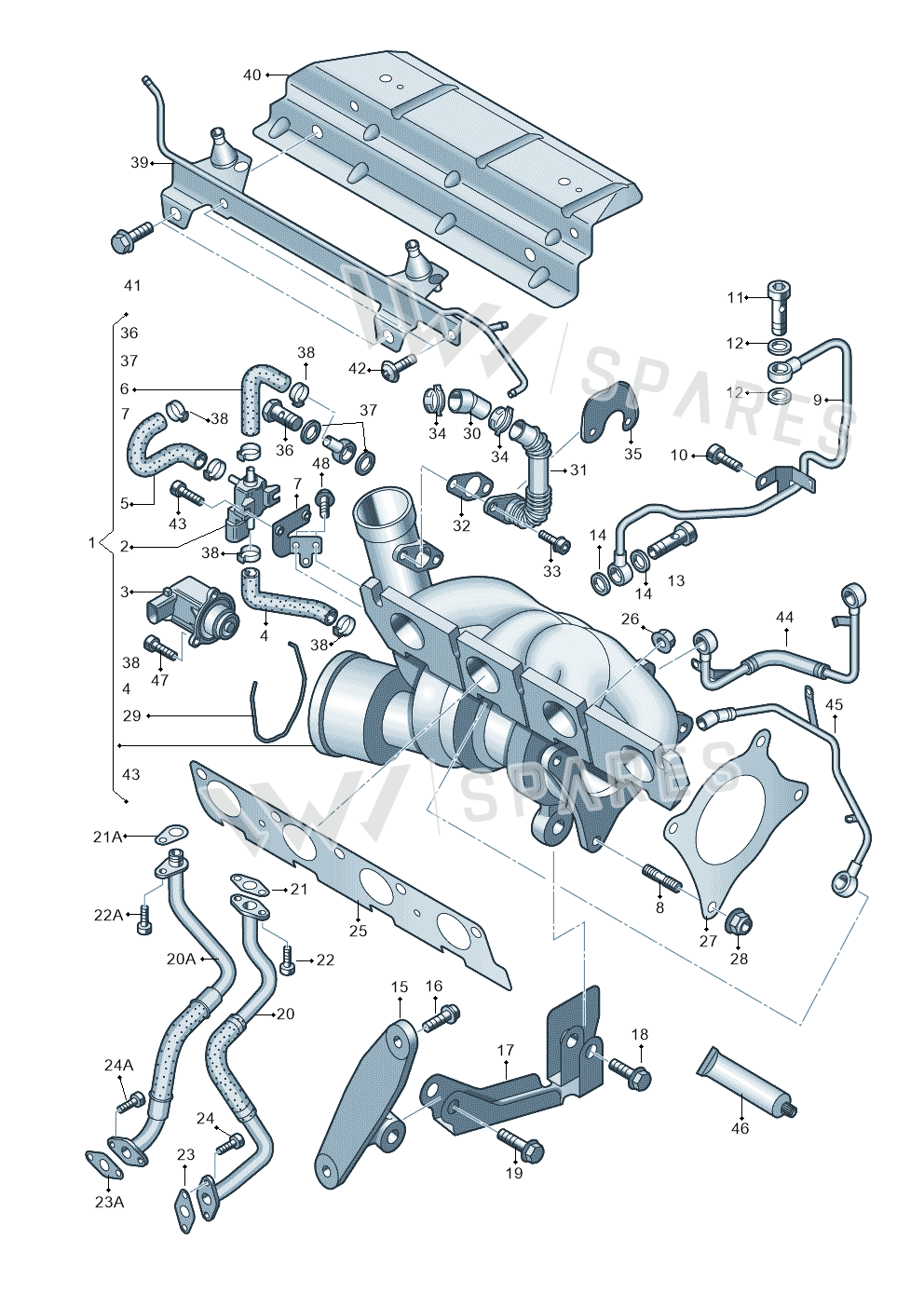

7 vehiclesHexagon Bolt — locate Hexagon Bolt in the official exploded view and explore the surrounding assembly.
Parts in this assembly48
- 1Turbo 06F145701G
- 1Turbo 06F145701H
- 1Turbo 06J145701L
- 1Turbo 06J145702C
- 1Turbo 06F145701GX
- 1Turbo 06F145701HX
- 1Turbo 06J145701LX
- 1Turbo 06J145702CX
- 1AVacuum Uni 06J145716
- 1AVacuum Uni 06F145716
- 2Valve 06F906283F
- 3Valve 06F145710G
- 3Valve 06H145710D
- 4Hose 06F145718S
- 4Hose 06J145718B
- 5Hose 06F145718Q
- 5Hose 06J145718
- 6Hose 06F145718R
- 6Hose 06J145718C
- 7Bracket 06F103943F
- 8Bolt N0445203
- 9Oil Pipe 06F145778G
- 9Oil Pipe 06J145771
- 9AHeat Insul 06F133833B
- 10Screw N01470210
- 11Screw WHT000223
- 12Seal Ring N0138514
- 13Screw N10619201
- 14Seal Ring N90067202
- 15Support 06F145533B
- 15Support 06J145536C
- 16Screw N90292902
- 16Screw N91117901
- 17Support 06F145536C
- 18Bolt N01024710
- 19Bolt N0903487
- 20Oil Pipe 06F145735D
- 20Oil Pipe 06H145735H
- 21Seal 06F145757C
- 21Seal 06F145757H
- 22Screw N01470213
- 23Seal 058145757A
- 24Screw N10086304
- 25Seal 06F253039E
- 25Seal 06F253039F
- 25ABracket 06F253709A
- 26Ut Hexagon Nut Self-locking Hexagon Nut N90894601
- 27Seal 1K0253115K
Vehicle fitment table7
Europe (1)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| OCTAVIA/COMBI/4X4 04> | 2004- | 19 | 1 | BWA | D2L |
Other markets (6)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| GOL 2P/4P M.06> | 2005- | 17 | 1 | ||
| SAVEIRO M.06> | 2005- | 17 | 1 | ||
| GOL 2P/4P | 2002-2006 | 17 | 1 | ||
| SAVEIRO | 2002-2006 | 17 | 1 | ||
| PARATI 4P | 2002-2006 | 17 | 1 | ||
| GOL SPECIAL 2P | 2002-2005 | 17 | 1 | 9AA |
Diagrams & fitment data powered by oemdiagrams.com
Hexagon Bolt is fitted on: OCTAVIA/COMBI/4X4 04> 2004-; GOL 2P/4P M.06> 2005-; SAVEIRO M.06> 2005-; GOL 2P/4P 2002-2006; SAVEIRO 2002-2006; PARATI 4P 2002-2006; GOL SPECIAL 2P 2002-2005.
