N10340801 Bolt Hex Hd With Shoul (Combi)
- N10340801This pageNot stocked
Apr 2009 - N10340802Current number
Special order item. Delivery time may vary.
About This Part
Superseded part number
This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VAG is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

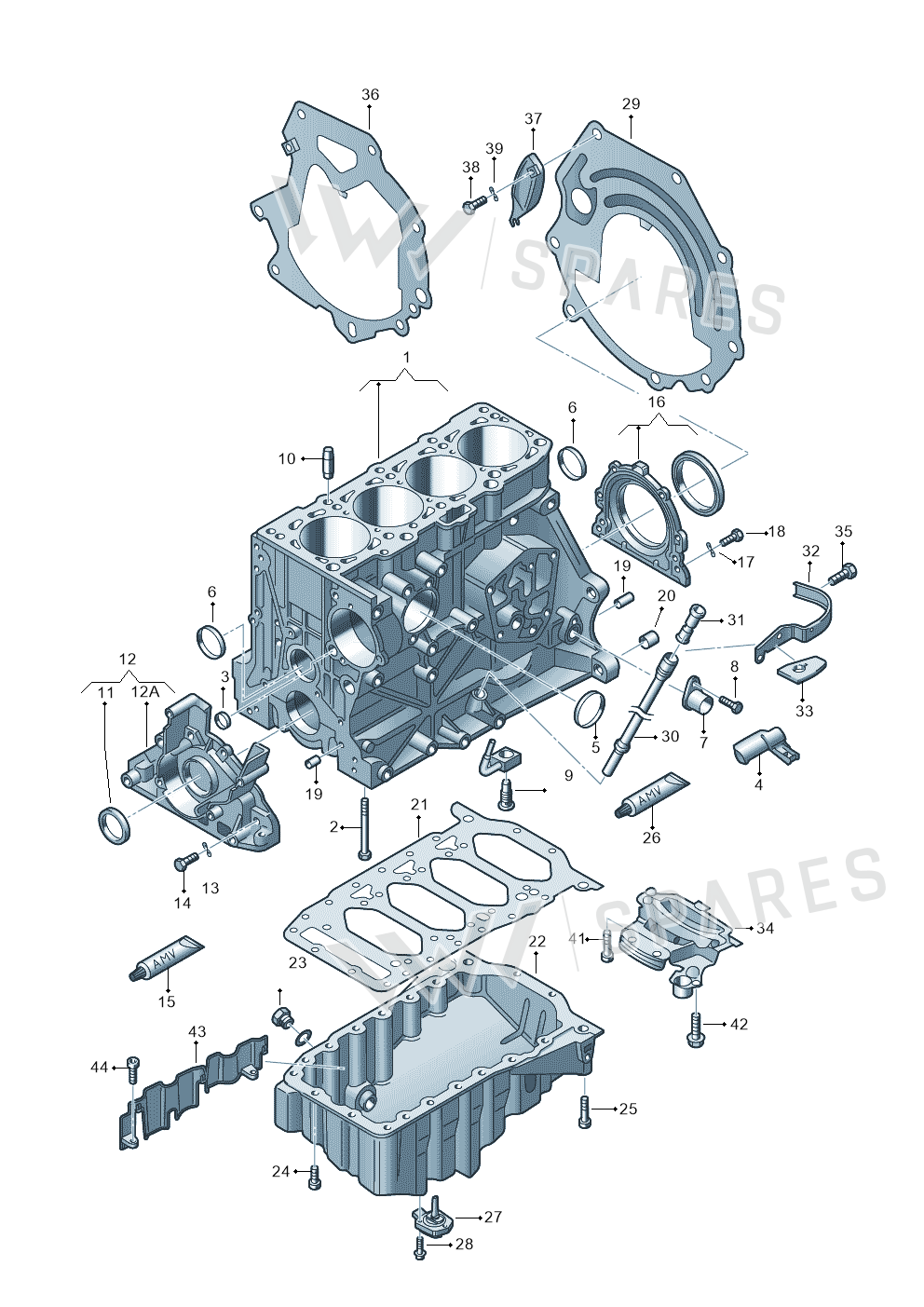

19 vehiclesBolt Hex Hd With Shoul (combi) — locate Bolt Hex Hd With Shoul (Combi) in the official exploded view and explore the surrounding assembly.
Parts in this assembly43
- 1Cylinder Block 06B103101K
- 1Crankcase 06F103011J
- 2Bolt N90130001
- 2Bolt WHT000134
- 3Cover N0119047
- 3Cover N0119071
- 3Cover N01190710
- 4Lock 06F103623E
- 5Cover 036103113
- 6Cover N0119093
- 6Cover N0119098
- 9Vent 06B103154
- 9Vent 06F103154
- 9Vent 06F103154A
- 10Part 026103139
- 11Seal 038103085E
- 12Flange 06B103151
- 12Flange 06D103151
- 12AFlange 06D103153B
- 13Bolt N90945002
- 15Seal D176404A2
- 16Flange 06A103171A
- 16Flange 06B103171B
- 19Part N10617101
- 20Sleeve 022103139B
- 20Sleeve 022103139
- 21Frame 06B103307C
- 21Frame 06B103307E
- 22Oil Sump 06B103601CC
- 22Oil Sump 06B103601CG
- 23Bolt N90813202
- 24Bolt N90735604
- 25Bolt N90628303
- 29Spacer Pl 06B103551G
- 29Spacer Pl 06B103551L
- 30Tube 06D103634E
- 31Funnel 06F103663H
- 31Funnel 06B103663G
- 31Funnel 06B103663J
- 33Guide 06B103705
- 34Lock 06D103623D
- 41Screw N90665001
- 42Bolt N10340802
Vehicle fitment table19
Europe (15)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| ALTEA 07> | 2006- | 42 | 1 | BWA | D2L |
| Audi A4/S4/Av./qu. 05> | 2005- | 4, 42 | 1 | T0F | |
| JETTA 06> | 2005- | 42 | 2 | D2L,T59,0GG,0GV | |
| Audi A3/S3/quattro | 2005-2007 | 42 | 2 | D2L,G0K,G0L,G1A,QG0,QG1,QG2,0GG,0GV,7GB,7GE,7MA | |
| Touareg | 2005-2006 | 6 | 22 | T88 | |
| TOLEDO 05> | 2004- | 42 | 1 | BWA | D2L |
| OCTAVIA/COMBI/4X4 04> | 2004- | 42 | 1 | BWA | D2L |
| ALTEA | 2004-2006 | 42 | 1 | BWA | D2L |
| Touareg | 2003-2005 | 6, 47 | 22 | T88 | |
| PASSAT/4MOTION/W8 | 2002-2005 | 4, 49 | 1 | T0F | |
| Audi A4/S4/Av./qu. | 2001-2004 | 4 | 1 | T0F | |
| Audi A6/Wagon/quattro | 2001-2004 | 4 | 1 | MW2 | |
| Passat/4Motion/W8 | 2000-2002 | 4, 49 | 1 | T0F | |
| Audi A8 quattro | 1999-2002 | 2 | 4 | ALT | |
| AUDI A8 | 1998-2002 | 2 | 4 | ALT |
Other markets (3)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| AUDI A6L "CN"05> | 2005- | 42 | 2 | ||
| AUDI A4 "CN."06> | 2005- | 42 | 2 | BGB | |
| Jetta "USA"05> | 2005- | 42 | 1 |
Platform / generic diagrams (1)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| 7L6 platform | 6 | 22 |
Diagrams & fitment data powered by oemdiagrams.com
Bolt Hex Hd With Shoul (Combi) is fitted on: ALTEA 07> 2006-; Audi A4/S4/Av./qu. 05> 2005-; JETTA 06> 2005-; Audi A3/S3/quattro 2005-2007; Touareg 2005-2006; TOLEDO 05> 2004-; OCTAVIA/COMBI/4X4 04> 2004-; ALTEA 2004-2006; Touareg 2003-2005; PASSAT/4MOTION/W8 2002-2005; Audi A4/S4/Av./qu. 2001-2004; Audi A6/Wagon/quattro 2001-2004; Passat/4Motion/W8 2000-2002; Audi A8 quattro 1999-2002; AUDI A8 1998-2002; AUDI A6L "CN"05> 2005-; AUDI A4 "CN."06> 2005-; Jetta "USA"05> 2005-; 7L6 platform.
