N90593201 Double Stud With Hexagon Drive
Special order item. Delivery time may vary.
About This Part
Discontinued by the manufacturer
This part number has been discontinued and can no longer be ordered. Contact us and we will look for an alternative.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VAG is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

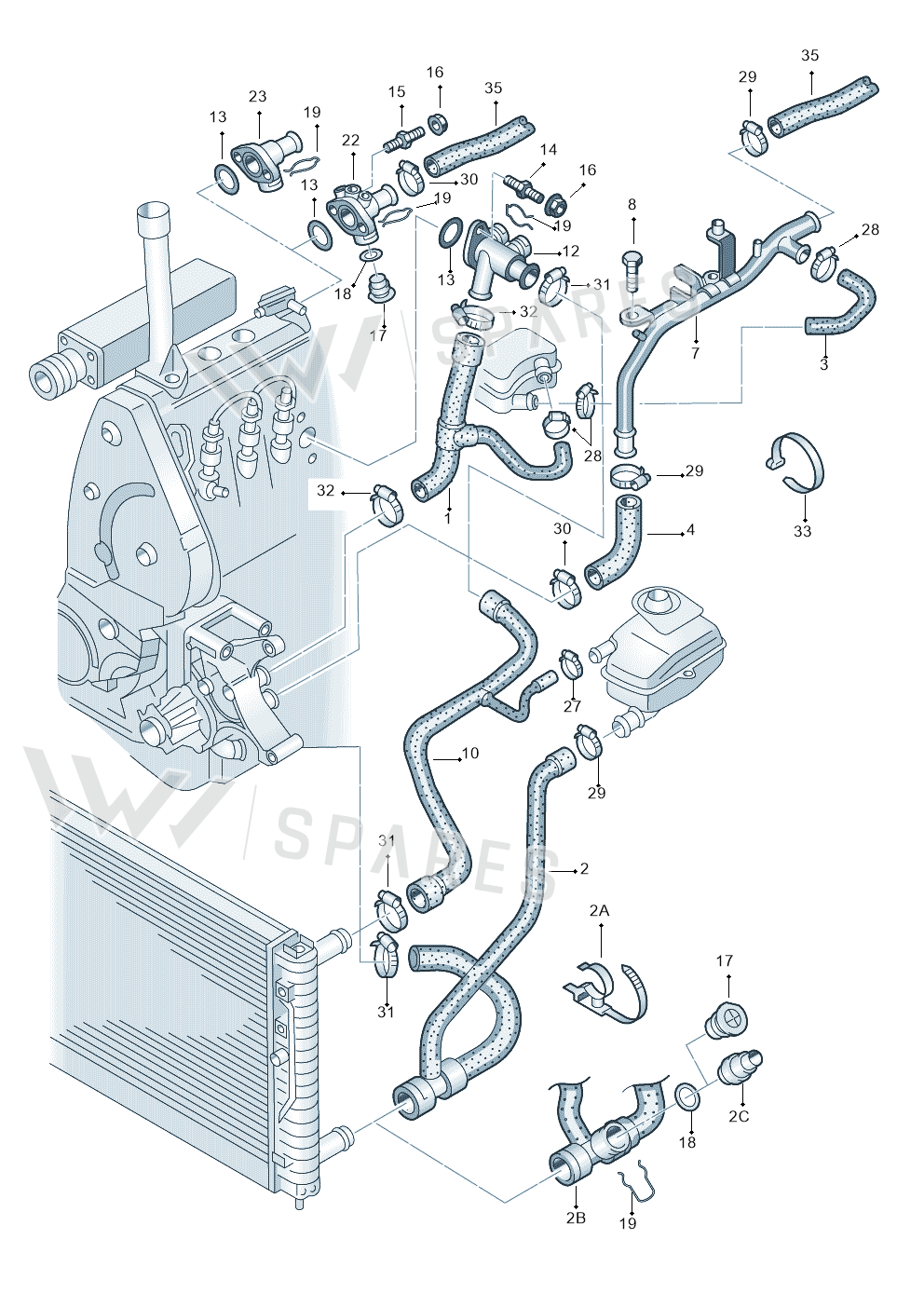

30 vehiclesDouble Stud With Hexagon Drive — locate Double Stud With Hexagon Drive in the official exploded view and explore the surrounding assembly.
Parts in this assembly31
- 1Hose 028121053AA
- 1Hose 028121053K
- 2Hose 8D0121055F
- 2ACable Tie 4A0121093
- 3Hose 058121058B
- 4Hose 048121063
- 7Water Pipe 028121065L
- 7Water Pipe 028121065S
- 8Bolt N0102935
- 9Cable Tie 3D0971838
- 10Hose 8D0121101AJ
- 12Flange 028121132
- 13Seal Ring 037121687
- 14Bolt 027121631A
- 16Collar Nut N90175203
- 17Bungs 357121140
- 18Seal Ring N90316801
- 19Spring 1J0121142
- 19Spring 032121142
- 23Flange 028121144N
- 23Flange 028121144Q
- 27Clamp N90770201
- 27Clip N10057201
- 28Clamp N90686901
- 29Clamp N90561801
- 30Clamp N90655701
- 30Clamp N10258101
- 31Clamp N90687201
- 31Clamp N10258001
- 32Clamp N0164041
- 33Cable Tie N0209022
Vehicle fitment table30
Europe (30)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| Audi A4/Avant | 1999-2001 | 14 | 1 | ||
| Audi A4/Av.qu. | 1999-2001 | 14 | 1 | ||
| GOLF CABRIO | 1998-2001 | 19 | 1 | G0B,G0C,G0E,MR3,MV9,M11,M2K,M59,M6N,M60,M66,M67,M8M,M9Z,M91,9AA,9AB | |
| Passat syncro/4Motion | 1998-2000 | 14 | 1 | ||
| Audi A6/Avant | 1997-2001 | 14 | 1 | ||
| Passat | 1997-2000 | 14 | 1 | ||
| Audi A4/Avant F8D-W-> | 1997-1998 | 14 | 1 | ||
| Audi A4/Av.qu.F8D-W-> | 1997-1998 | 14 | 1 | ||
| ALHAMBRA | 1996-2000 | 6, 7 | 1 | ||
| GOLF VAR./VENTO | 1996-1999 | 19 | 1 | ||
| Golf | 1996-1997 | 19 | 1 | ||
| Audi A6/Wagon F >4A-W | 1996-1997 | 17 | 1 | ||
| SHARAN/SYNCRO | 1995-2000 | 6, 7 | 1 | ||
| Audi A4 F>8D-W-.. | 1995-1997 | 14 | 1 | ||
| Audi A4 qu. F>8D-W-.. | 1995-1997 | 14 | 1 | ||
| Golf 96 | 1995-1996 | 19 | 1 | ||
| Golf Var./Vento 96 | 1995-1996 | 19 | 1 | ||
| Audi A6/Wagon 96 | 1995-1996 | 17 | 1 | ||
| Passat | 1994-1997 | 9 | 1 | ||
| Golf Cabrio | 1994-1996 | 19 | 1 | ||
| Golf/Ecomatic 95 | 1994-1995 | 19 | 1 | ||
| Golf Var./Vento 95 | 1994-1995 | 19 | 1 | ||
| Audi A6/Wagon 95 | 1994-1995 | 17 | 1 | ||
| Audi Cabrio. | 1993-1998 | 6, 17 | 1 | ||
| Golf/Var. syncro | 1993-1997 | 19 | 1 | ||
| Audi 90 | 1993-1995 | 6, 17 | 1 | ||
| Jetta GLX 94 | 1993-1994 | 19 | 1 | ||
| Audi 90 93 | 1992-1993 | 6, 17 | 1 | ||
| GOLF/Ecomatic | 1991-1994 | 19 | 1 | ||
| DIES.-IND.-MOT.1,9>2,0 | 1990-2007 | 4 | 1 | AFD |
Diagrams & fitment data powered by oemdiagrams.com
Double Stud With Hexagon Drive is fitted on: Audi A4/Avant 1999-2001; Audi A4/Av.qu. 1999-2001; GOLF CABRIO 1998-2001; Passat syncro/4Motion 1998-2000; Audi A6/Avant 1997-2001; Passat 1997-2000; Audi A4/Avant F8D-W-> 1997-1998; Audi A4/Av.qu.F8D-W-> 1997-1998; ALHAMBRA 1996-2000; GOLF VAR./VENTO 1996-1999; Golf 1996-1997; Audi A6/Wagon F >4A-W 1996-1997; SHARAN/SYNCRO 1995-2000; Audi A4 F>8D-W-.. 1995-1997; Audi A4 qu. F>8D-W-.. 1995-1997; Golf 96 1995-1996; Golf Var./Vento 96 1995-1996; Audi A6/Wagon 96 1995-1996; Passat 1994-1997; Golf Cabrio 1994-1996; Golf/Ecomatic 95 1994-1995; Golf Var./Vento 95 1994-1995; Audi A6/Wagon 95 1994-1995; Audi Cabrio. 1993-1998; Golf/Var. syncro 1993-1997; Audi 90 1993-1995; Jetta GLX 94 1993-1994; Audi 90 93 1992-1993; GOLF/Ecomatic 1991-1994; DIES.-IND.-MOT.1,9>2,0 1990-2007.
