N90631901 Hex Socket Head Collared Bolt
- N90631901This pageNot stocked
Apr 2008 - N90631906Current number
Special order item. Delivery time may vary.
About This Part
Superseded part number
This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VAG is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

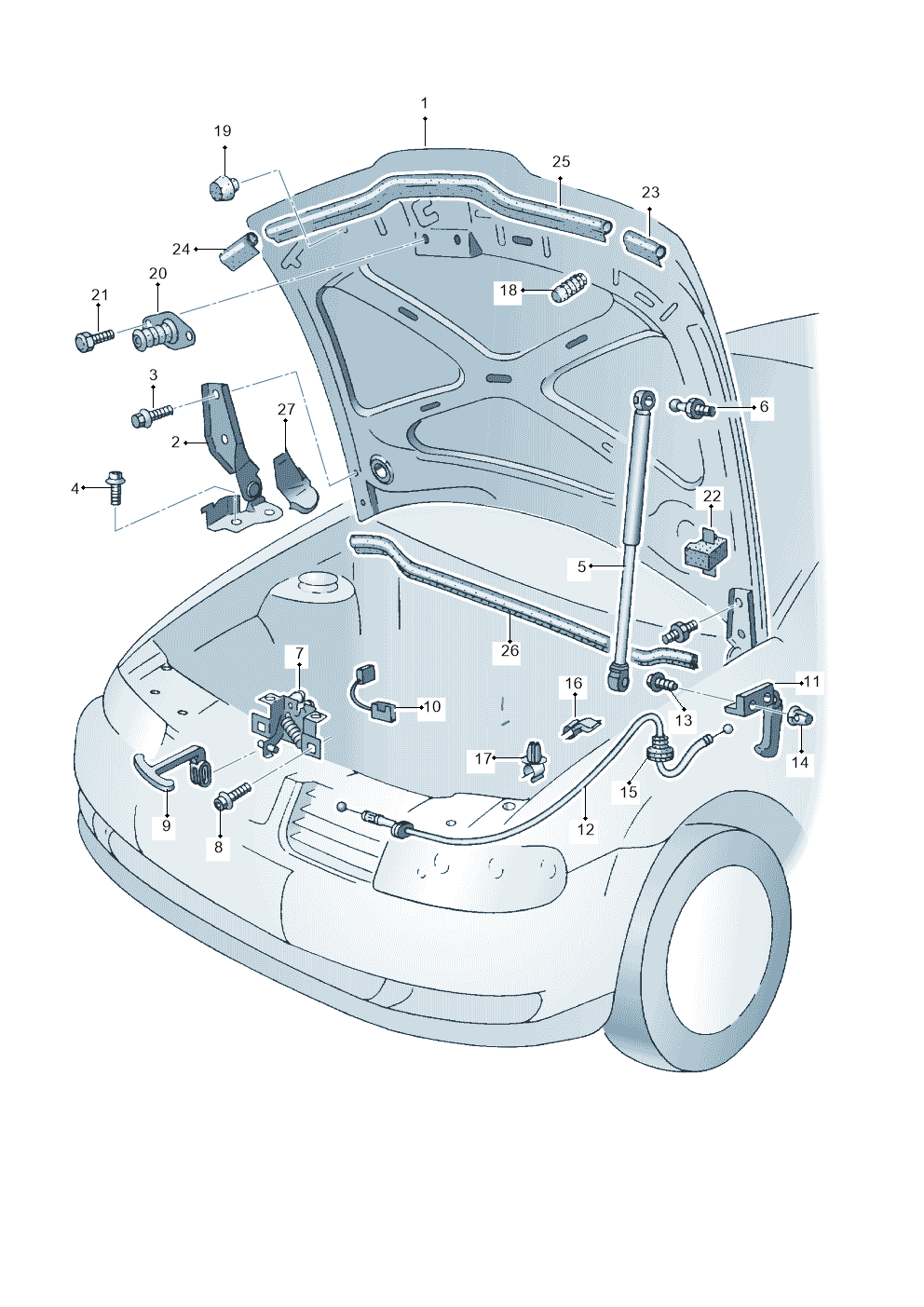

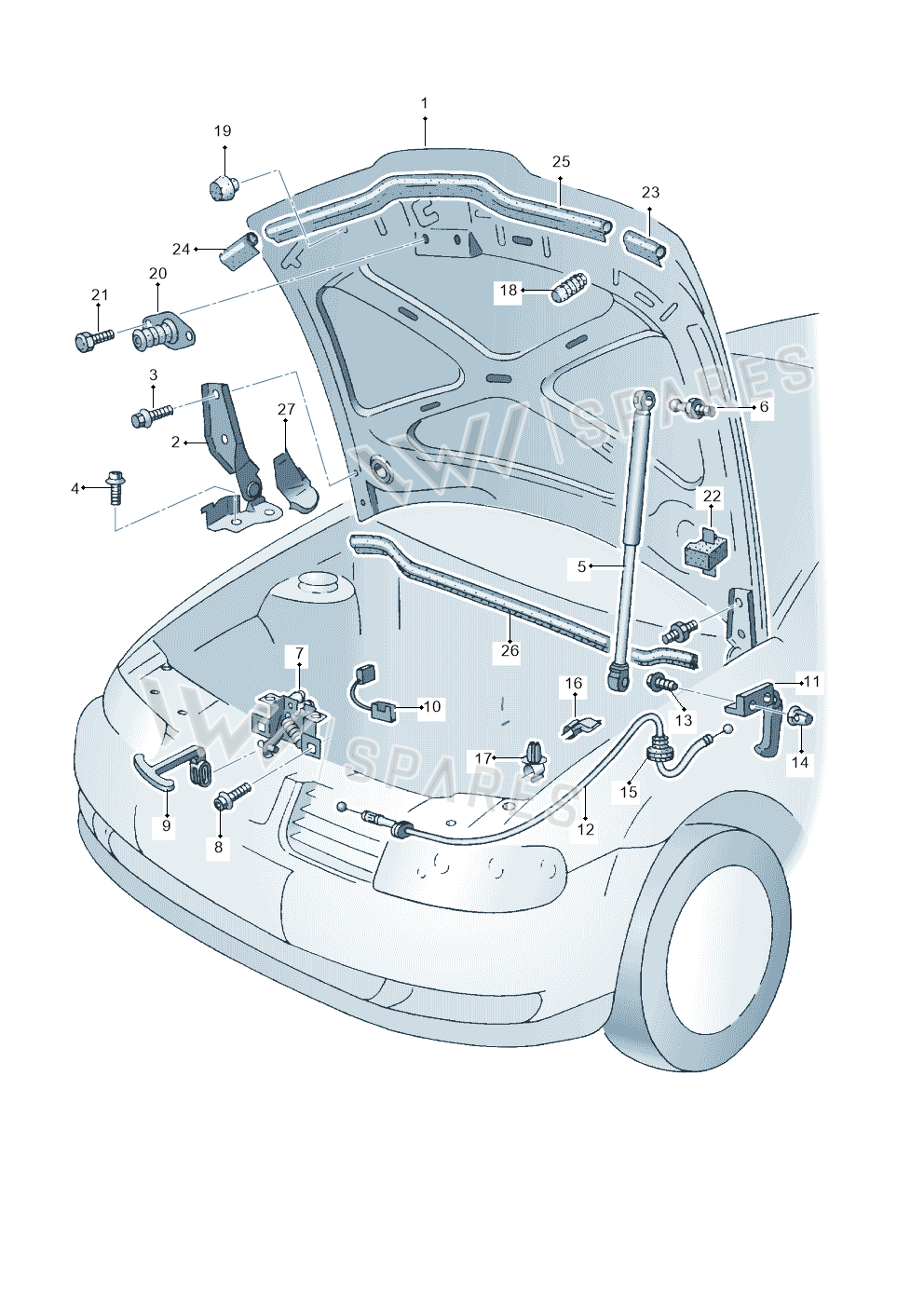

6 vehiclesHex Socket Head Collared Bolt — locate Hex Socket Head Collared Bolt in the official exploded view and explore the surrounding assembly.
Parts in this assembly28
- 1Bonnet 1M0823033D
- 2HingeLeft1M0823301B
- 2HingeRight1M0823302B
- 3Bolt N01021527
- 5G Fill Str 1M0823359A
- 6Stud 1J6827439A
- 7Lock 1M0823503K
- 7Lock 1M0823503L
- 7Lock 1M0823503J
- 8Bolt N90820401
- 10Switch 1M0953236
- 11Handle 1H2823533
- 11Handle 1H1823533
- 12Lid Cable 1M2823531A
- 12Lid Cable 1M1823531A
- 13Screw N90548803
- 14Part 811807577C
- 15Grommet 357823591
- 16Bracket 1M0823397
- 17Cable Tie 3D0971838N
- 18Buffer 357827500
- 19Buffer 357827499
- 20Lock 1M0823581A
- 22Filler Piece 1M0823729A
- 25Gasket 1M0823737F
- 26Seal 1M0823723
- 27CoverRight1M0823630
- 27CoverLeft1M0823629
Vehicle fitment table6
Europe (6)
| Vehicle | Years | Pos. | Qty | PR |
|---|---|---|---|---|
| TOLEDO/LEON/LEON-4 | 2001-2006 | 4 | 4 | |
| POLO | 1999-2001 | 3, 7 | 8 | L0L |
| TOLEDO/LEON/LEON-4 | 1998-2001 | 4 | 4 | |
| LT, LT 4X4 | 1996-2003 | 4, 13 | X | |
| ALHAMBRA | 1996-2000 | 11 | 8 | |
| POLO | 1994-1999 | 7 | 8 |
Diagrams & fitment data powered by oemdiagrams.com
Hex Socket Head Collared Bolt is fitted on: TOLEDO/LEON/LEON-4 2001-2006; POLO 1999-2001; TOLEDO/LEON/LEON-4 1998-2001; LT, LT 4X4 1996-2003; ALHAMBRA 1996-2000; POLO 1994-1999.
