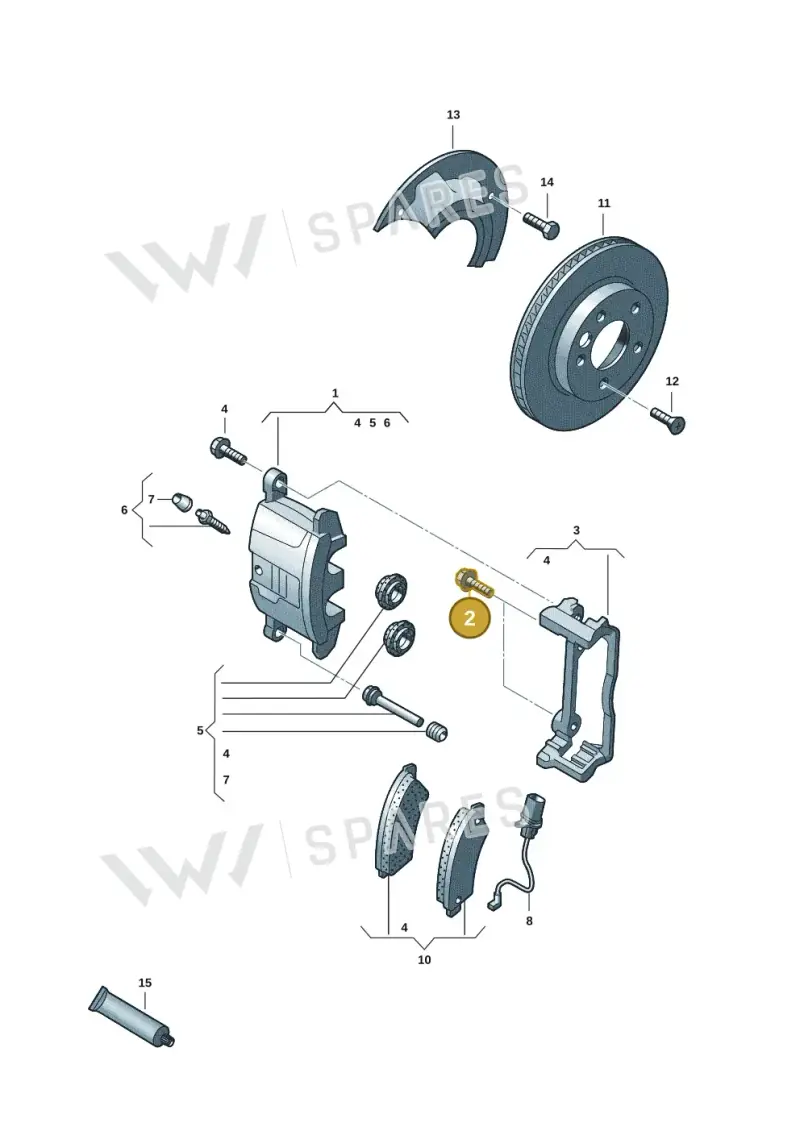

Number 2 marks the part’s position in the exploded view.
Product overview
Genuine OEM Volkswagen Hexagon Bolt, part number N90685403. This bolt is used to secure components within the brake caliper assembly. It is positioned as item 2 in the brake diagram. The bolt has a length of 0.06 meters and a width of 0.035 meters. Genuine OEM bolts are manufactured to precise tolerances, ensuring proper fitment and torque retention for critical braking system components.
Catalogue entry: BOLT M16X1,5X48 ×4.
Fitted with: N91017302 SCREW, N90305304 BOLT, 7LA698151 BR. LINING, 7LA698151B BR. LINING, 7LA698151D BR. LINING, 7E0615301D BRAKEDISC, G052150A2 GREASE, 7E0615311B COV. PLATE, 7E0615312B COV. PLATE, 7LA615123 HOUSING, 7LA615124 HOUSING, 7LA615125 PLATE BRAK.
Technical details
- Category
- Brakes
- Country of origin
- Italy
- Customs (HS) code
- 73181588
- Manufacturer
- Porsche
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 6 × 3.5 × 3.5 cm
- Shipping weight
- 0.12 kg
Specifications
As recorded in the manufacturer’s parts catalogue for this part number.
- Thread
- M16x1.5x48 mm
Why buy from WW Spares?
- ✓ Genuine OEM inventory sourced directly from factory networks
- ✓ Fitment support from workshop-seasoned parts specialists
- ✓ Global logistics with customs-ready documentation
Need help confirming compatibility? Talk to a specialist
Parts diagram & fitment

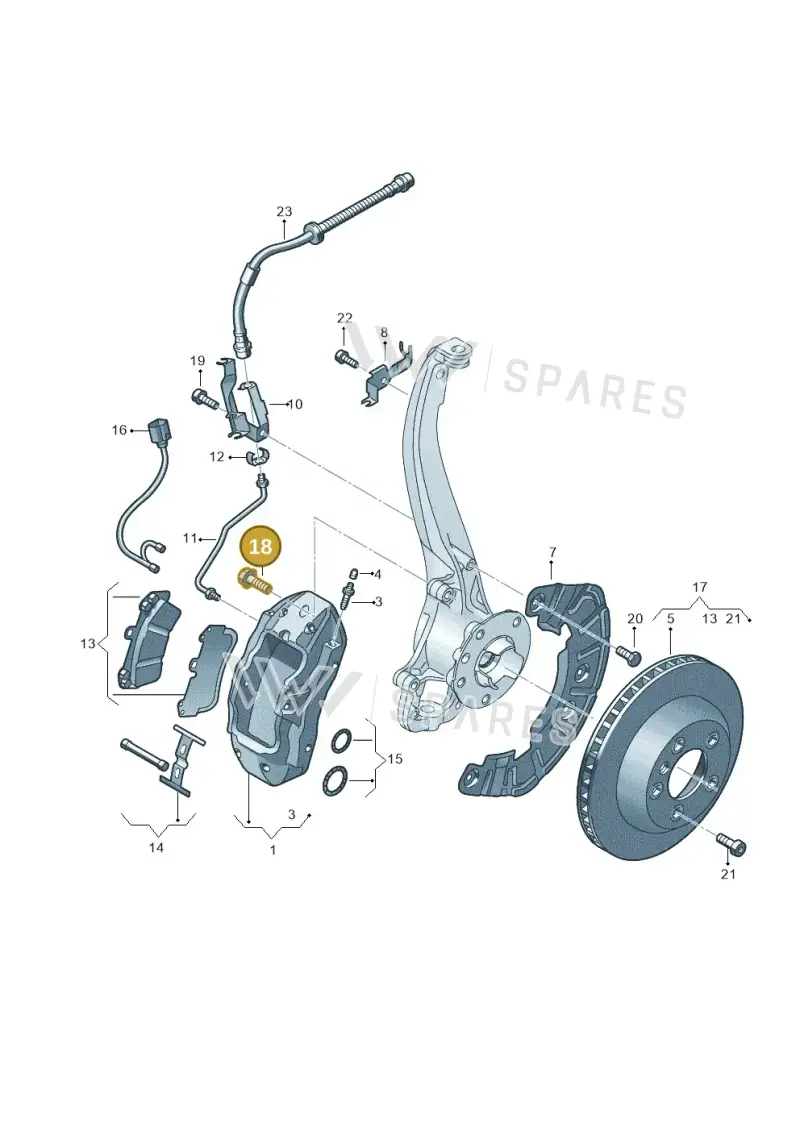

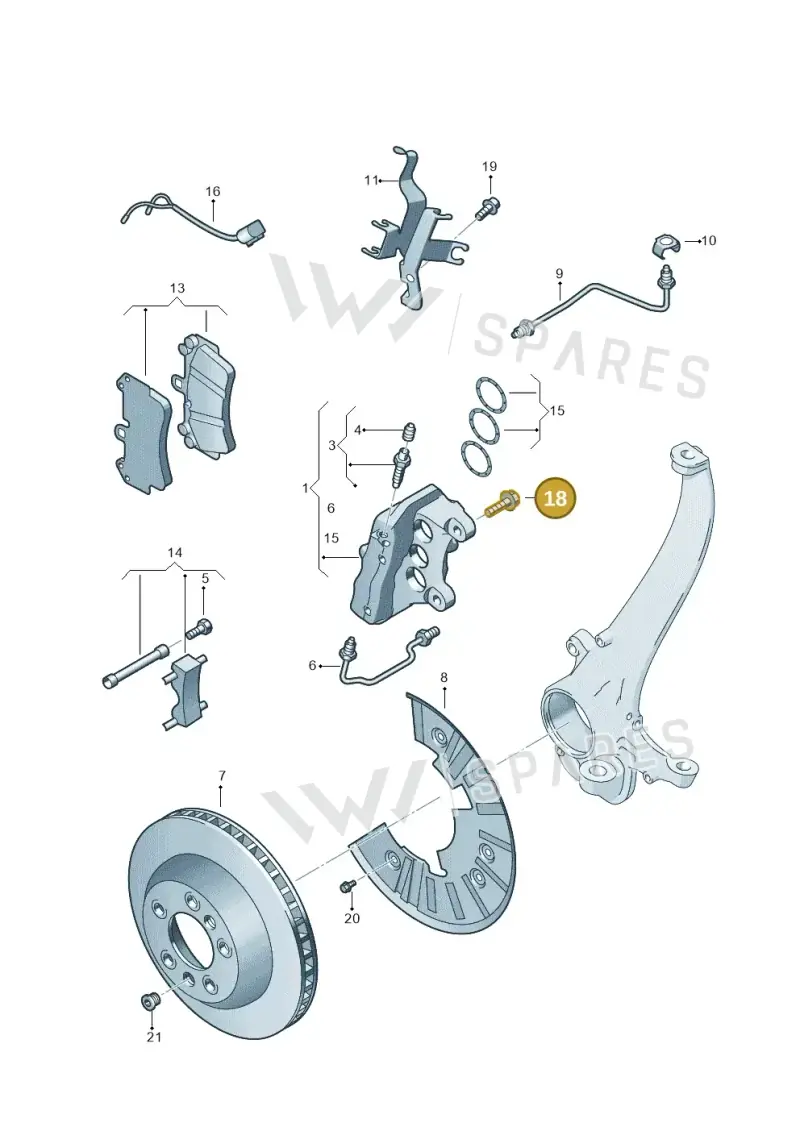

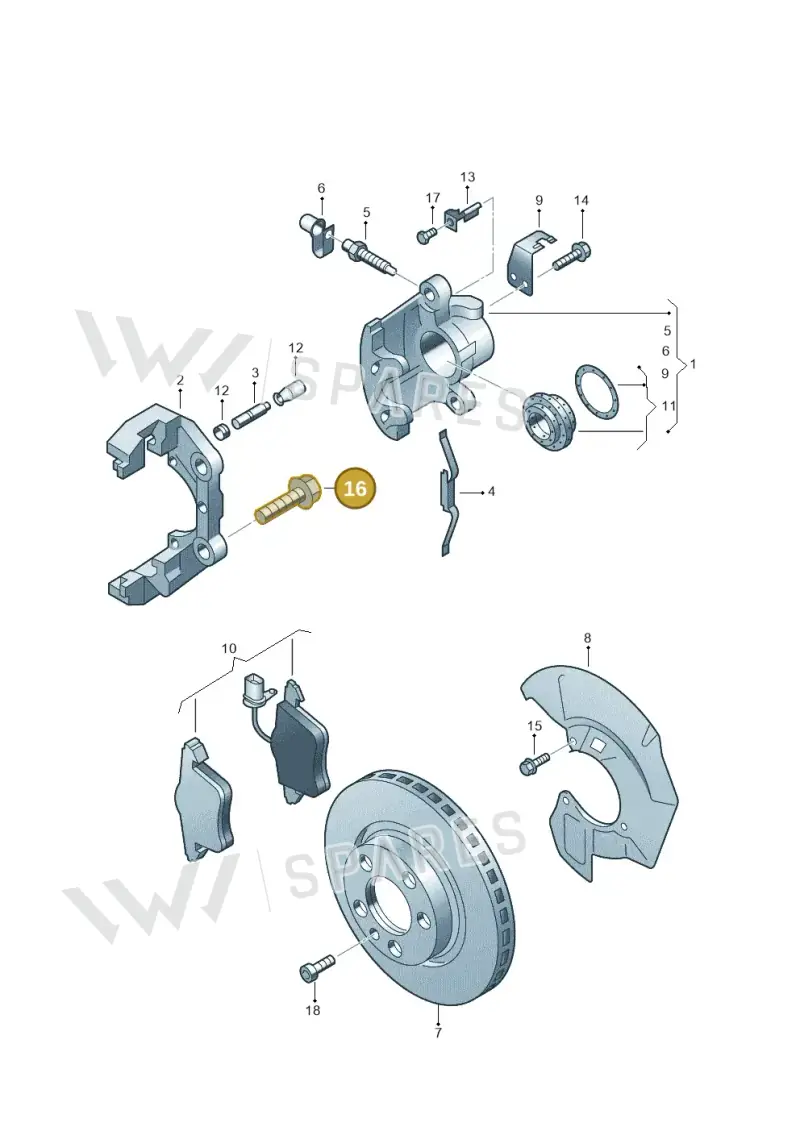

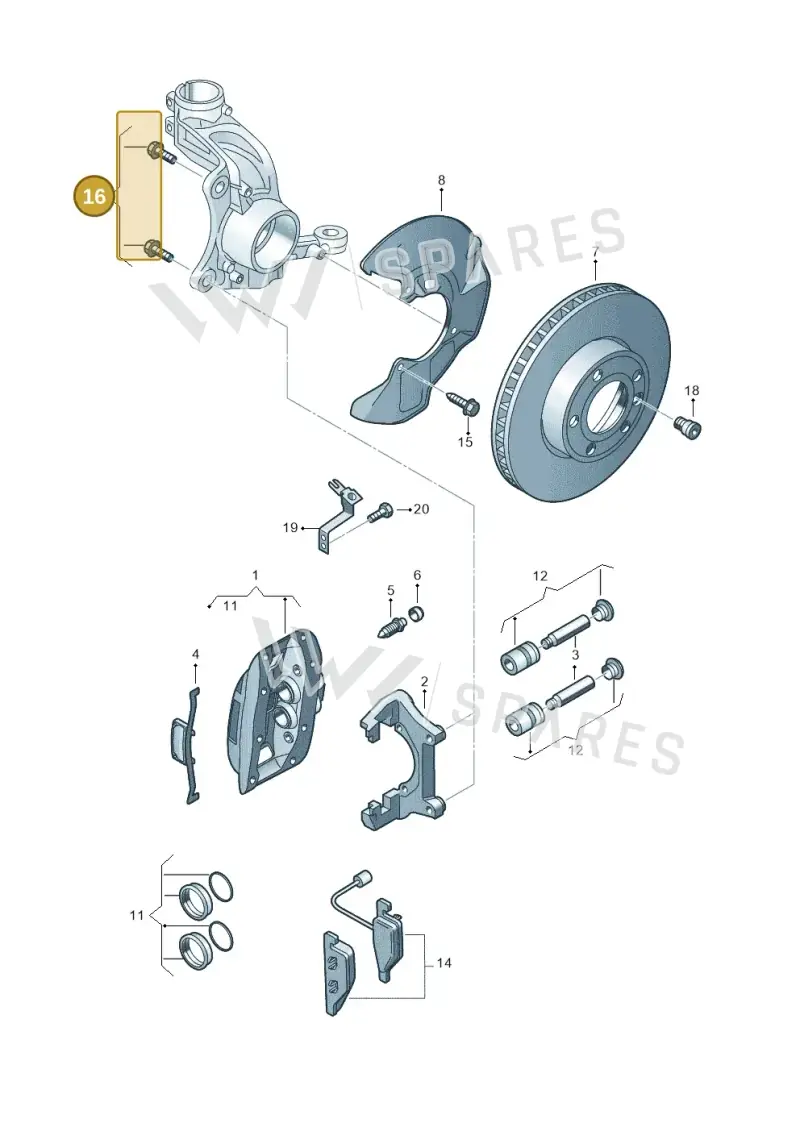

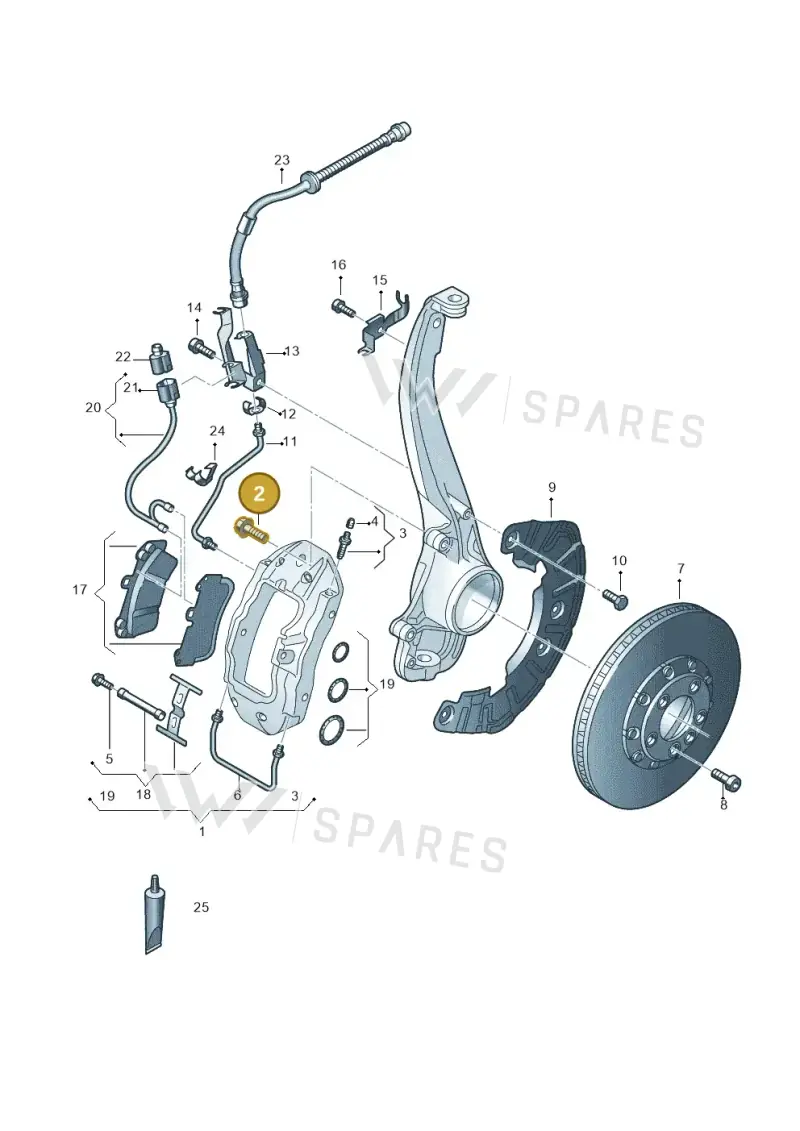

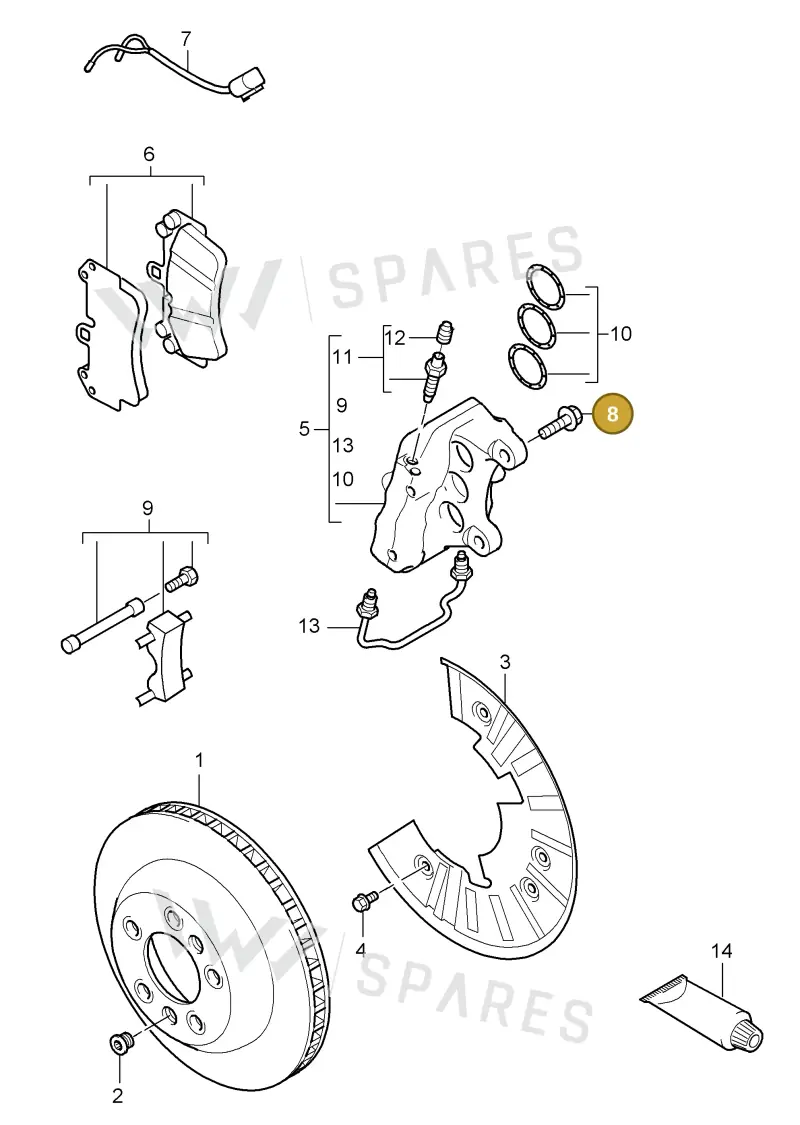

36 vehiclesHexagon Bolt — locate N90685403 Volkswagen Hexagon Bolt | Brakes in the official exploded view and explore the surrounding assembly.
Standard part (a norm part such as a bolt, nut or clip) — used across many models; the vehicle list shows where this exact number is fitted.
Parts in this assembly22
- 1Calliper 7L6615124H
- 3Dust Cap 8A0615273
- 4Part 211611483
- 5Bolt 7L0615141
- 6Pipe 7L0615701
- 7BrakediscRight7L6615302N
- 7BrakediscLeft7L6615301N
- 8Cov Plate 7L0615311B
- 9Brake LineRight7L0614162B
- 9Brake LineLeft7L0614161B
- 10Spring 1H0611715
- 11BracketLeft7L0614513A
- 11BracketRight7L0614514A
- 11BracketRight7L0971004A
- 11BracketLeft7L0971003A
- 13Part 7L0698151Q
- 14Fixing Set 7L0698269A
- 15Gask Set 7L6698471A
- 16Sender 7L0907637
- 19Screw N90308607
- 20Bolt N01023714
- 21ScrewRightN91028202
Vehicle fitment table36
Europe (35)
| Vehicle | Years | Pos. | Qty | PR |
|---|---|---|---|---|
| transport. multivan | 2019-2024 | 18 | 4 | |
| caravelle | 2019-2024 | 18 | 4 | |
| Single-cab transp. | 2019-2024 | 18 | 4 | |
| caravelle | 2015-2019 | 16 | 4 | |
| Single-cab transp. | 2015-2019 | 16 | 4 | |
| California Camper | 2015-2019 | 16 | 4 | |
| Touareg BlueMotion | 2014-2018 | 18 | 4 | |
| touareg | 2012-2014 | 18 | 4 | |
| transp. caravelle | 2011-2015 | 16 | 4 | |
| transp. dropside | 2011-2015 | 16 | 4 | |
| California Camper | 2011-2015 | 16 | 4 | |
| touareg | 2010-2012 | 18 | 4 | |
| Audi Q7 qu. 3.0 TDI | 2009-2015 | 2 | 4 | 1LF |
| transp. caravelle | 2009-2011 | 16 | 4 | |
| transp. dropside | 2009-2011 | 16 | 4 | |
| California Camper | 2009-2011 | 16 | 4 | |
| transp. caravelle | 2008-2009 | 16 | 4 | |
| transp. dropside | 2008-2009 | 16 | 4 | |
| California Camper | 2008-2009 | 16 | 4 | 2E3 |
| Touareg 08> | 2007- | 12, 18 | 4 | 1LB |
| TRANSPORTER GESCHL. 08 | 2007- | 16 | 4 | |
| TRANSPORTER OFFEN 08 | 2007- | 16 | 4 | 2E3 |
| CAMPMOBIL-T5 08 | 2007- | 16 | 4 | 2E3 |
| Cayenne | 2007-2010 | 9 | 4 | |
| Audi Q7 07> | 2006- | 2 | 4 | 1LF |
| TRANSPORTER/4MOTION 07 | 2006-2007 | 16 | 4 | |
| TRANSPORTER OFFEN (7J) 07 | 2006-2007 | 16 | 4 | 2E3 |
| CAMPMOBIL (T5) 07 | 2006-2007 | 16 | 4 | 2E3 |
| Touareg | 2005-2006 | 12, 18 | 4 | 1LB |
| TRANSPORTER/4MOTION 06 | 2005-2006 | 16 | 4 | 2E3 |
| TRANSPORTER 06 | 2005-2006 | 16 | 4 | 2E3 |
| CAMPMOBILE(T5) | 2004-2006 | 16 | 4 | 2E3 |
| Touareg | 2003-2005 | 12, 18 | 4 | 1LB |
| TRANSPORTER | 2003-2005 | 16 | 4 | |
| Cayenne | 2002-2006 | 9 | 4 |
Platform / generic diagrams (1)
| Vehicle | Years | Pos. | Qty | PR |
|---|---|---|---|---|
| 7L6 platform | 18 | 4 |
