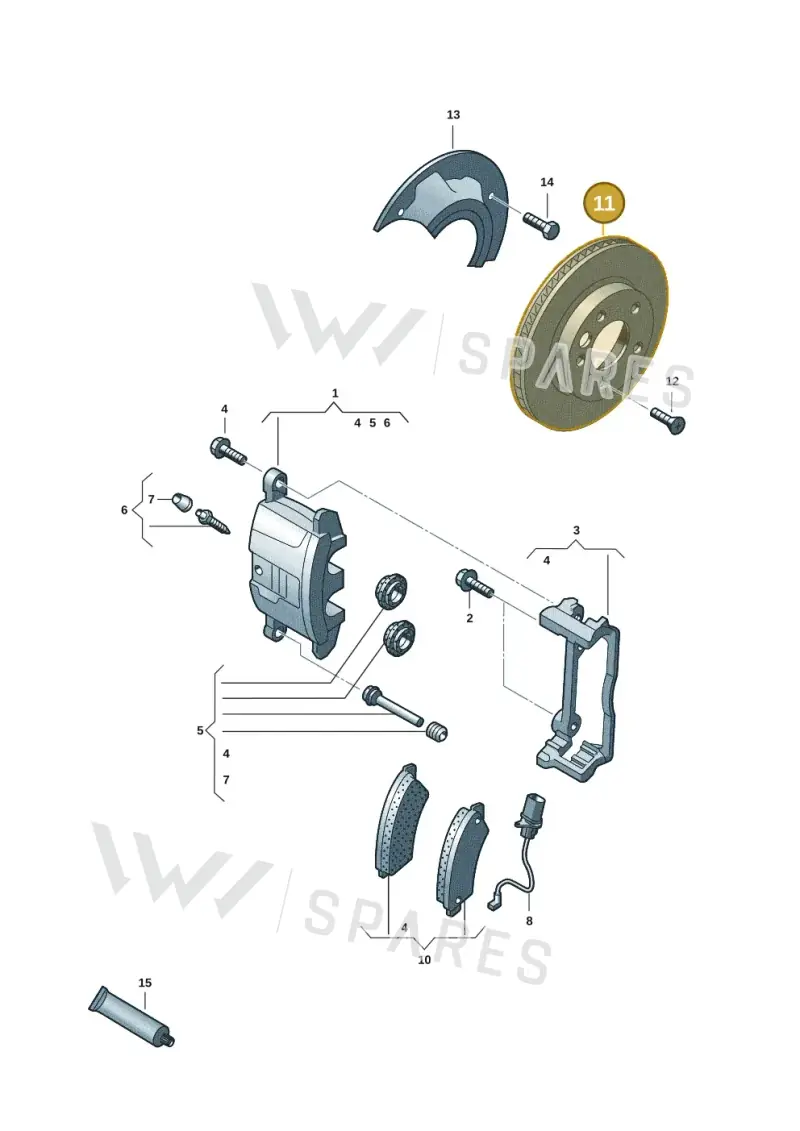

Number 11 marks the part’s position in the exploded view.
Product overview
Genuine OEM Volkswagen Brake Disc, part number 7E0615301D. A rotating disc that the brake pads clamp onto to slow down or stop the vehicle. It is shown as part 11 in the brake assembly diagram. The disc has a diameter of 0.308 meters and weighs 10.061 kg. Genuine OEM brake discs are manufactured with precise metallurgy and surface finish to ensure consistent heat dissipation, optimal friction characteristics, and a long service life under demanding braking conditions.
Catalogue entry: BRAKEDISC ×2.
Fitted with: N90685403 BOLT, 7LA698151 BR. LINING, 7LA698151B BR. LINING, 7LA698151D BR. LINING, N91017302 SCREW, G052150A2 GREASE, 7LA615123 HOUSING, 7LA615124 HOUSING, 7LA615125 PLATE BRAK.
Technical details
- Category
- Brakes
- Country of origin
- Germany
- Customs (HS) code
- 87083091
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 30.8 × 30.8 × 5.5 cm
- Shipping weight
- 10.06 kg
Specifications
As recorded in the manufacturer’s parts catalogue for this part number.
- Dimensions
- 308x29.5
Why buy from WW Spares?
- ✓ Genuine OEM inventory sourced directly from factory networks
- ✓ Fitment support from workshop-seasoned parts specialists
- ✓ Global logistics with customs-ready documentation
Need help confirming compatibility? Talk to a specialist
Parts diagram & fitment
6 vehiclesBrake Disc — locate 7E0615301D Volkswagen Brake Disc | Genuine OEM in the official exploded view and explore the surrounding assembly.
Parts in this assembly20
- 1HousingRight7H0615124A
- 1HousingLeft7H0615123A
- 2Plate Brak 7H0615125A
- 3Part 7D0615143
- 4Spring 7D0615295A
- 5Valve 4F0615273
- 6Part 211611483
- 7Brake Disc JZW615301E
- 8Cov PlateRight7E0615312B
- 8Cov PlateLeft7E0615311B
- 9Retaining 7H0937539D
- 10Brk Lining 7H0698151
- 10Part JZW698151Q
- 11Gask Set 7H0698471
- 12Bushes 7M3698647A
- 13Bracket 7M3615133
- 14Bolt N01020812
- 15Bolt N90305304
- 16Bolt N90685403
- 18Screw N91017302
Compatible / alternative parts(2)
Vehicle fitment table6
Europe (6)
| Vehicle | Years | Pos. | Qty |
|---|---|---|---|
| transport. multivan | 2019-2024 | 7 | 2 |
| caravelle | 2019-2024 | 7 | 2 |
| Single-cab transp. | 2019-2024 | 7 | 2 |
| caravelle | 2015-2019 | 7 | 2 |
| Single-cab transp. | 2015-2019 | 7 | 2 |
| California Camper | 2015-2019 | 7 | 2 |
Diagrams & fitment data powered by oemdiagrams.com
7E0615301D Volkswagen Brake Disc | Genuine OEM is fitted on: transport. multivan 2019-2024; caravelle 2019-2024; Single-cab transp. 2019-2024; caravelle 2015-2019; Single-cab transp. 2015-2019; California Camper 2015-2019.
