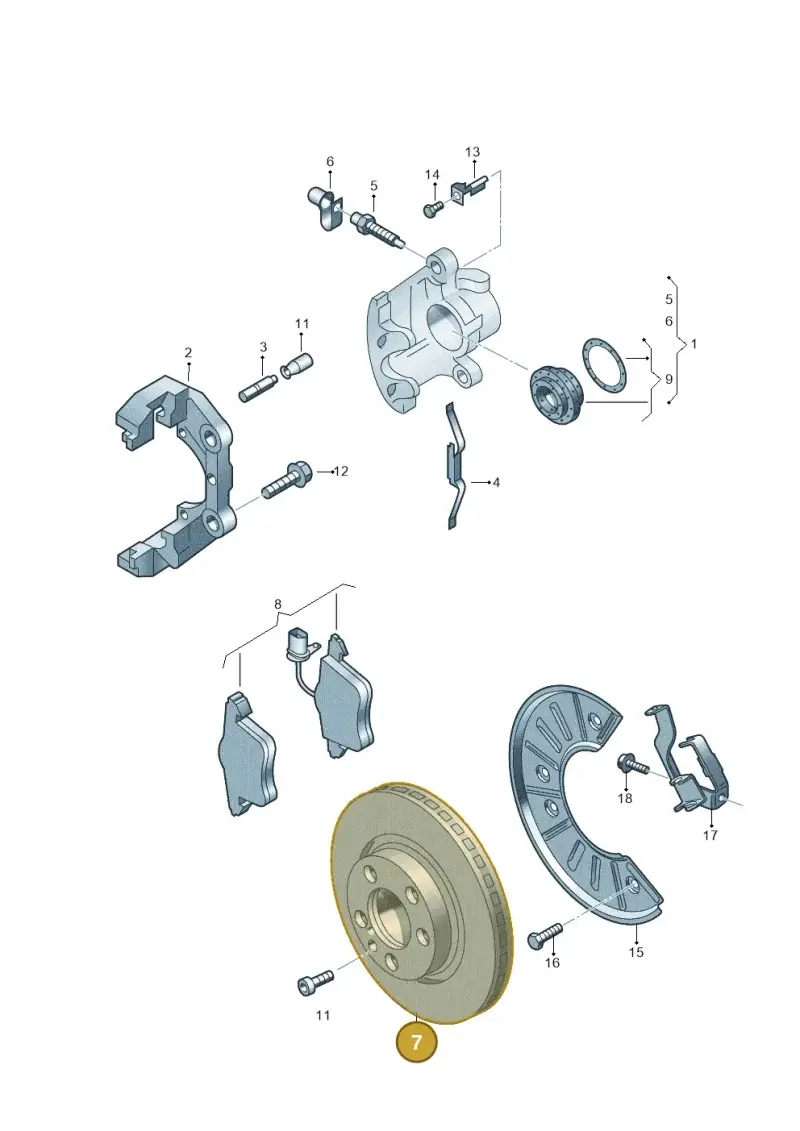

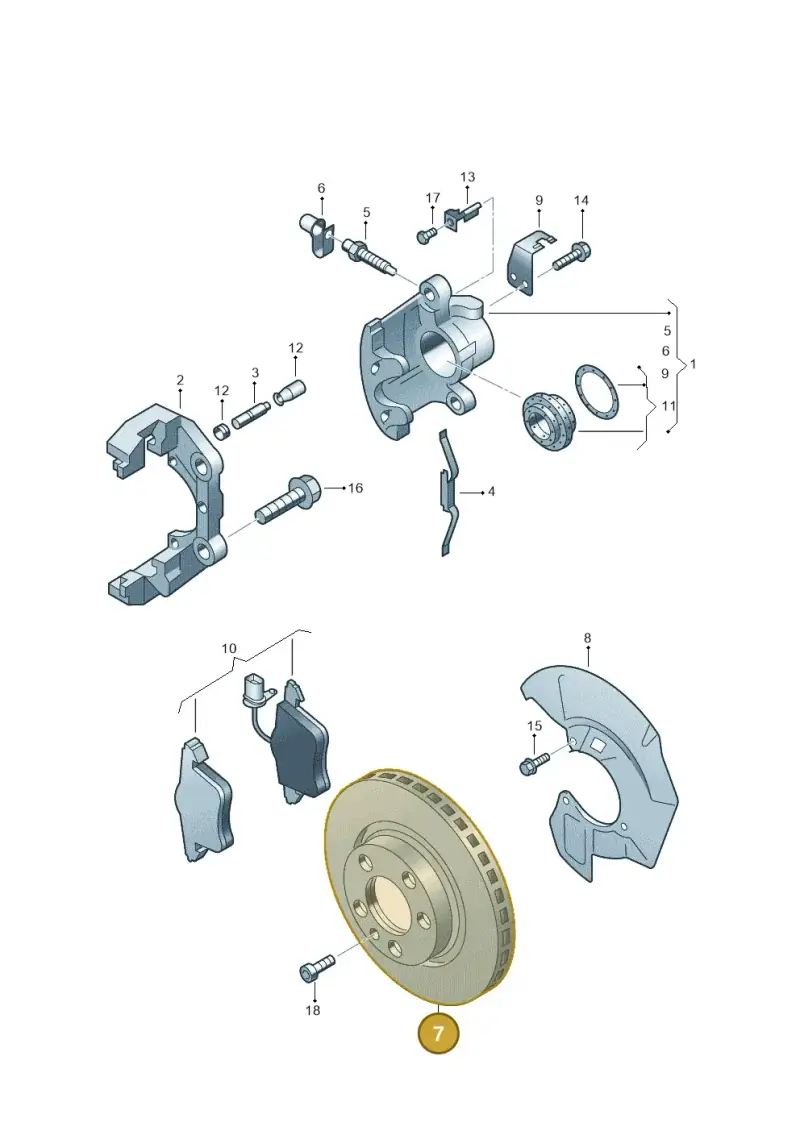

Number 7 marks the part’s position in the exploded view.
Product overview
Genuine OEM Volkswagen brake disc, part number 7H0615301D. This brake disc is a critical component of the vehicle's braking system. It is the surface onto which the brake pads apply pressure to generate friction, thereby slowing or stopping the vehicle. This part is located at position 7 in the brake system diagram. Genuine OEM brake discs are manufactured with precise metallurgy and balancing for optimal heat dissipation and consistent stopping power, ensuring driver safety.
Technical details
- Category
- Brakes
- Customs (HS) code
- 87083091
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 7 × 37 × 34 cm
- Shipping weight
- 10.68 kg
Why buy from WW Spares?
- ✓ Genuine OEM inventory sourced directly from factory networks
- ✓ Fitment support from workshop-seasoned parts specialists
- ✓ Global logistics with customs-ready documentation
Need help confirming compatibility? Talk to a specialist
Parts diagram & fitment
22 vehiclesBrake Disc — locate 7H0615301D Volkswagen Brake Disc | Genuine OEM in the official exploded view and explore the surrounding assembly.
Superseded by 7H0615301F — the later replacement part.
This part is marked discontinued by the manufacturer (since 2015-06-01); contact us to check current availability.
Parts in this assembly19
- 1HousingRight7L6615124F
- 1HousingLeft7L6615123F
- 2Plate Brak 7L6615125A
- 3Part 7D0615143
- 4Spring 7D0615295A
- 5Valve 4F0615273
- 6Part 7D0611483
- 7Brake Disc JZW615301E
- 8Cov PlateRight7E0615312
- 8Cov PlateLeft7E0615311
- 10Brk Lining 7H0698151
- 10Part JZW698151Q
- 11Gask Set 7H0698471
- 12Bushes 7M3698647A
- 13Bracket 7M3615133
- 15Bolt N90305302
- 16Bolt N90685403
- 17Bolt N0102085
- 18Screw N91017302
Compatible / alternative parts(2)
Vehicle fitment table22
Europe (22)
| Vehicle | Years | Pos. | Qty | PR |
|---|---|---|---|---|
| transp. caravelle | 2011-2015 | 7 | 2 | |
| transp. dropside | 2011-2015 | 7 | 2 | |
| California Camper | 2011-2015 | 7 | 2 | |
| transp. caravelle | 2009-2011 | 7 | 2 | |
| transp. dropside | 2009-2011 | 7 | 2 | |
| California Camper | 2009-2011 | 7 | 2 | |
| transp. caravelle | 2008-2009 | 7 | 2 | |
| transp. dropside | 2008-2009 | 7 | 2 | |
| California Camper | 2008-2009 | 7 | 2 | 2E3 |
| Touareg 08> | 2007- | 7 | 2 | 1LB |
| TRANSPORTER GESCHL. 08 | 2007- | 7 | 2 | |
| TRANSPORTER OFFEN 08 | 2007- | 7 | 2 | 2E3 |
| CAMPMOBIL-T5 08 | 2007- | 7 | 2 | 2E3 |
| TRANSPORTER/4MOTION 07 | 2006-2007 | 7 | 2 | |
| TRANSPORTER OFFEN (7J) 07 | 2006-2007 | 7 | 2 | 2E3 |
| CAMPMOBIL (T5) 07 | 2006-2007 | 7 | 2 | 2E3 |
| Touareg | 2005-2006 | 7 | 2 | 1LB |
| TRANSPORTER/4MOTION 06 | 2005-2006 | 7 | 2 | 2E3 |
| TRANSPORTER 06 | 2005-2006 | 7 | 2 | 2E3 |
| CAMPMOBILE(T5) | 2004-2006 | 7 | 2 | 2E3 |
| Touareg | 2003-2005 | 7 | 2 | 1LB |
| TRANSPORTER | 2003-2005 | 7 | 2 |
Diagrams & fitment data powered by oemdiagrams.com
7H0615301D Volkswagen Brake Disc | Genuine OEM is fitted on: transp. caravelle 2011-2015; transp. dropside 2011-2015; California Camper 2011-2015; transp. caravelle 2009-2011; transp. dropside 2009-2011; California Camper 2009-2011; transp. caravelle 2008-2009; transp. dropside 2008-2009; California Camper 2008-2009; Touareg 08> 2007-; TRANSPORTER GESCHL. 08 2007-; TRANSPORTER OFFEN 08 2007-; CAMPMOBIL-T5 08 2007-; TRANSPORTER/4MOTION 07 2006-2007; TRANSPORTER OFFEN (7J) 07 2006-2007; CAMPMOBIL (T5) 07 2006-2007; Touareg 2005-2006; TRANSPORTER/4MOTION 06 2005-2006; TRANSPORTER 06 2005-2006; CAMPMOBILE(T5) 2004-2006; Touareg 2003-2005; TRANSPORTER 2003-2005.
