N90802503 End Cap
- 002301115BNot stocked
Oct 1999 - N90802501Not stocked
Jun 2005 - N90802503This pageNot stocked
Jun 2011 - N0119182Current number
Special order item. Delivery time may vary.
About This Part
Superseded part number
This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for SEAT is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

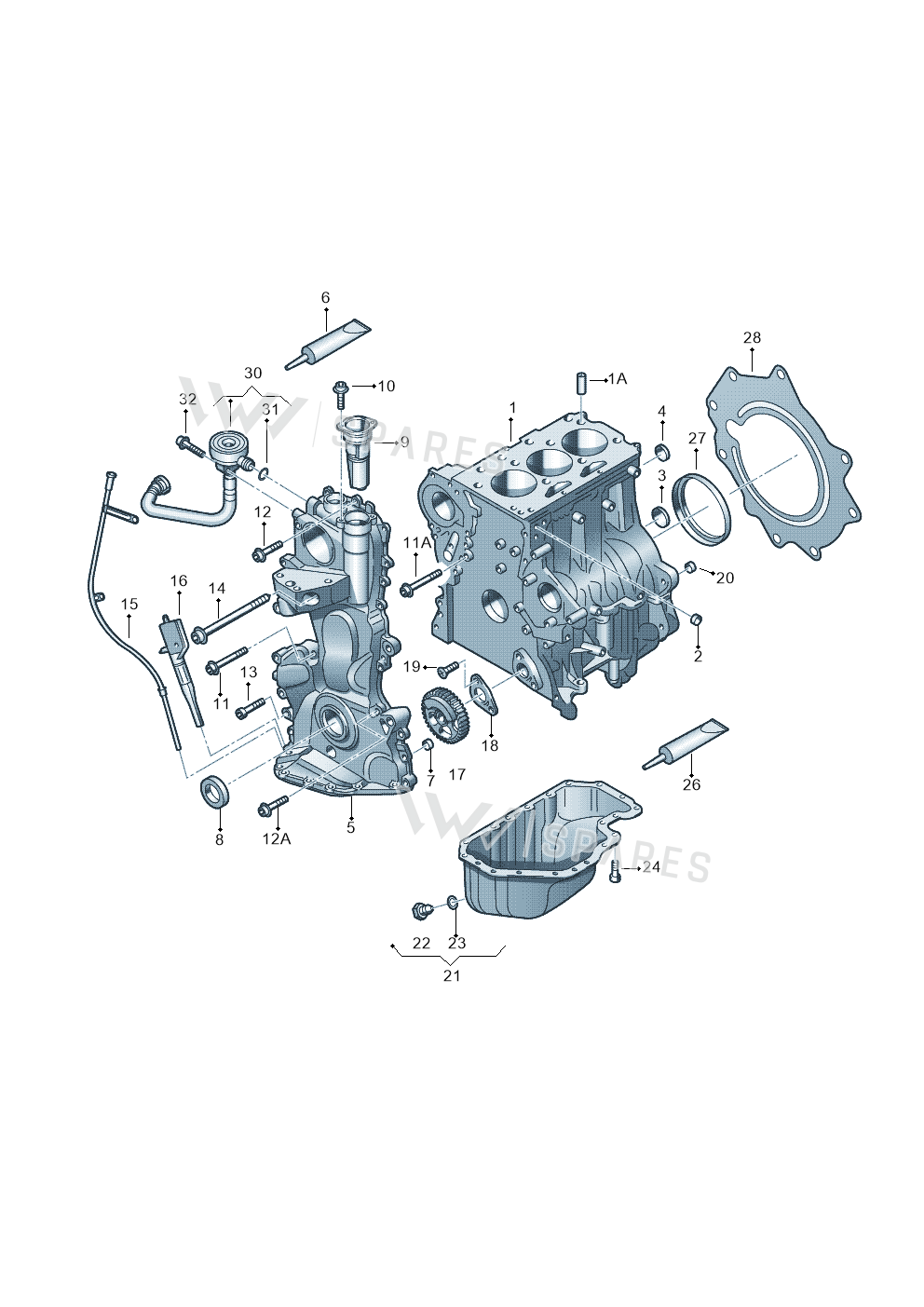

12 vehiclesEnd Cap — locate End Cap in the official exploded view and explore the surrounding assembly.
Parts in this assembly29
- 1ASleeve N90505001
- 3Cover 036103113A
- 4Cover N0119017
- 5Case 03E109210L
- 5Part 03E109210K
- 6Seal D174003A2
- 7Part N0432072
- 8Seal 038103085E
- 9Separator 03C103464A
- 10Screw N10248001
- 11Screw N10582103
- 11AScrew N90861204
- 12Bolt N10700201
- 12AScrew N10700202
- 13Screw N90870504
- 18Washer 03D103323
- 19Bolt N90954902
- 20Sleeve 022103139
- 21Oil Sump 03D103601G
- 22Plug N90288901
- 23Seal Ring N0138492
- 24Screw N10226103
- 26Seal D176404A2
- 27Seal 021103051C
- 28Cover 03D103647C
- 30Valve 03E103201C
- 31Seal Ring N90613201
- 32Screw N10432603
- 32Screw N10709301
Vehicle fitment table12
Europe (12)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| Ibiza Reference | 2008-2011 | 2 | 1 | D21 | |
| Polo | 2008-2009 | 2 | 1 | ||
| FOX M.05> | 2005- | 2 | 1 | ||
| POLO | 2005- | 2 | 1 | MM2 | |
| IBIZA 06> | 2005- | 2 | 1 | ||
| CORDOBA 06> | 2005- | 2 | 1 | ||
| CORDOBA/SE241 | 2002-2005 | 2 | 1 | ||
| POLO | 2001-2005 | 2 | 1 | BMD | MM2 |
| IBIZA | 2001-2005 | 2 | 1 | ||
| LUPO/3L TDI | 1998-2003 | 5, 2 | 2 | ||
| AROSA | 1997-2003 | 5, 2 | 2 | ||
| CADDY PICKUP | 1996-2000 | 20 | 1 |
Diagrams & fitment data powered by oemdiagrams.com
End Cap is fitted on: Ibiza Reference 2008-2011; Polo 2008-2009; FOX M.05> 2005-; POLO 2005-; IBIZA 06> 2005-; CORDOBA 06> 2005-; CORDOBA/SE241 2002-2005; POLO 2001-2005; IBIZA 2001-2005; LUPO/3L TDI 1998-2003; AROSA 1997-2003; CADDY PICKUP 1996-2000.
