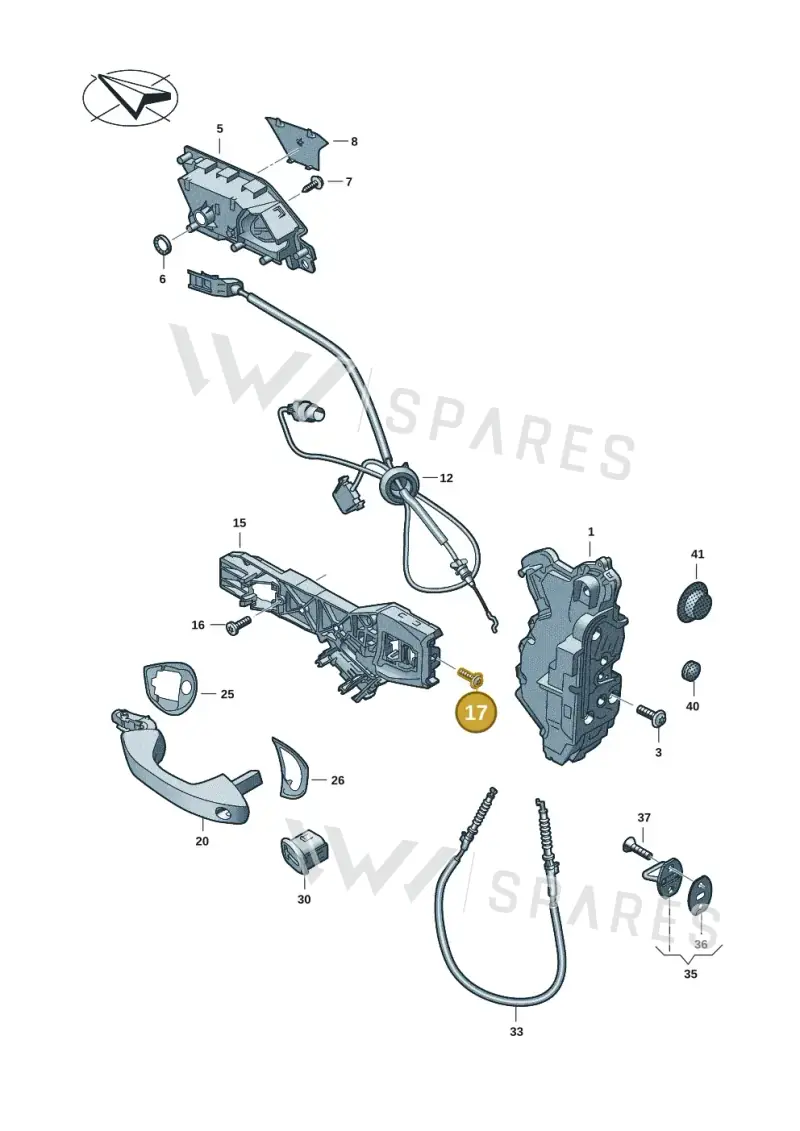

Number 17 marks the part’s position in the exploded view.
Product overview
Genuine OEM Volkswagen Hexagon Socket Head Bolt, part number WHT009575. This bolt features a hexagonal socket in the head, allowing for tightening and loosening with an Allen key. It is used in the door latch assembly. Genuine OEM bolts ensure precise fitment and material integrity, crucial for the reliable operation of door mechanisms.
Catalogue entry: BOLT M8X29; driver side.
Technical details
- Category
- Doors & Windows
- Customs (HS) code
- 73181568
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 3 × 1.7 × 1.7 cm
- Shipping weight
- 0.01 kg
Specifications
As recorded in the manufacturer’s parts catalogue for this part number.
- Thread
- M8x29 mm
- Thread
- M4x27 mm
Equipment codes
- L0L
- L0R
PR codes identify the factory option a part belongs to; your vehicle’s are listed on the data sticker in the boot well or service booklet.
Why buy from WW Spares?
- ✓ Genuine OEM inventory sourced directly from factory networks
- ✓ Fitment support from workshop-seasoned parts specialists
- ✓ Global logistics with customs-ready documentation
Need help confirming compatibility? Talk to a specialist
Parts diagram & fitment
8 vehiclesHexagon Socket Head Bolt — locate WHT009575 Volkswagen Hexagon Socket Head Bolt | Genuine OEM in the official exploded view and explore the surrounding assembly.
Standard part (a norm part such as a bolt, nut or clip) — used across many models; the vehicle list shows where this exact number is fitted.
Parts in this assembly48
- 1LockLeft3J1837015
- 1LockLeft3J1837016
- 1LockLeft3J1837016A
- 1LockRight3J2837015
- 1LockRight3J2837015A
- 1LockRight3J2837016
- 1LockRight3J2837016A
- 1Lock 5TB837015C
- 1Lock 5TB837015E
- 1Lock 5TB837016B
- 1Lock 5TB837016C
- 1Lock 5TB837016D
- 1Lock 5TB837016E
- 1Lock 5TC837015B
- 1Lock 5TC837015C
- 1Lock 5TC837015D
- 1Lock 5TC837015E
- 1Lock 5TC837016B
- 1Lock 5TC837016C
- 1Lock 5TC837016D
- 1Lock 5TC837016E
- 1LockLeft3J1837015A
- 1Lock 5TB837015B
- 1Lock 5TB837015D
- 3Screw WHT005504A
- 5Inn Act 5H0837114A
- 5Inn ActLeft5H1837114A
- 5Inn ActRight5H2837113A
- 5Inn ActLeft5H1837113A
- 6Washer WHT007934
- 7Bolt N91191401
- 8PartRight5H0837936
- 8PartLeft5H0837935
- 12Cable 5H0837085
- 12CableLeft5H4972295C
- 12CableLeft5H4972295D
- 12CableLeft5H4972295E
- 12CableLeft5H4972295F
- 12CableLeft5H4972295L
- 12CableLeft5H4972295M
- 12CableLeft5H4972295N
- 12CableLeft5H4972295P
- 12CableLeft5H4972295Q
- 12CableLeft5H4972295R
- 12CableLeft5H4972295S
- 12CableLeft5H4972295T
- 12CableRight5H4972296C
- 12CableRight5H4972296D
Vehicle fitment table8
Europe (5)
| Vehicle | Years | Pos. | Qty | PR |
|---|---|---|---|---|
| Tiguan 2.0 | 2023- | 17 | 1 | L0L |
| Formentor TSI CUPRA | 2020- | 17 | 1 | |
| Leon style | 2019- | 17 | 1 | |
| Golf 2.0 BlueMotion | 2019-2024 | 17 | 1 | L0L |
| ID.3 Pro | 2019-2024 | 17 | 1 | L0L |
Other markets (3)
| Vehicle | Years | Pos. | Qty | PR |
|---|---|---|---|---|
| Tiguan | 2024- | 17 | 1 | |
| ID.3 | 2021- | 17 | 1 | |
| Golf 1.5 | 2020- | 17 | 2 |
Diagrams & fitment data powered by oemdiagrams.com
WHT009575 Volkswagen Hexagon Socket Head Bolt | Genuine OEM is fitted on: Tiguan 2.0 2023-; Formentor TSI CUPRA 2020-; Leon style 2019-; Golf 2.0 BlueMotion 2019-2024; ID.3 Pro 2019-2024; Tiguan 2024-; ID.3 2021-; Golf 1.5 2020-.
