028121145E Flange
Special order item. Delivery time may vary.
About This Part
Discontinued by the manufacturer
This part number has been discontinued and can no longer be ordered. Contact us and we will look for an alternative.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VAG is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

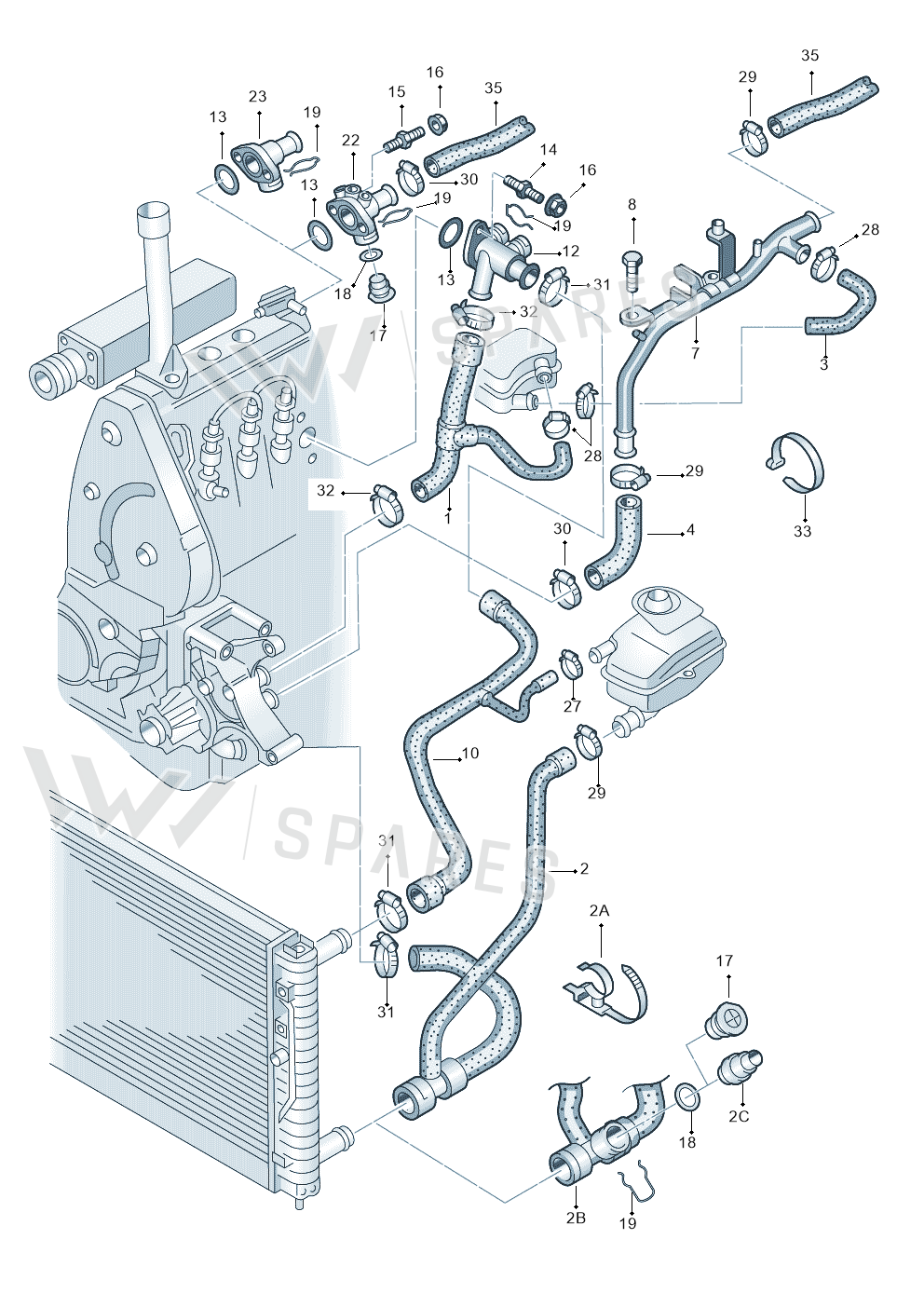

6 vehiclesFlange — locate Flange in the official exploded view and explore the surrounding assembly.
Parts in this assembly30
- 1Hose 028121053K
- 1Hose 028121053AA
- 2Hose 8D0121055F
- 2ACable Tie 4A0121093
- 3Hose 058121058B
- 4Hose 048121063
- 7Water Pipe 028121065L
- 7Water Pipe 028121065S
- 7Water Pipe 028121065AD
- 7Water Pipe 028121065AE
- 8Bolt N0102935
- 10Hose 8D0121101F
- 10Hose 8D0121101AJ
- 12Flange 028121132
- 13Seal Ring 037121687
- 14Bolt 027121631A
- 14Bolt N90593201
- 16Collar Nut N90175203
- 17Bungs 357121140
- 18Seal Ring N90316801
- 19Spring 032121142
- 23Flange 028121144N
- 27Clamp N90770201
- 27Clamp N90655301
- 28Clamp N10258201
- 29Clamp N90561801
- 30Clamp N10258101
- 31Clamp N10258001
- 32Clamp N0164041
- 33Cable Tie N0209022
Vehicle fitment table6
Europe (6)
| Vehicle | Years | Pos. | Qty |
|---|---|---|---|
| Passat syncro/4Motion | 1998-2000 | 22 | 1 |
| Passat | 1997-2000 | 22 | 1 |
| Audi A4/Av.qu.F8D-W-> | 1997-1998 | 22 | |
| Audi A4/Avant F8D-W-> | 1997-1998 | 22 | 1 |
| Audi A4 F>8D-W-.. | 1995-1997 | 22 | |
| Audi A4 qu. F>8D-W-.. | 1995-1997 | 22 |
Diagrams & fitment data powered by oemdiagrams.com
Flange is fitted on: Passat syncro/4Motion 1998-2000; Passat 1997-2000; Audi A4/Av.qu.F8D-W-> 1997-1998; Audi A4/Avant F8D-W-> 1997-1998; Audi A4 F>8D-W-.. 1995-1997; Audi A4 qu. F>8D-W-.. 1995-1997.
