03C121005N Coolant Pump With Glued In Sealing Ring
- 03C121005NThis pageNot stocked
Aug 2008 - 03C121005RNot stocked
May 2010 - 03C121008BNot stocked
Jan 2012 - 03C121008ENot stocked
Dec 2013 - 03C121008HCurrent number
Special order item. Delivery time may vary.
About This Part
Superseded part number
This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VAG is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

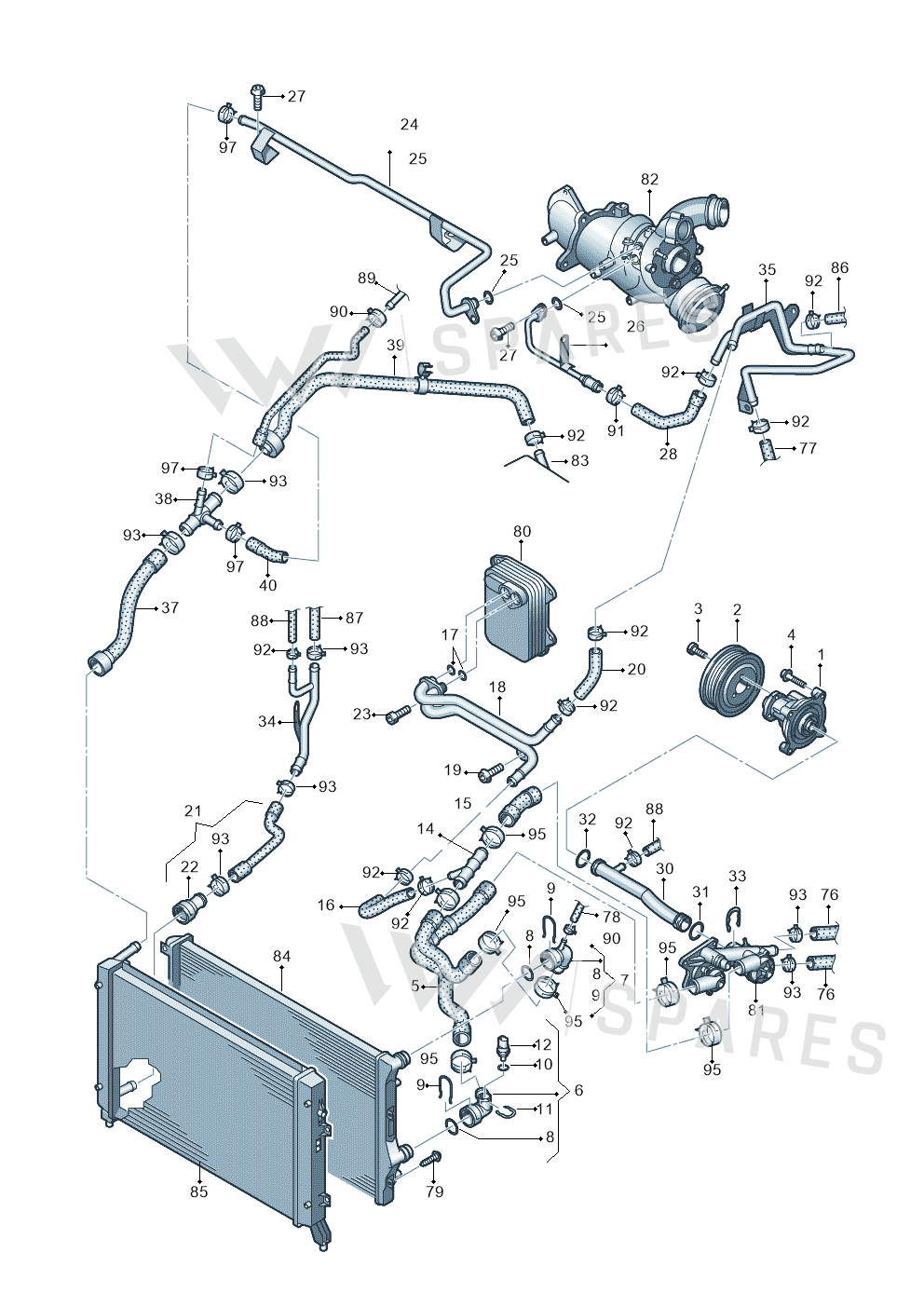

9 vehiclesCoolant Pump With Glued In Sealing Ring — locate Coolant Pump With Glued In Sealing Ring in the official exploded view and explore the surrounding assembly.
Parts in this assembly48
- 1Water Pump 03C121008BX
- 1Water Pump 03C121008B
- 2Pulley 03D121028B
- 3Screw N91052201
- 4Screw N91097201
- 5Hose 1K0121049CG
- 5Hose 1K0122101HR
- 6Coupl Piece 1K0122291P
- 6Coupl Piece 1K0122291AD
- 7Coupl Piece 1K0122291BE
- 8Seal Ring N90765301
- 9Spring 1J0121142
- 10Seal Ring N90316801
- 11Spring 032121142
- 12Switch 1J0959481A
- 12Sender 06A919501A
- 14Adapter N90692901
- 15Hose 1K0121101CQ
- 16Hose 1K0121096BN
- 17Seal Ring 03C121437
- 18Water Pipe 03C121050G
- 19Screw N90355405
- 20Hose 1K0121058BC
- 21Part 1K0122051FA
- 22Coupl Piece 3B0122291B
- 23Screw N91099101
- 24Water Pipe 03C121469F
- 25Seal Ring WHT003366
- 26Water Pipe 03C121497D
- 27Bolt N10335207
- 28Hose 1K0121063N
- 30Water Pipe 03C121065B
- 31Seal Ring 03C121666
- 32Seal Ring 03C121665
- 33Spring 03C121142
- 34Water Pipe 03C121070B
- 35Water Pipe 03C121070C
- 37Hose 1K0121101CS
- 38Junction 1K0121087P
- 39Hose 1K0121101CK
- 40Hose 1K0121447EB
- 79Bolt N90817003
- 90Clamp N90686701
- 91Clamp N90926401
- 92Clamp N90686902
- 93Clamp N90687001
- 94Clamp N90687101
- 95Clamp N90687201
Vehicle fitment table9
Europe (9)
| Vehicle | Years | Pos. | Qty | PR |
|---|---|---|---|---|
| EOS 2.0 | 2008-2010 | 1 | 1 | TU0 |
| GOLF VARIANT 07> | 2007- | 1 | 1 | D4X |
| GOLF PLUS 08> | 2007- | 1 | 1 | TU0 |
| Passat/4Motion 08 | 2007- | 1 | 1 | TU0 |
| Audi A3/S3/Sportb./qu. 08 | 2007- | 1 | 1 | TU0 |
| ALTEA 07> | 2006- | 1 | 1 | TU0 |
| JETTA 06> | 2005- | 1 | 1 | D4X |
| LEON 06> | 2005- | 1 | ||
| TOLEDO 05> | 2004- | 1 |
Diagrams & fitment data powered by oemdiagrams.com
Coolant Pump With Glued In Sealing Ring is fitted on: EOS 2.0 2008-2010; GOLF VARIANT 07> 2007-; GOLF PLUS 08> 2007-; Passat/4Motion 08 2007-; Audi A3/S3/Sportb./qu. 08 2007-; ALTEA 07> 2006-; JETTA 06> 2005-; LEON 06> 2005-; TOLEDO 05> 2004-.
