04E103170AE Sealing Flange
Special order item. Delivery time may vary.
About This Part
Discontinued by the manufacturer
This part number has been discontinued and can no longer be ordered. Contact us and we will look for an alternative.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VOLKSWAGEN is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

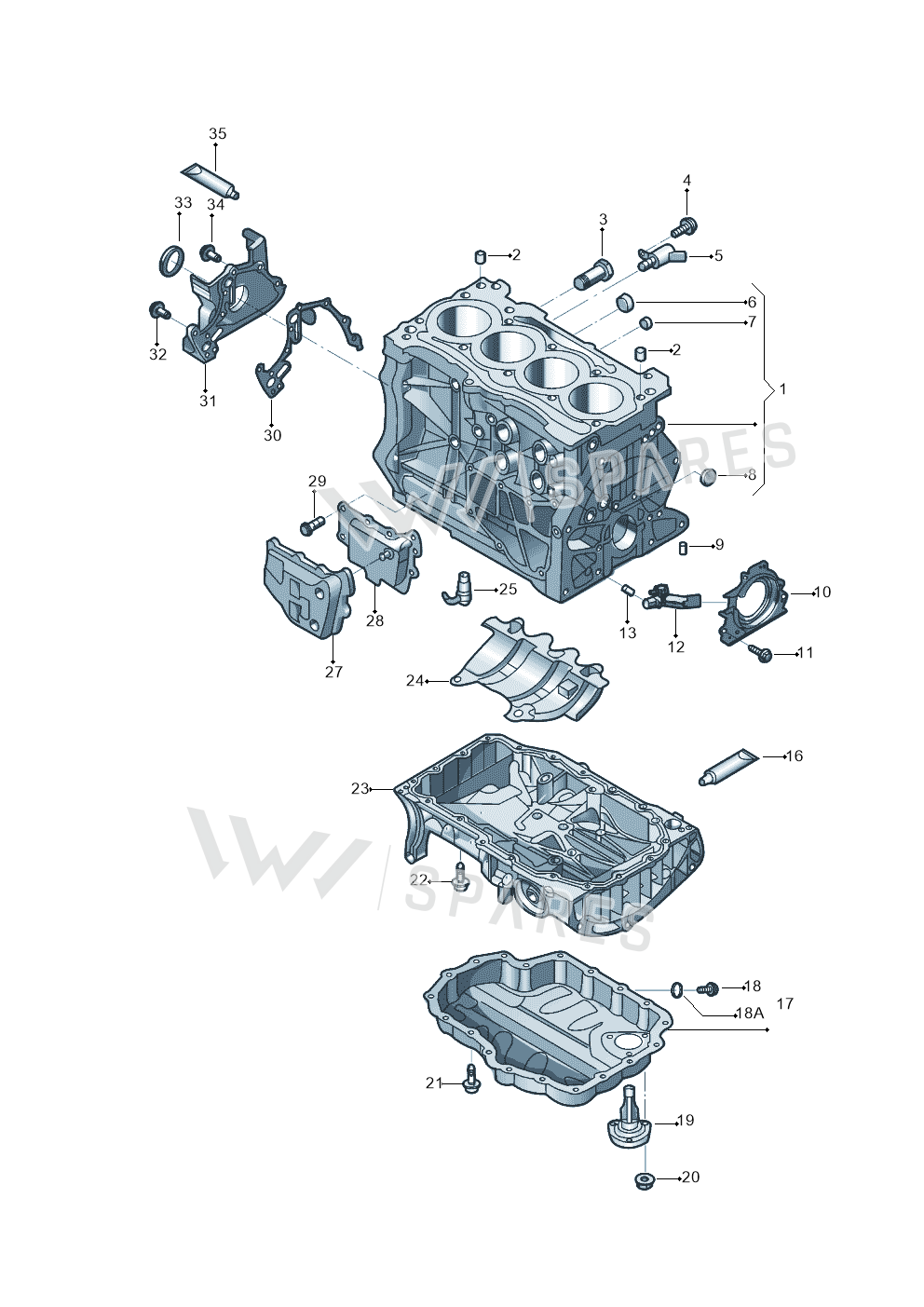

9 vehiclesSealing Flange — locate Sealing Flange in the official exploded view and explore the surrounding assembly.
Parts in this assembly31
- 2Sleeve 03C103143
- 3Bolt N90813202
- 4Bolt N91096701
- 5Valve 06E115243H
- 6Cover N0119173
- 7Cover N0119185
- 8Cover N0119098
- 9Part 026103139
- 10Flange 04E103170AP
- 10Flange 04E103170Q
- 11Bolt N10653301
- 13Part N0432072
- 16Seal D176501A1
- 17Cover 04E103600J
- 18Plug N90288901
- 18ASeal Ring N0138158
- 21Bolt N10748001
- 22Screw N90500605
- 23Oil Sump 04E103601AC
- 24Lock 04E103623S
- 24Lock 04E103623D
- 25Vent 04E103157
- 27Cover 04E103729
- 28Separator 04C103464G
- 29Bolt N90737803
- 30Seal 04C103161E
- 31Flange 04E103153B
- 32Screw N10672001
- 33Seal 04C103085B
- 33Seal 04C103085C
- 34Bolt N91108701
Vehicle fitment table9
Europe (3)
| Vehicle | Years | Pos. | Qty |
|---|---|---|---|
| Tiguan 2.0 4Motion | 2017-2024 | 10 | |
| golf 1.6 | 2015-2019 | 3 | 1 |
| jetta 2.0 | 2015-2015 | 10 | 1 |
Other markets (6)
| Vehicle | Years | Pos. | Qty |
|---|---|---|---|
| Nivus | 2020- | 3, 10 | |
| Taos 1.4 | 2020-2024 | 10 | |
| T-Cross 1,0 | 2019- | 3, 10 | |
| Jetta 1.4 | 2017-2024 | 10 | |
| POLO HATCH "ZA"06> | 2005- | 10 | |
| GOLF "ZA." | 2005-2007 | 3, 10 |
Diagrams & fitment data powered by oemdiagrams.com
Sealing Flange is fitted on: Tiguan 2.0 4Motion 2017-2024; golf 1.6 2015-2019; jetta 2.0 2015-2015; Nivus 2020-; Taos 1.4 2020-2024; T-Cross 1,0 2019-; Jetta 1.4 2017-2024; POLO HATCH "ZA"06> 2005-; GOLF "ZA." 2005-2007.
