Product overview

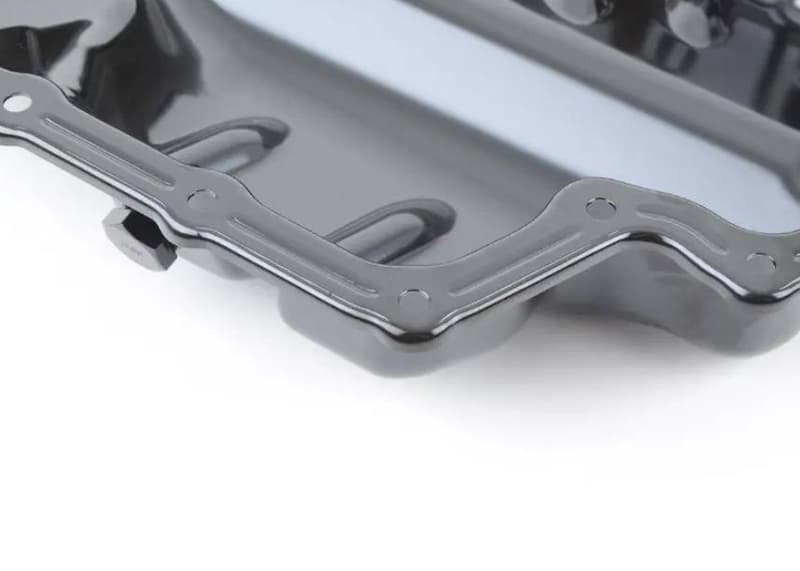

Genuine OEM Volkswagen Engine Oil Sump Pan, part number 04E103600J. This critical engine component is designed to collect and store the engine's lubricating oil, acting as a reservoir for the oil pump. It is typically located at the bottom of the engine block. Weighing approximately 1.27 kg, it features a durable black finish. Choosing a genuine OEM oil sump pan ensures an exact fit, proper sealing, and the correct internal baffling to maintain oil supply under all operating conditions, preventing oil starvation and potential engine damage.
Technical details
- Category
- Engine
- Customs (HS) code
- 84099100
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 35.7 × 28 × 7.5 cm
- Shipping weight
- 1.27 kg
Parts diagram & fitment
15 vehiclesCover For Oil Sump — locate 04E103600J Volkswagen Engine Oil Sump Pan | Genuine OEM in the official exploded view and explore the surrounding assembly.
Parts in this assembly(31)
- 2Sleeve 03C103143
- 3Bolt N90813202
- 4Bolt N91096701
- 5Valve 06E115243H
- 6Cover N0119173
- 7Cover N0119185
- 8Cover N0119098
- 9Part 026103139
- 10Flange 04E103170AE
- 10Flange 04E103170AP
- 10Flange 04E103170Q
- 11Bolt N10653301
- 13Part N0432072
- 16Seal D176501A1
- 18Plug N90288901
- 18ASeal Ring N0138158
- 21Bolt N10748001
- 22Screw N90500605
- 23Oil Sump 04E103601AC
- 24Lock 04E103623S
- 24Lock 04E103623D
- 25Vent 04E103157
- 27Cover 04E103729
- 28Separator 04C103464G
- 29Bolt N90737803
- 30Seal 04C103161E
- 31Flange 04E103153B
- 32Screw N10672001
- 33Seal 04C103085B
- 33Seal 04C103085C
- 34Bolt N91108701
Compatible / alternative parts(12)
Diagrams & fitment data powered by oemdiagrams.com
04E103600J Volkswagen Engine Oil Sump Pan | Genuine OEM is fitted on: Polo 1.6 2020-2022; Nivus 2020-; Taos 1.4 2020-2024; Jetta 1.4 2017-2024; POLO HATCH "ZA"06> 2005-; T-Cross 1,0 2019-; GOLF "ZA." 2005-2007; new beetle 2011-2016; new beetle cabriolet 2011-2016; jetta 2014-2017; Golf Estate 1.4 2014-2017; new beetle cabriolet 2016-2019; Tiguan 2.0 4Motion 2017-2024; golf 1.6 2015-2019; Rapid 2012-2022.
