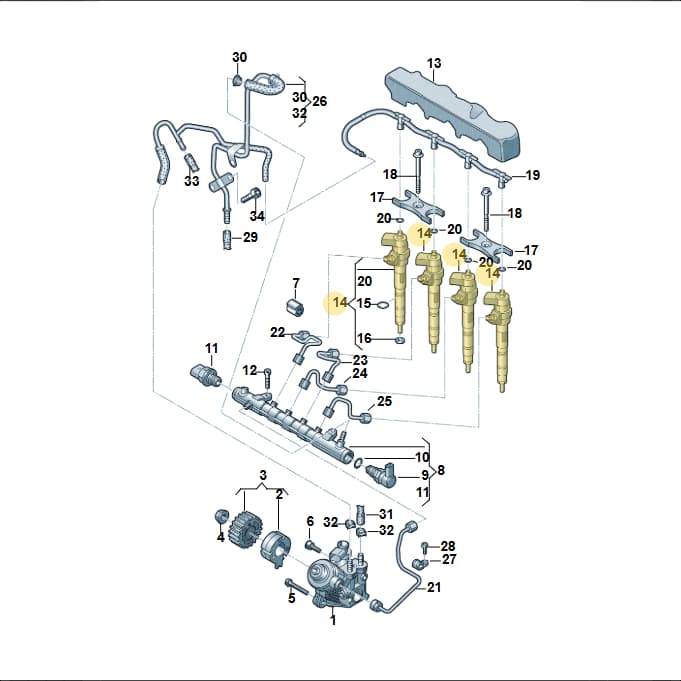

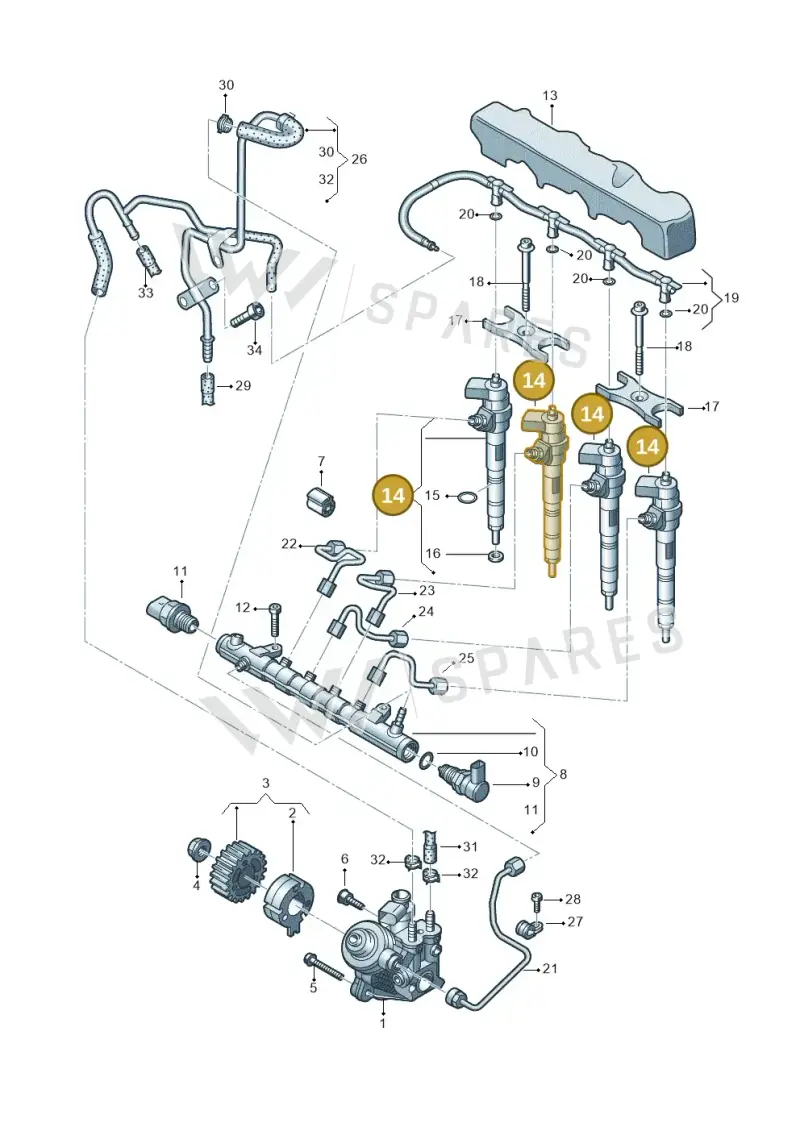

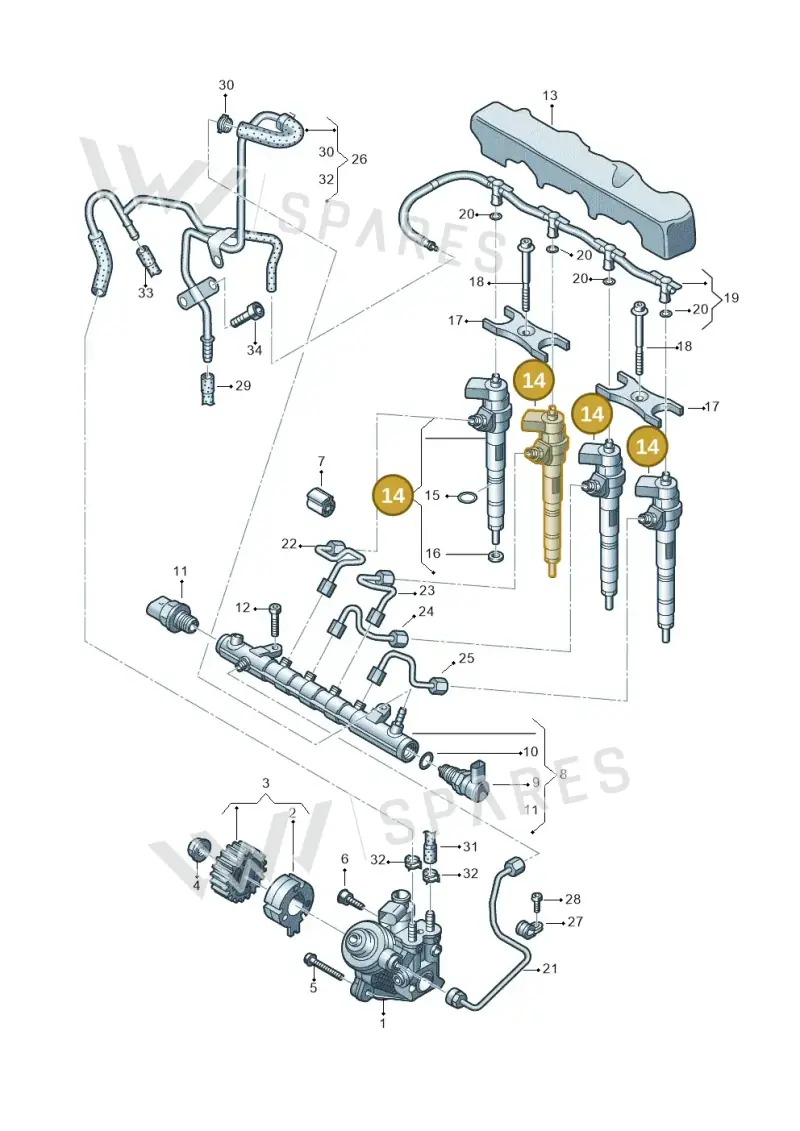

Number 14 marks the part’s position in the exploded view.
Product overview
Genuine OEM Volkswagen Injector Unit, part number 04L130277BF. This part is responsible for precisely delivering fuel into the engine cylinders under high pressure. It is installed in the fuel rail and connected to the engine's control module. Genuine OEM injectors ensure precise fuel metering and optimal engine performance.
Technical details
- Category
- Other
- Country of origin
- Czech Republic
- Customs (HS) code
- 84099900
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 21 × 6.5 × 4 cm
- Shipping weight
- 0.45 kg
Parts diagram & fitment
15 vehiclesInjector Unit — locate 04L130277BF Volkswagen Injector Unit | Genuine OEM in the official exploded view and explore the surrounding assembly.
Parts in this assembly(29)
- 1Pump 04B130755K
- 3Pulley 04L130101
- 4Collar Nut WHT002244
- 5Screw N10714501
- 6Bolt N10665001
- 7Damper 03L130118
- 8Rail 04L130089F
- 9Valve 04L130764B
- 10Seal Ring WHT008239
- 11Sensor 04L906054F
- 12Screw N91128701
- 15Seal Ring WHT000884
- 16Seal Ring 03P130519
- 16Seal Ring 059130519
- 17Clamp Piec 03L130216
- 18Screw WHT005490
- 19Pipe 04L130235B
- 19Pipe 04L130235T
- 20Seal Ring WHT007480A
- 21Pipe 04L130321E
- 22Pipe 04L130301E
- 23Pipe 04L130302D
- 24Pipe 04L130303D
- 25Pipe 04L130304D
- 26Fuel Line 04L201360AM
- 27Clamp N91171101
- 28Bolt N10335206
- 30Clamp N90986501
- 32Clamp 4B0422379
Compatible / alternative parts(12)
Diagrams & fitment data powered by oemdiagrams.com
04L130277BF Volkswagen Injector Unit | Genuine OEM is fitted on: T-Cross 1,0 2018-2024; Golf Sportsvan 1.6 2014-2020; T-Roc BlueMotion 2017-2024; golf 2.0 2016-2020; Polo 1.0 BlueMotion 2017-2024; Arona FR 2017-; Leon ST Stylance 2016-2020; Ibiza FR 2017-; Ateca Style 2016-; Audi Q2 2.0 TDI 2016-2018; Audi A3 Sportback 2016-2020; Audi A3 Cabrio 2016-2020; Kamiq 2019-; Octavia 2017-2020; Karoq 2017-2022.
