06M103603AH Engine Oil Sump Upper Part
- 06M103603AFNot stocked
Oct 2020 - 06M103603AHThis pageNot stocked
Aug 2021 - 06M103603AMCurrent number
Special order item. Delivery time may vary.
About This Part
Superseded part number
This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VAG is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

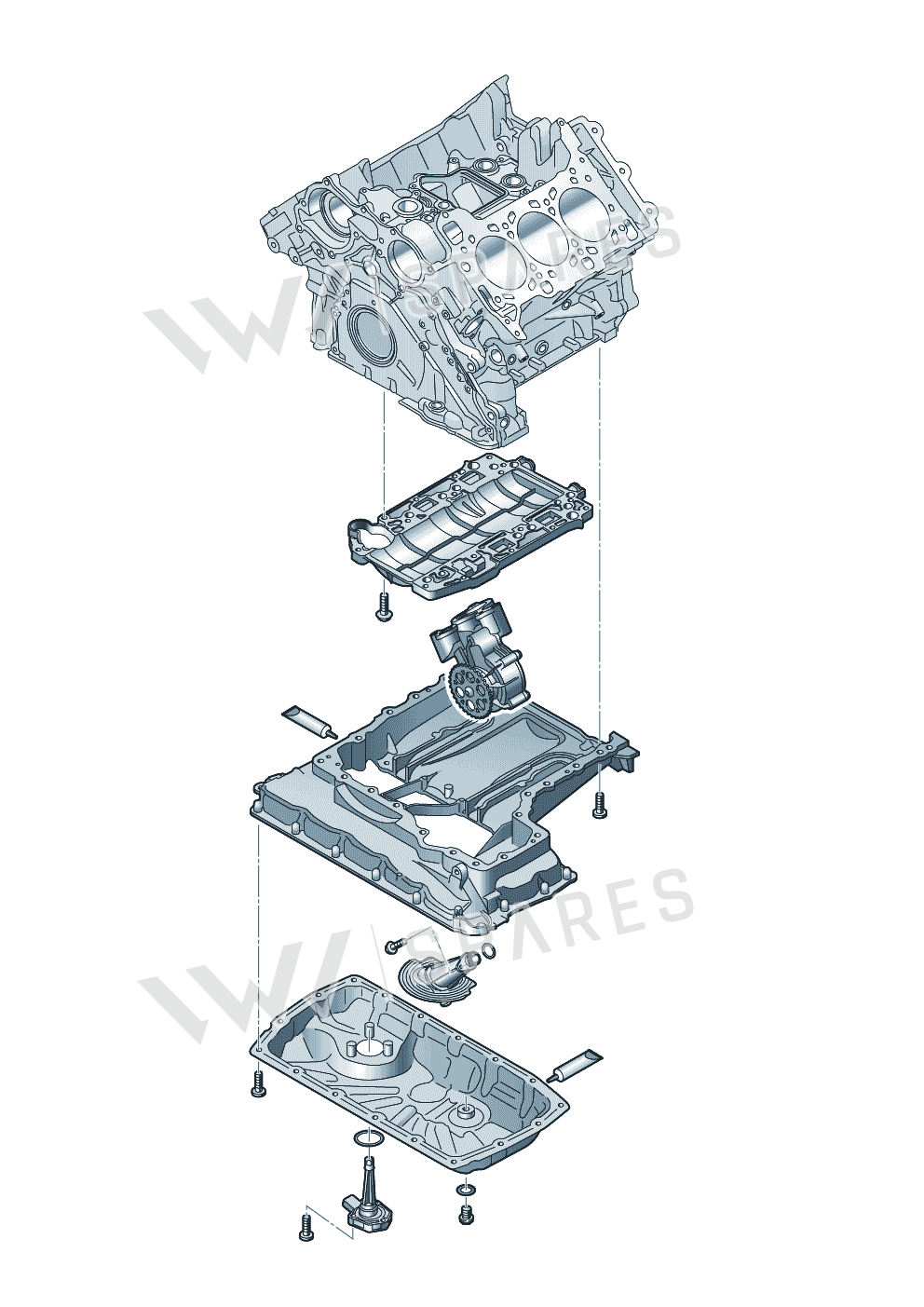

12 vehiclesEngine Oil Sump Upper Part — locate Engine Oil Sump Upper Part in the official exploded view and explore the surrounding assembly.
Parts in this assembly24
- 1Oil Sump 06M103602P
- 2Screw N91167901
- 3Seal Ring N0138495
- 4Oel Sensor 06M907637A
- 4Oel Sensor 06M907660A
- 5Bolt N10413405
- 5Bolt N10700201
- 5Bolt N91127902
- 6Bolt N10653301
- 6Bolt N91168702
- 7Connection 06M115155M
- 7Connection 06M115155P
- 8Seal Ring N91069701
- 9Part 06M115113
- 10Oil Sump 06M103603AF
- 10Oil Sump 06M103603AM
- 11Screw N91173602
- 13Insert 06M115287AH
- 13Insert 06M115289AQ
- 14Bolt N10156206
- 14Bolt N10571404
- 14Bolt N91043602
- 16Seal D176501A1
- 17Seal Ring 038103196D
Vehicle fitment table12
Europe (12)
| Vehicle | Years | Pos. | Qty |
|---|---|---|---|
| Audi Q8 Quattro 3,0 | 2018- | 10 | 1 |
| audi a6 2.0 | 2018- | 10 | 1 |
| Audi A7 Sportback | 2018- | 10 | 1 |
| Audi RS4 Avant | 2017- | 10 | 1 |
| Audi RS5 Sportback | 2017- | 10 | 1 |
| touareg | 2017-2023 | 10 | 1 |
| Audi A8L | 2017-2022 | 10 | 1 |
| Audi Q5 | 2016-2020 | 10 | 1 |
| Audi A5 Sportback | 2016-2020 | 10 | 1 |
| Audi A5 Cabrio 2.0 | 2016-2018 | 10 | 1 |
| audi a4 2.0 | 2015-2019 | 10 | 1 |
| Audi Q7 qu. 3.0 TDI | 2015-2019 | 10 | 1 |
Diagrams & fitment data powered by oemdiagrams.com
Engine Oil Sump Upper Part is fitted on: Audi Q8 Quattro 3,0 2018-; audi a6 2.0 2018-; Audi A7 Sportback 2018-; Audi RS4 Avant 2017-; Audi RS5 Sportback 2017-; touareg 2017-2023; Audi A8L 2017-2022; Audi Q5 2016-2020; Audi A5 Sportback 2016-2020; Audi A5 Cabrio 2.0 2016-2018; audi a4 2.0 2015-2019; Audi Q7 qu. 3.0 TDI 2015-2019.
