077115111 Seal
- 077115111This pageNot stocked
Apr 2007 - 077198405Current number
Special order item. Delivery time may vary.
About This Part
Superseded part number
This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VAG is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

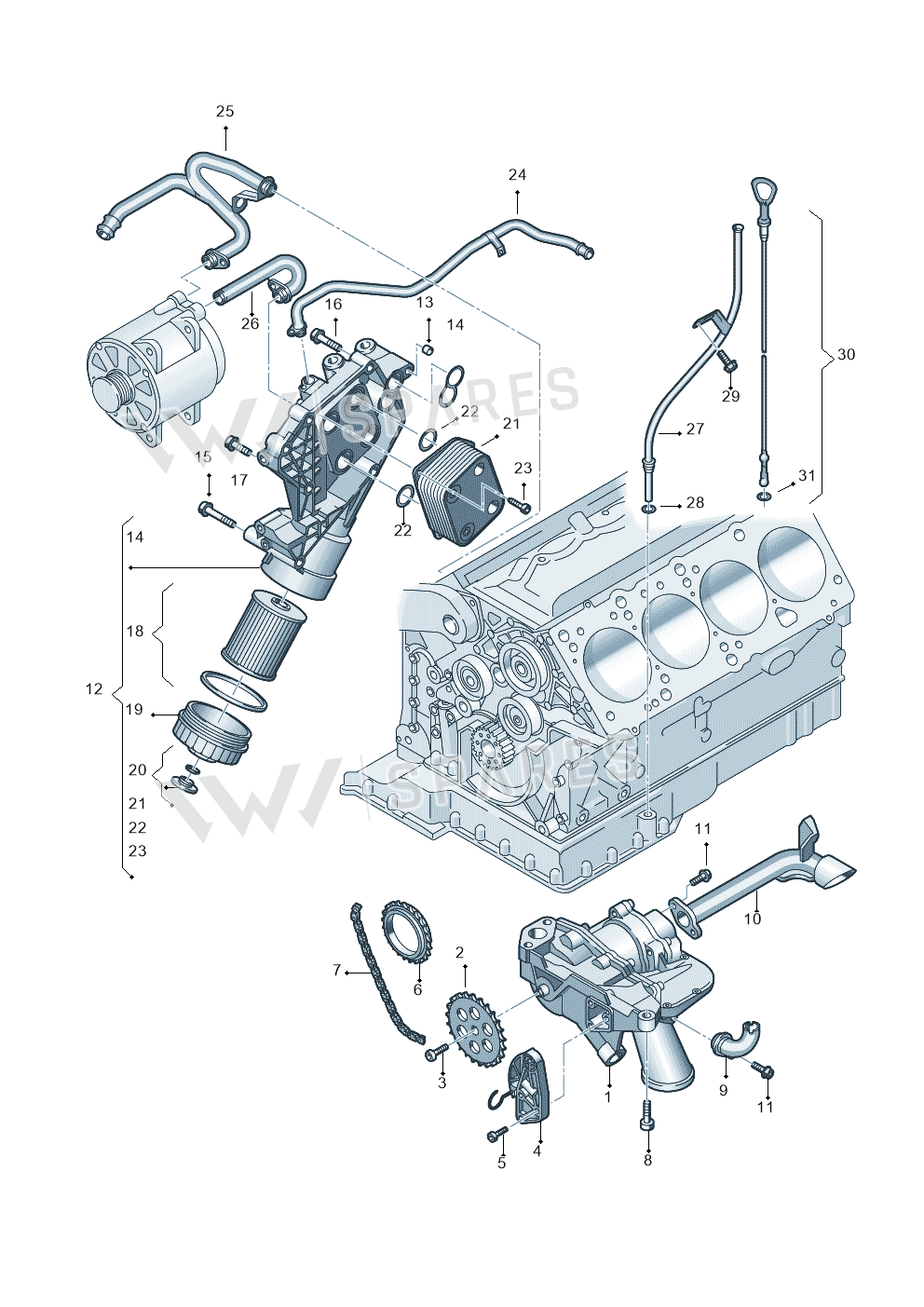

1 vehicleSeal — locate Seal in the official exploded view and explore the surrounding assembly.
Parts in this assembly20
- 2Chn Sprckt 077115121G
- 3Screw N10468701
- 4Tensioner 077115124A
- 5Screw N0147053
- 6Chn Sprckt 077115121F
- 7Chain 077115125A
- 8Screw N90857801
- 11Bolt N10124408
- 12Oil Filter 077115401AB
- 13Sleeve 077115143D
- 14Gask Set 077198405
- 16Screw N10468801
- 17Screw N90305502
- 18Filterelem 077115562
- 20Bolt 021115434
- 23Screw N10559901
- 27Tube 077115630P
- 28Seal Ring 034115427B
- 29Bolt N10005207
- 31Seal Ring N90813802
Vehicle fitment table1
Europe (1)
| Vehicle | Years | Pos. | Qty | PR |
|---|---|---|---|---|
| Touareg | 2003-2005 | 14 | 2 | T88 |
Diagrams & fitment data powered by oemdiagrams.com
Seal is fitted on: Touareg 2003-2005.
