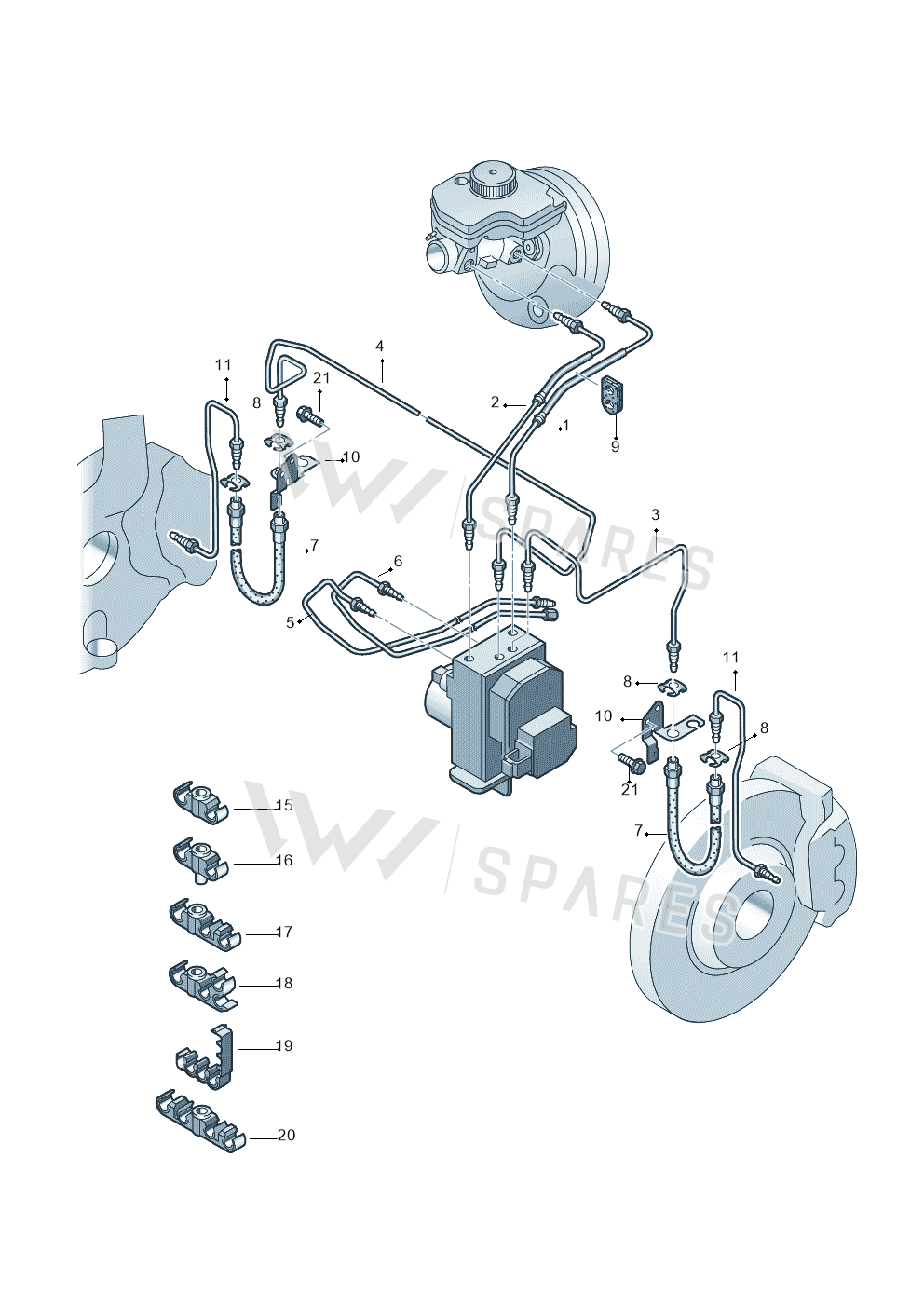

Brake Hose exploded parts diagram — phaeton 4motion · 2010-2016, position 7
Exploded view
phaeton 4motion · 2010-2016 · position 7Full diagram ↓
3D0611701E

3D0611701E Brake Hose

£26.85
£22.19 excl. VAT
Supersession road4 numbers since 2008
  1. 3D0611701CNot stocked
    Nov 2008
  2. 3D0611701DNot stocked
    Apr 2006
  3. 3D0611701EThis pageNot stocked
    May 2015
  4. 3D0611701GCurrent number
Current part number3D0611701GWhat the manufacturer supplies todayOrder
Availability: No longer supplied under this number

Special order item. Delivery time may vary.

About This Part

Superseded part number

This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.

Order Processing & Delivery

This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VAG is typically 3–8 business days before dispatch.

Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.

* Delivery times are estimates and may vary based on manufacturer availability and your location.

Verify Vehicle Fitment

To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.

Contact us with your VIN
Genuine OEM Parts
Direct from manufacturer
Secure Ordering
Safe and protected checkout

Parts diagram & fitment

5 vehicles

Brake Hose — locate Brake Hose in the official exploded view and explore the surrounding assembly.

Parts in this assembly25
Vehicle fitment table5

Europe (5)

VehicleYearsPos.QtyPR
phaeton 4motion2010-201672
phaeton 4motion2008-201072
PHAETON 08>2007-72
Audi A8/S8/qu. lang 08>2007-1921LJ
Audi A8/S8/qu. lang2003-20071921LJ

Diagrams & fitment data powered by oemdiagrams.com

Brake Hose is fitted on: phaeton 4motion 2010-2016; phaeton 4motion 2008-2010; PHAETON 08> 2007-; Audi A8/S8/qu. lang 08> 2007-; Audi A8/S8/qu. lang 2003-2007.
