Target · Diagram
Find this reference above

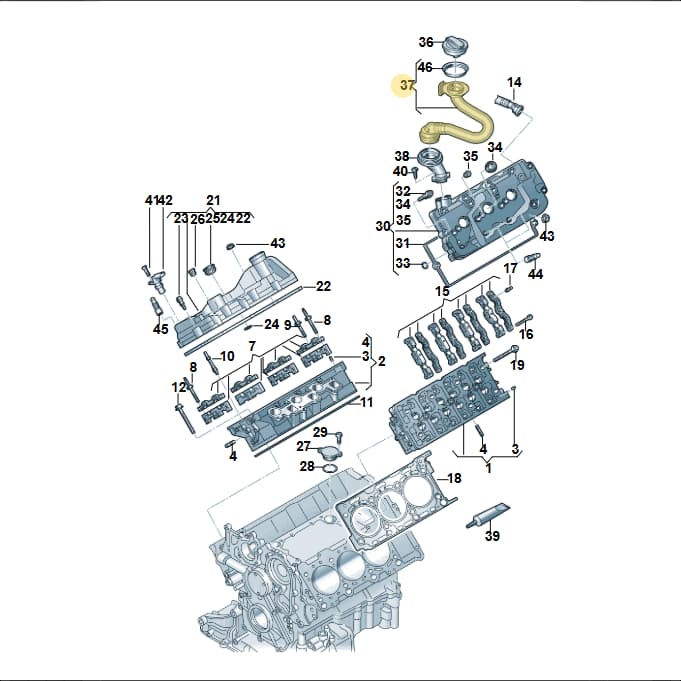

Number 37 marks the part’s position in the exploded view.
Product overview
Genuine OEM Audi Oil Filler Pipe, part number 4M0115301H. This component serves as the access point for safely adding engine oil, ensuring that oil can be poured into the engine without spillage or contamination. It is typically located on the top of the engine, connecting to the valve cover. Weighing 0.141 kg, this pipe is designed for durability and a secure seal with the oil filler cap. Choosing a genuine OEM oil filler pipe ensures proper sealing against oil leaks and vapor escape, maintaining engine cleanliness and preventing potential issues from incorrect fitment or material degradation.
Technical details
- Category
- Engine
- Country of origin
- Germany
- Customs (HS) code
- 84099100
- Manufacturer
- Audi
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 24 × 18 × 9 cm
- Shipping weight
- 0.14 kg
Parts diagram & fitment
3 vehiclesOil Filler Pipe — locate 4M0115301H Audi Oil Filler Pipe | Engine in the official exploded view and explore the surrounding assembly.
Parts in this assembly(38)
- 1Cylinder Head 059103063MK
- 1Cylinder Head 059103063MM
- 2Cylinder Head 059103064ML
- 2Cylinder Head 059103064MQ
- 3Sleeve 059103139B
- 4Bolt N91070903
- 4Bolt N0444087
- 5Bolt N10116103
- 7Cover 059103960G
- 8Bolt WHT008070
- 9Ball Joint 059103164E
- 10Ball Joint 059103164H
- 11Seal 059103148AK
- 11Seal 059103148AL
- 11Seal 059103148AJ
- 12Screw WHT005262A
- 15Cover 059103959G
- 18Seal 059103149AK
- 18Seal 059103149AL
- 18Seal 059103149AJ
- 21Cover 059103470CS
- 22Seal 059103484J
- 23Element 059103831
- 24Seal Ring 059103196A
- 25Seal 059103085L
- 26Grommet 059103631D
- 28Collar Nut N01508213
- 30Cover 059103469DE
- 31Seal 059103483AH
- 36Cover 06K103485B
- 36Cover 06K103485A
- 38Connection 059103482H
- 39Seal D176501A1
- 40Screw WHT008841
- 41Screw N10721401
- 42Sender 04C907601K
- 44Part WHT007153
- 46Seal Ring 059133287C
Diagrams & fitment data powered by oemdiagrams.com
4M0115301H Audi Oil Filler Pipe | Engine is fitted on: Audi Q8 Quattro 3,0 2018-; Audi Q7 qu. 3.0 TDI 2015-2019; touareg 2017-2023.
