7E0820411F A C Condenser With Fluid Reservoir
- 7E0820411FThis pageNot stocked
Sep 2020 - 7E0820411GCurrent number
Special order item. Delivery time may vary.
About This Part
Superseded part number
This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VOLKSWAGEN is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

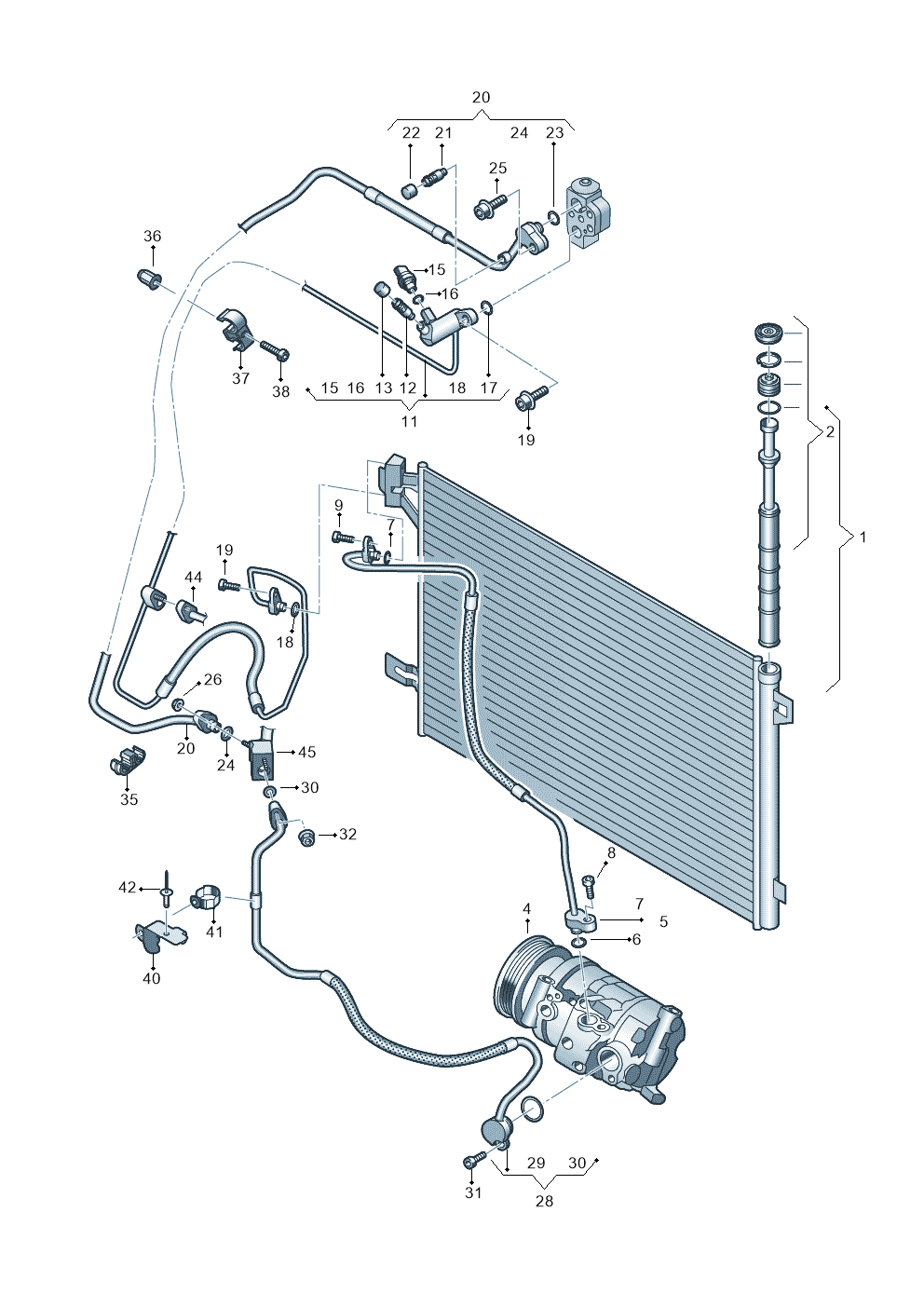

6 vehiclesA C Condenser With Fluid Reservoir — locate A C Condenser With Fluid Reservoir in the official exploded view and explore the surrounding assembly.
Parts in this assembly43
- 1Condenser 7E0820411G
- 2Insert 7E0298403
- 5Line 7LA816721A
- 6Seal Ring 4E0260749A
- 7Seal Ring 3D0260749C
- 8Screw N10414402
- 9Bolt N10347103
- 11Line 7L1816741C
- 11Line 7L1816741D
- 11Line 7L1820741C
- 11Line 7L2816741A
- 11Line 7L2820741A
- 11Line 7L1820741D
- 12Valve 8E0820855
- 13Part 5Q0816581
- 13Part 3C0820581
- 15Sender 5Q0959126A
- 16Seal Ring 7H0820896
- 18Seal Ring 4D0260749B
- 20Line 7E1816743
- 20Line 7E1816743A
- 20Line 7E1820743P
- 20Line 7E1820743Q
- 20Line 7E2816743
- 20Line 7E2816743A
- 20Line 7E2820743J
- 20Line 7E2820743K
- 20Line 7E2820743L
- 20Line 7E1820743M
- 22Part 3C0820231
- 22Part 5Q0816231
- 23Seal Ring 4E0260749B
- 26Collar Nut N01508210
- 28Line 7LA816744A
- 28Line 7LA816744B
- 29Seal Ring 8E0260749C
- 35Clip 7E0820774A
- 36Part N90252104
- 37Clip 7E0820775
- 38Bolt N10704501
- 40Bracket 7E0820770
- 41Cable Tie 3W0971838
- 42Pop Rivet N90528204
Vehicle fitment table6
Europe (6)
| Vehicle | Years | Pos. | Qty |
|---|---|---|---|
| transport. multivan | 2019-2024 | 1 | 1 |
| caravelle | 2019-2024 | 1 | 1 |
| Single-cab transp. | 2019-2024 | 1 | 1 |
| caravelle | 2015-2019 | 1 | 1 |
| Single-cab transp. | 2015-2019 | 1 | 1 |
| California Camper | 2015-2019 | 1 | 1 |
Diagrams & fitment data powered by oemdiagrams.com
A C Condenser With Fluid Reservoir is fitted on: transport. multivan 2019-2024; caravelle 2019-2024; Single-cab transp. 2019-2024; caravelle 2015-2019; Single-cab transp. 2015-2019; California Camper 2015-2019.
