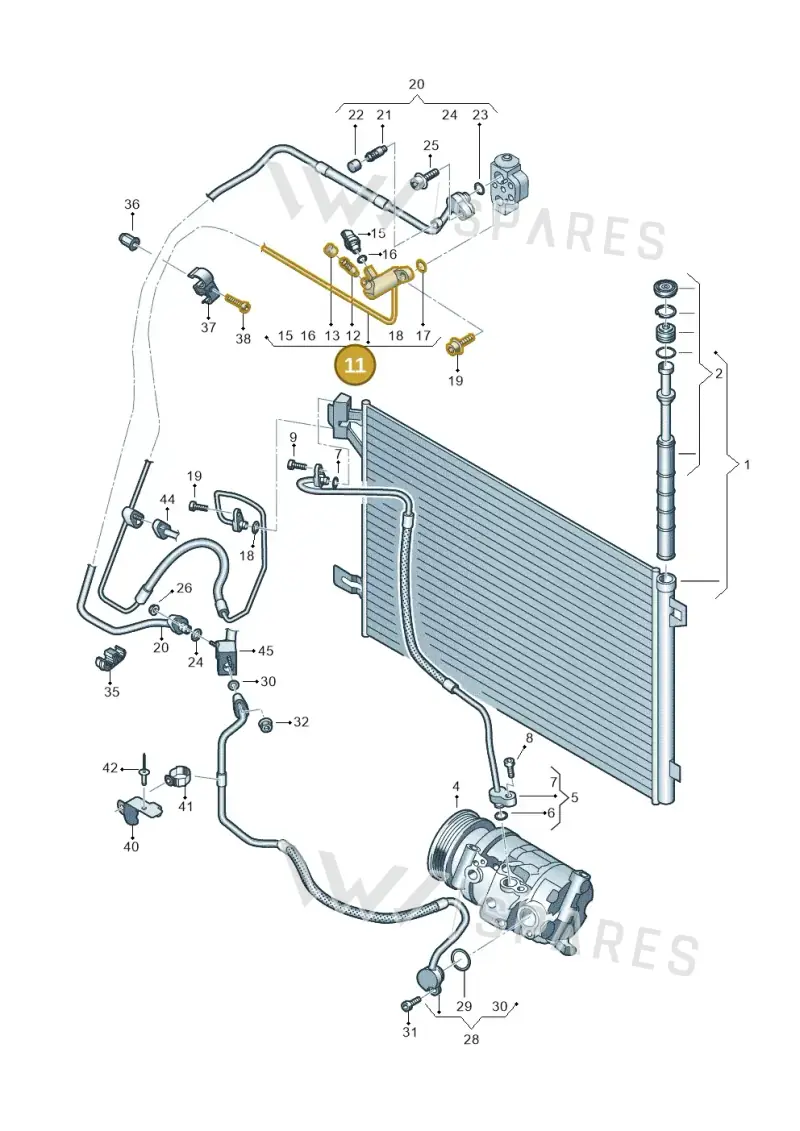

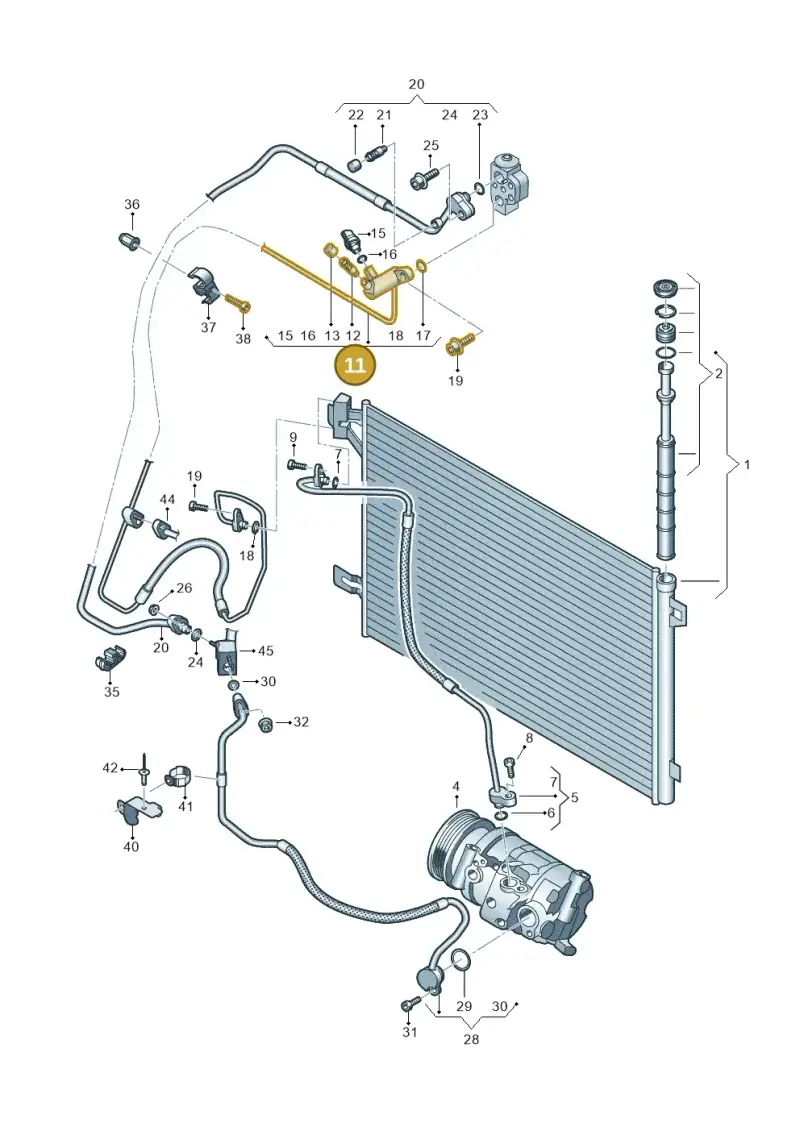

Number 11 marks the part’s position in the exploded view (Volkswagen Transporter Multivan (2019-2024)).
Product overview
Genuine OEM Volkswagen Refrigerant Line, part number 7L1820741D. Fits Volkswagen Caravelle (2019-2024), Volkswagen Transporter Multivan (2019-2024). Shown as position 11 in the fuel, exhaust and cooling diagram 861260400.
Catalogue entry: LINE lhd; (Expansion valve >.
Fitted with: 7L1820741C LINE, 7L1820741E LINE, 7L2820741A LINE, 7L1816741C LINE, 7L1816741D LINE, 7L1816741E LINE, 7L2816741A LINE, N10347103 BOLT, 7E0820775 CLIP, N10704501 BOLT.
Technical details
- Category
- Heating & A/C
- Diagram sheet
- Volkswagen 861260400, position 11
- ETKA group
- 2 / 60 (260)
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
Specifications
As recorded in the manufacturer’s parts catalogue for this part number.
Equipment codes
- 9AH
- KC4
- KK1
- L0L
PR codes identify the factory option a part belongs to; your vehicle’s are listed on the data sticker in the boot well or service booklet.
Why buy from WW Spares?
- ✓ Genuine OEM inventory sourced directly from factory networks
- ✓ Fitment support from workshop-seasoned parts specialists
- ✓ Global logistics with customs-ready documentation
Need help confirming compatibility? Talk to a specialist
Parts diagram & fitment
2 vehiclesRefrigerant Line — locate 7L1820741D Volkswagen Refrigerant Line in the official exploded view and explore the surrounding assembly.
LThis part is the Left side
Parts in this assembly43
- 1Condenser 7E0820411F
- 1Condenser 7E0820411G
- 2Insert 7E0298403
- 5Line 7LA816721A
- 6Seal Ring 4E0260749A
- 7Seal Ring 3D0260749C
- 8Screw N10414402
- 9Bolt N10347103
- 11LineLeft7L1816741C
- 11LineLeft7L1816741D
- 11LineLeft7L1820741C
- 11LineRight7L2816741A
- 11LineRight7L2820741A
- 12Valve 8E0820855
- 13Part 5Q0816581
- 13Part 3C0820581
- 15Sender 5Q0959126A
- 16Seal Ring 7H0820896
- 18Seal Ring 4D0260749B
- 20LineLeft7E1816743
- 20LineLeft7E1816743A
- 20LineLeft7E1820743P
- 20LineLeft7E1820743Q
- 20LineRight7E2816743
- 20LineRight7E2816743A
- 20LineRight7E2820743J
- 20LineRight7E2820743K
- 20LineRight7E2820743L
- 20LineLeft7E1820743M
- 22Part 3C0820231
- 22Part 5Q0816231
- 23Seal Ring 4E0260749B
- 26Collar Nut N01508210
- 28Line 7LA816744A
- 28Line 7LA816744B
- 29Seal Ring 8E0260749C
- 35Clip 7E0820774A
- 36Part N90252104
- 37Clip 7E0820775
- 38Bolt N10704501
- 40Bracket 7E0820770
- 41Cable Tie 3W0971838
- 42Pop Rivet N90528204
Vehicle fitment table2
Europe (2)
| Vehicle | Years | Pos. | Remark | PR |
|---|---|---|---|---|
| transport. multivan | 2019-2024 | 11 | 1 | PR |
| caravelle | 2019-2024 | 11 | 1 | PR |
Diagrams & fitment data powered by oemdiagrams.com
7L1820741D Volkswagen Refrigerant Line is fitted on: transport. multivan 2019-2024; caravelle 2019-2024.
