Product overview

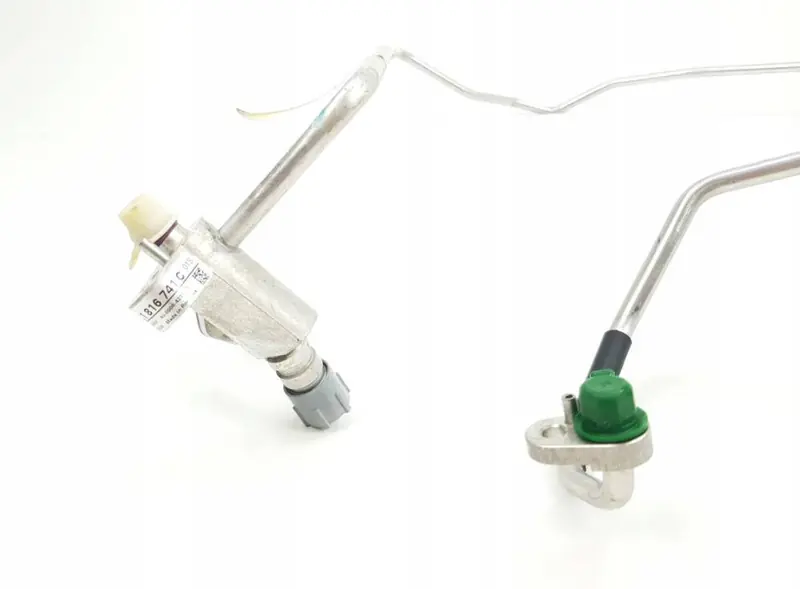

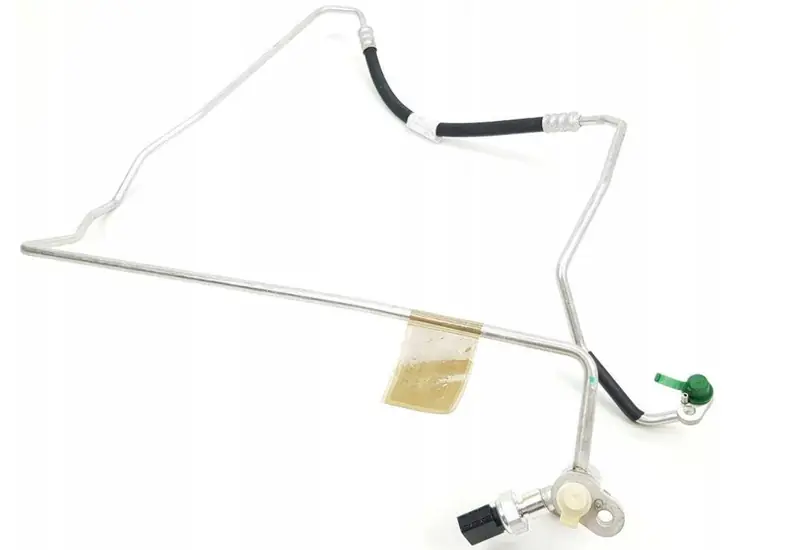

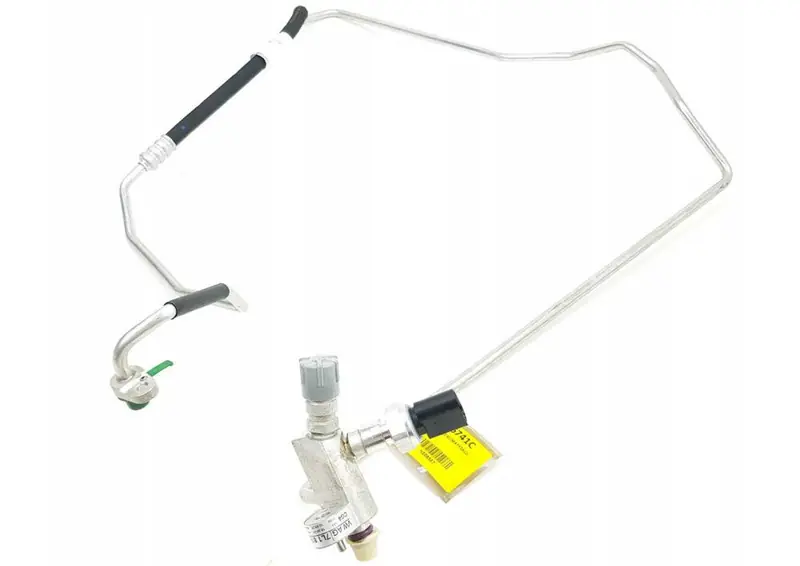

Genuine OEM Volkswagen Refrigerant Line, part number 7L1816741C. This critical component is responsible for transporting refrigerant throughout the vehicle's air conditioning system, enabling efficient cooling and climate control. It features a specific routing geometry designed for Left-Hand Drive (LHD) vehicles. Constructed from durable metal tubing and high-pressure resistant rubber hose sections, it ensures a leak-free and robust connection within the A/C circuit. Selecting a genuine OEM refrigerant line guarantees the precise fitment, correct material composition, and factory-tested integrity required for optimal and long-lasting air conditioning performance.
Catalogue entry: LINE lhd; (Expansion valve >.
Fitted with: 7L1820741C LINE, 7L1820741D LINE, 7L1820741E LINE, 7L2820741A LINE, 7L1816741D LINE, 7L1816741E LINE, 7L2816741A LINE, N10347103 BOLT, 7E0820775 CLIP, N10704501 BOLT.
Technical details
- Category
- Heating & A/C
- Customs (HS) code
- 40094200
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 78 × 45 × 15 cm
- Shipping weight
- 0.34 kg
Specifications
As recorded in the manufacturer’s parts catalogue for this part number.
Equipment codes
- F0A
- F5Z
- F4C
- F4E
- F4F
- KC3
- KK3
- F0Q
- F5L
- F5P
- F4G
- KC2
- F4L
- KH6
- F5B
- L0L
PR codes identify the factory option a part belongs to; your vehicle’s are listed on the data sticker in the boot well or service booklet.
Why buy from WW Spares?
- ✓ Genuine OEM inventory sourced directly from factory networks
- ✓ Fitment support from workshop-seasoned parts specialists
- ✓ Global logistics with customs-ready documentation
Need help confirming compatibility? Talk to a specialist

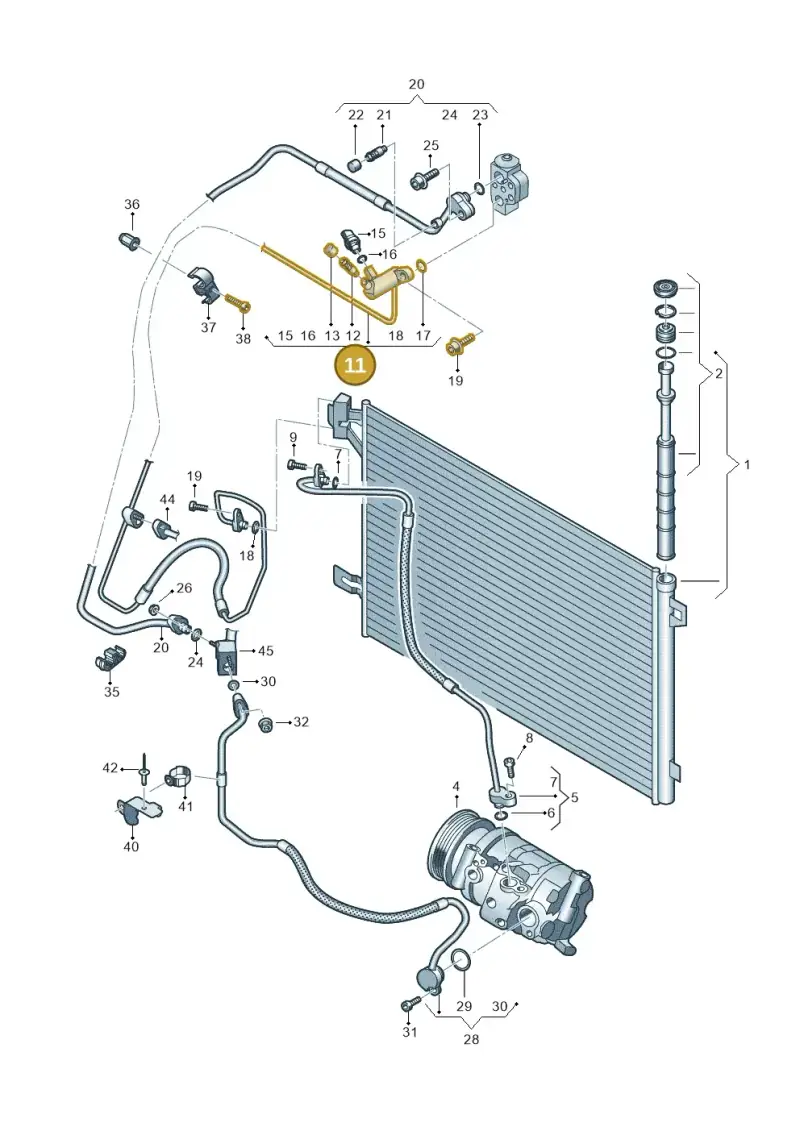

Parts diagram & fitment
3 vehiclesRefrigerant Line — locate 7L1816741C Volkswagen Refrigerant Line | LHD A/C System in the official exploded view and explore the surrounding assembly.
LThis part is the Left side
Parts in this assembly43
- 1Condenser 7E0820411F
- 1Condenser 7E0820411G
- 2Insert 7E0298403
- 5Line 7LA816721A
- 6Seal Ring 4E0260749A
- 7Seal Ring 3D0260749C
- 8Screw N10414402
- 9Bolt N10347103
- 11LineLeft7L1816741D
- 11LineLeft7L1820741C
- 11LineRight7L2816741A
- 11LineRight7L2820741A
- 11LineLeft7L1820741D
- 12Valve 8E0820855
- 13Part 5Q0816581
- 13Part 3C0820581
- 15Sender 5Q0959126A
- 16Seal Ring 7H0820896
- 18Seal Ring 4D0260749B
- 20LineLeft7E1816743
- 20LineLeft7E1816743A
- 20LineLeft7E1820743P
- 20LineLeft7E1820743Q
- 20LineRight7E2816743
- 20LineRight7E2816743A
- 20LineRight7E2820743J
- 20LineRight7E2820743K
- 20LineRight7E2820743L
- 20LineLeft7E1820743M
- 22Part 3C0820231
- 22Part 5Q0816231
- 23Seal Ring 4E0260749B
- 26Collar Nut N01508210
- 28Line 7LA816744A
- 28Line 7LA816744B
- 29Seal Ring 8E0260749C
- 35Clip 7E0820774A
- 36Part N90252104
- 37Clip 7E0820775
- 38Bolt N10704501
- 40Bracket 7E0820770
- 41Cable Tie 3W0971838
- 42Pop Rivet N90528204
Compatible / alternative parts(1)
Vehicle fitment table3
Europe (3)
| Vehicle | Years | Pos. | Remark | PR |
|---|---|---|---|---|
| transport. multivan | 2019-2024 | 11 | 1 | PR |
| caravelle | 2019-2024 | 11 | 1 | |
| Single-cab transp. | 2019-2024 | 11 | 1 | PR |
Diagrams & fitment data powered by oemdiagrams.com
7L1816741C Volkswagen Refrigerant Line | LHD A/C System is fitted on: transport. multivan 2019-2024; caravelle 2019-2024; Single-cab transp. 2019-2024.
