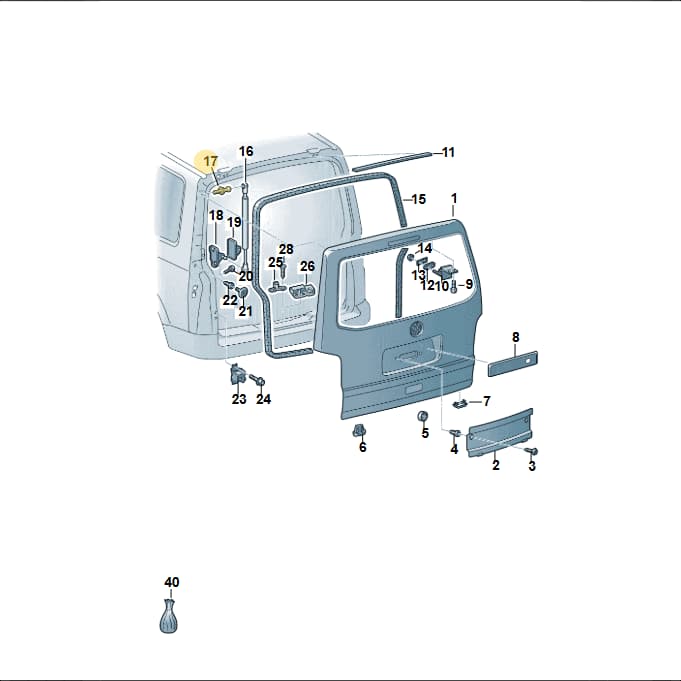

Number 17 marks the part’s position in the exploded view.
Product overview
Genuine OEM Volkswagen Rear Lid Stop Pin, part number 7E0827439. This small but essential pin is located on the rear door frame and functions to limit the opening range of the rear lid, preventing it from swinging too far open and causing damage. Weighing approximately 0.021 kg, it is a precise component. Choosing a genuine OEM stop pin ensures the correct dimensions and material properties for reliable operation and long-term durability of the rear lid mechanism.
Catalogue entry: STUD ×2.
Fitted with: 7E0827025AN REAR LID, 7E0827025AP REAR LID, 7E0827025AK REAR LID, 7E0827025AL REAR LID, 7E5827025G REAR LID, 7E5827025F REAR LID, WHT007341 rivetted cap nut, 8D5827713A BUNGS, 811803593 BUNGS, N10753101 SCREW, 7E5827439A STUD.
Technical details
- Category
- Doors & Windows
- Customs (HS) code
- 73269098
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 3.5 × 2 × 2 cm
- Shipping weight
- 0.02 kg
Specifications
As recorded in the manufacturer’s parts catalogue for this part number.
Equipment codes
- 3RB
- 3RC
- 3RH
- 3RJ
PR codes identify the factory option a part belongs to; your vehicle’s are listed on the data sticker in the boot well or service booklet.
Why buy from WW Spares?
- ✓ Genuine OEM inventory sourced directly from factory networks
- ✓ Fitment support from workshop-seasoned parts specialists
- ✓ Global logistics with customs-ready documentation
Need help confirming compatibility? Talk to a specialist
Parts diagram & fitment
4 vehiclesBall Stud — locate 7E0827439 Volkswagen Rear Lid Stop Pin | Genuine OEM in the official exploded view and explore the surrounding assembly.
Parts in this assembly48
- 1Rear Lid 7E0827025AK
- 1Rear Lid 7E0827025AL
- 1Rear Lid 7E0827025AP
- 1Rear Lid 7E5827025H
- 1Rear Lid 7E0827025AN
- 1Rear Lid 7E5827025C
- 1Rear Lid 7E5827025F
- 1Rear Lid 7E5827025G
- 2Bracket 7E5807285
- 2Bracket 705943199
- 3Bolt N10741402
- 4Part WHT007341
- 6Bungs 8D5827713A
- 7Frame 7E5827739A
- 8Trim 7E0829139
- 8Trim 7E0829139A
- 9Screw N10753101
- 10HingeRight7E0827302D
- 10HingeLeft7E5827301A
- 10HingeRight7E5827302A
- 10HingeLeft7E0827301D
- 11Seal 7E0841790
- 12Plate 7H0827689
- 13SealRight7H0827366
- 13SealLeft7H0827365
- 14Collar Nut N90928802
- 15Seal 7E0829193AD
- 15Seal 7E0829193R
- 16Drive 7E5827851D
- 16G Fill Str 7E0827550B
- 16G Fill Str 7E0827550C
- 16Part 7E0827550D
- 16G Fill Str 7E7827550
- 16G Fill Str 7E7827550A
- 16G Fill Str 7E7827550B
- 16G Fill Str 7E7827550E
- 16G Fill Str 7E7827550F
- 17Stud 7E5827439A
- 18BracketRight7E0827436A
- 18BracketLeft7E5827435B
- 18BracketRight7E5827436B
- 18BracketLeft7E0827435A
- 19Part 7E0827280
- 19Part 7E0827279
- 20Screw N10548902
- 20Screw N90962401
- 21Bungs 6X0827951B
- 21Bungs 7E0827951A
Compatible / alternative parts(2)
Vehicle fitment table4
Europe (4)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| transport. multivan | 2019-2024 | 17 | 2 | PR:3RC,3RJ | 3RC |
| caravelle | 2019-2024 | 17 | 2 | PR:3RB,3RC, | |
| caravelle | 2015-2019 | 17 | 2 | PR:3RB,3RC | 3RB |
| California Camper | 2015-2019 | 17 | 2 | 3RC |
Diagrams & fitment data powered by oemdiagrams.com
7E0827439 Volkswagen Rear Lid Stop Pin | Genuine OEM is fitted on: transport. multivan 2019-2024; caravelle 2019-2024; caravelle 2015-2019; California Camper 2015-2019.
