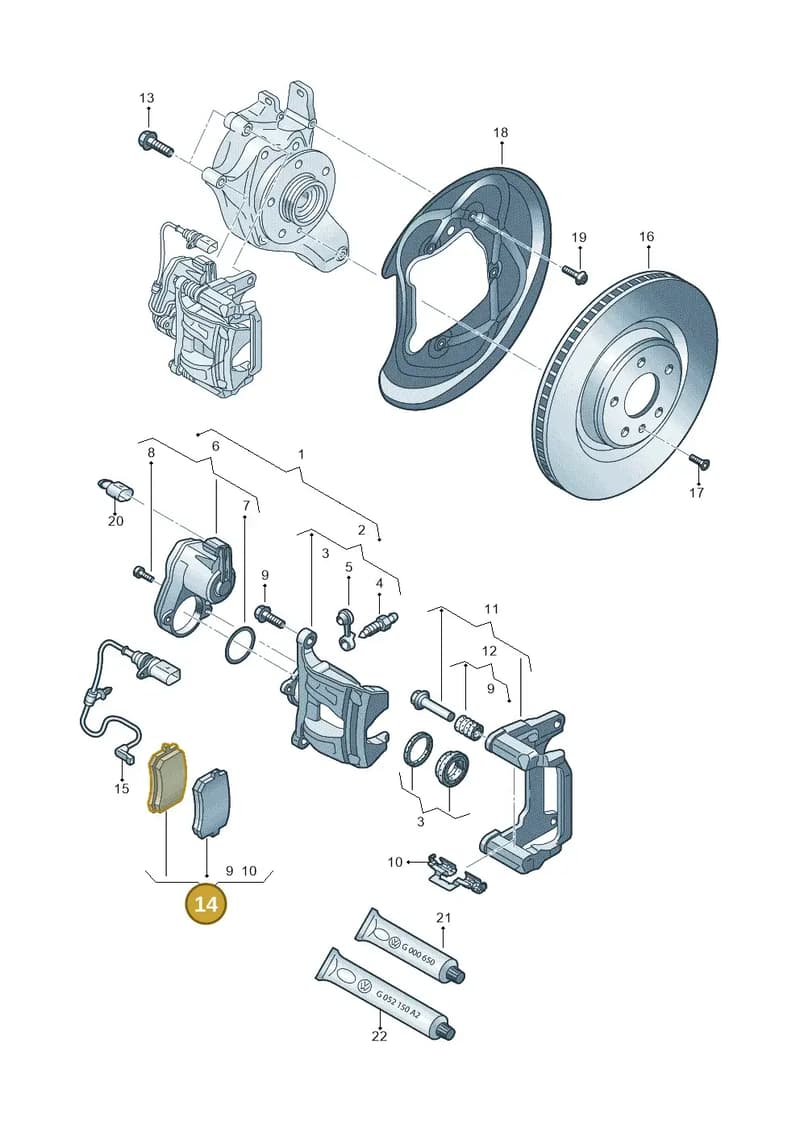

Number 14 marks the part’s position in the exploded view (Audi Q5 (2016-2025)).
Product overview
Genuine OEM Audi 1 Set of Brake Pads for Disk Brake, part number 80A698451K. Fits Audi Q5 (2016-2025). Shown as position 14 in the wheels and brakes diagram 849615600.
Catalogue entry: BR. LINING 330X22MM; also use: 80A 615 121; 4K0 698 231 A; WHT 010 085 ×4.
Use with: 80A615121, 4K0698231A, WHT010085 (×4). Fitted with: N91041702 bolt, N91126801 bolt, 80A698451G BR. LINING, 80A698451J BR. LINING, 80A698451R BR. LINING, 80A698451H BR. LINING, 80A615121 SENDER, 80A615601C BRAKEDISC, N10648301 BOLT, G000650 PASTE, G052150A2 GREASE, 80A615403D Housing.
Technical details
- Category
- Brakes
- Diagram sheet
- Audi 849615600, position 14
- ETKA group
- 6 / 15 (615)
- Manufacturer
- Audi
- Product Type
- Genuine new auto parts
Specifications
As recorded in the manufacturer’s parts catalogue for this part number.
- Dimensions
- 330x22 mm
Equipment codes
- 1KJ
- 1KW
PR codes identify the factory option a part belongs to; your vehicle’s are listed on the data sticker in the boot well or service booklet.
Why buy from WW Spares?
- ✓ Genuine OEM inventory sourced directly from factory networks
- ✓ Fitment support from workshop-seasoned parts specialists
- ✓ Global logistics with customs-ready documentation
Need help confirming compatibility? Talk to a specialist
Parts diagram & fitment
1 vehicle1 Set Of Brake Pads For Disk Brake — locate 80A698451K Audi 1 Set of Brake Pads for Disk Brake in the official exploded view and explore the surrounding assembly.
Parts in this assembly32
- 1HousingRight80A615404D
- 1HousingLeft80A615403D
- 3Gask Set 4M0698671B
- 4Valve 1K0615273C
- 5Part 4H0611483
- 6Servomotor 8W0998281
- 7Seal Ring 4E0615137
- 8Bolt N10285506
- 9Bolt WHT010085
- 9Bolt WHT003252
- 10Ret Spring 4K0698231A
- 10Spring 4K0615231A
- 11Plate BrakRight80A615426D
- 11Plate BrakLeft80A615425D
- 12Rep Set 7N0698647A
- 13Bolt N91126801
- 13Bolt N91041702
- 14Part 80A698451H
- 14Part 80A698451J
- 14Part 80A698451R
- 14Part 80A698451G
- 15Sender 80A615121
- 16Brakedisc 80A615601C
- 17Bolt N10648301
- 18Cov PlateLeft80A615611B
- 18Cov PlateRight80A615612B
- 18Cov PlateRight8W0615612D
- 18Cov PlateLeft8W0615611D
- 19Bolt N10741402
- 20Housing 1J0973722
- 21Paste G000650
- 22Grease G052150A2
Compatible / alternative parts(12)
Vehicle fitment table1
Europe (1)
| Vehicle | Years | Pos. |
|---|---|---|
| Audi Q5 | 2016-2020 | 14 |
Diagrams & fitment data powered by oemdiagrams.com
80A698451K Audi 1 Set of Brake Pads for Disk Brake is fitted on: Audi Q5 2016-2020.
