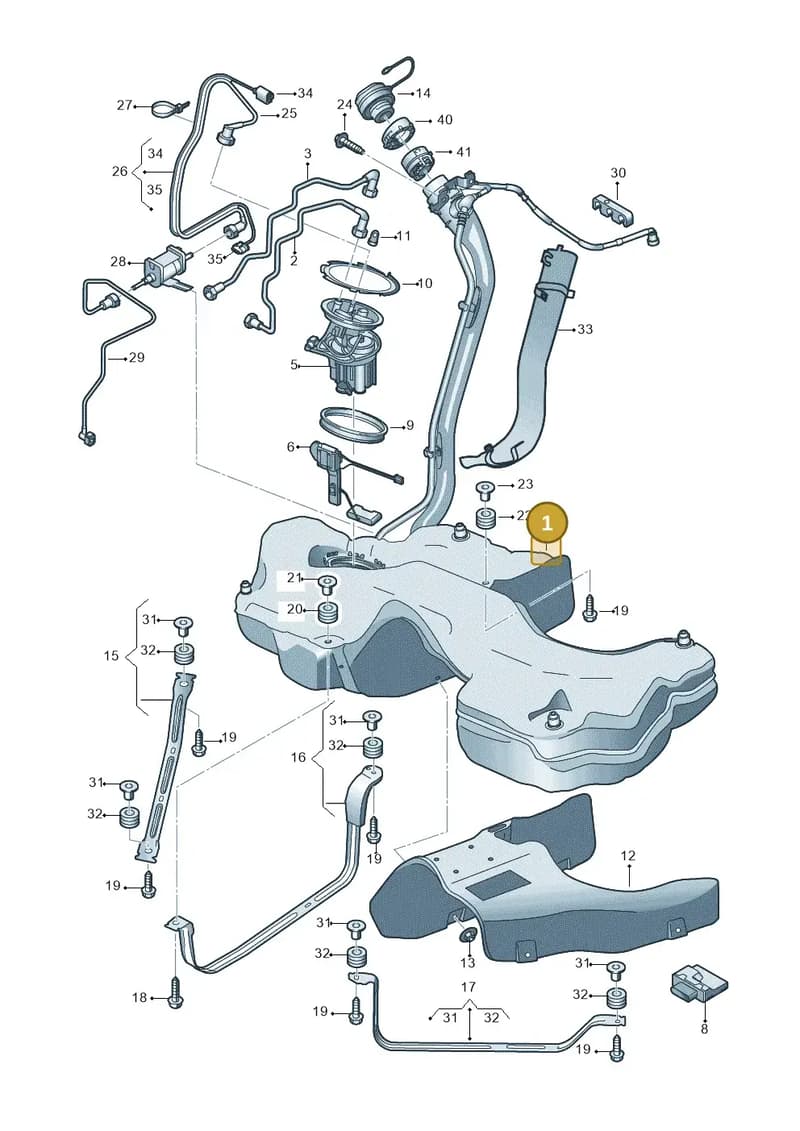

Number 1 marks the part’s position in the exploded view (Audi A5 Sportback (2016-2025)).
Product overview
Genuine OEM Audi Fuel Tank, part number 8W6201060AC. Fits Audi A5 Sportback (2016-2025). Shown as position 1 in the fuel, exhaust and cooling diagram 897201150.
Catalogue entry: CONTAINER.
Fitted with: 8W6201060G CONTAINER, 8W6201060AT CONTAINER, 1K0919133D seal ring, 1K0201375 Union nut, N91068501 panel nut, N91165402 Screw, N91243601 SCREW, N91257901 Screw.
Technical details
- Category
- Fuel System
- Diagram sheet
- Audi 897201150, position 1
- ETKA group
- 2 / 01 (201)
- Manufacturer
- Audi
- Product Type
- Genuine new auto parts
Why buy from WW Spares?
- ✓ Genuine OEM inventory sourced directly from factory networks
- ✓ Fitment support from workshop-seasoned parts specialists
- ✓ Global logistics with customs-ready documentation
Need help confirming compatibility? Talk to a specialist
Parts diagram & fitment
1 vehicleFuel Tank — locate 8W6201060AC Audi Fuel Tank in the official exploded view and explore the surrounding assembly.
Parts in this assembly41
- 1Container 8W6201060AT
- 1Container 8W6201060G
- 2Fuel Line 8W0201220
- 3Fuel Line 8W0201227
- 5Module 8W0919088J
- 6Sender 8W0919047E
- 6Sender 8W0919047B
- 8Control Unit 4K0906121C
- 8Control Unit 4M0906093L
- 8Control Unit 4M0906093M
- 8Control Unit 4M0906121B
- 8Control Unit 8W0906121B
- 9Seal Ring 1K0919133D
- 10Part 1K0201375
- 11Part 8R0201263A
- 12Heat Sh 8W0201308AE
- 12Heat Sh 8W0201308AH
- 12Heat Sh 8W0201308T
- 12Heat Sh 8W0201308L
- 13Part N91068501
- 14Ap&cap With Retaining Strap For Fuel Tank Cap 8W0201550
- 14Ap&cap With Retaining Strap For Fuel Tank Cap 4G0201550K
- 15Strap 8W0201653
- 16Strap 8W0201653E
- 17Strap 8W0201653G
- 17Strap 8W0201653K
- 18Screw N91165402
- 19Screw N91243601
- 20Rubber Bush 8K0201840B
- 21Bush 8K0201693B
- 22Rubber Bush 8K0201840D
- 23Bush 8K0201693D
- 24Screw N91257901
- 26Wiring Set 8W0971767E
- 30Clip 8W0201449G
- 31Bush 8W0201693
- 32Rubber Bush 8W0201840
- 34Housing 4G0973813C
- 35Housing 4F0973702
- 40Ring 4M0201115
- 41Ins Piece 4H0201112A
Vehicle fitment table1
Europe (1)
| Vehicle | Years | Pos. | Qty |
|---|---|---|---|
| Audi A5 Sportback | 2016-2020 | 1 | 1 |
The manufacturer’s catalogue lists this part number as fitted until 30 July 2018; later builds may use a superseding number.
Diagrams & fitment data powered by oemdiagrams.com
8W6201060AC Audi Fuel Tank is fitted on: Audi A5 Sportback 2016-2020.
