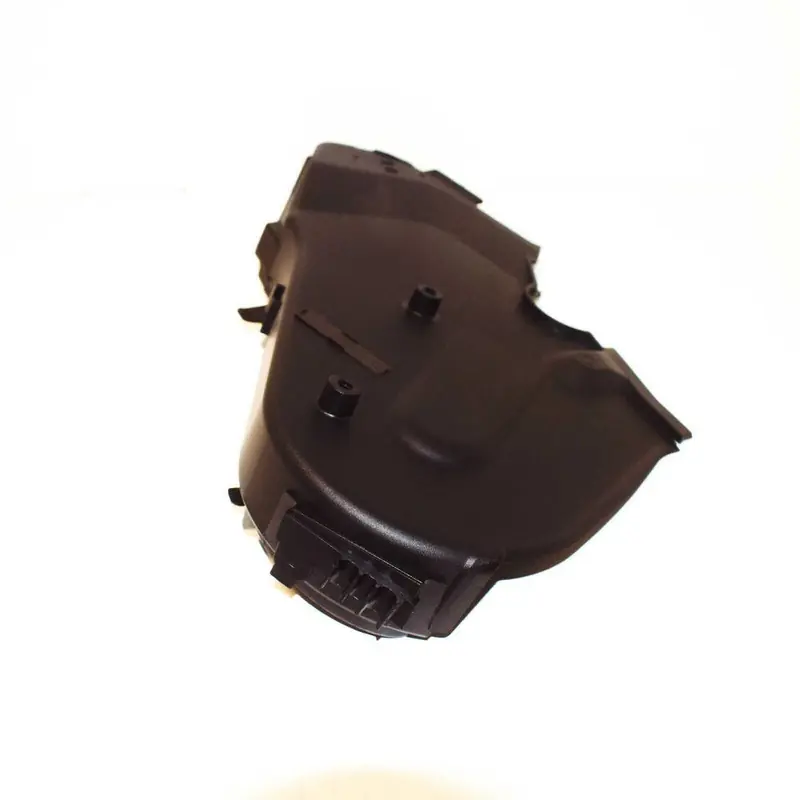

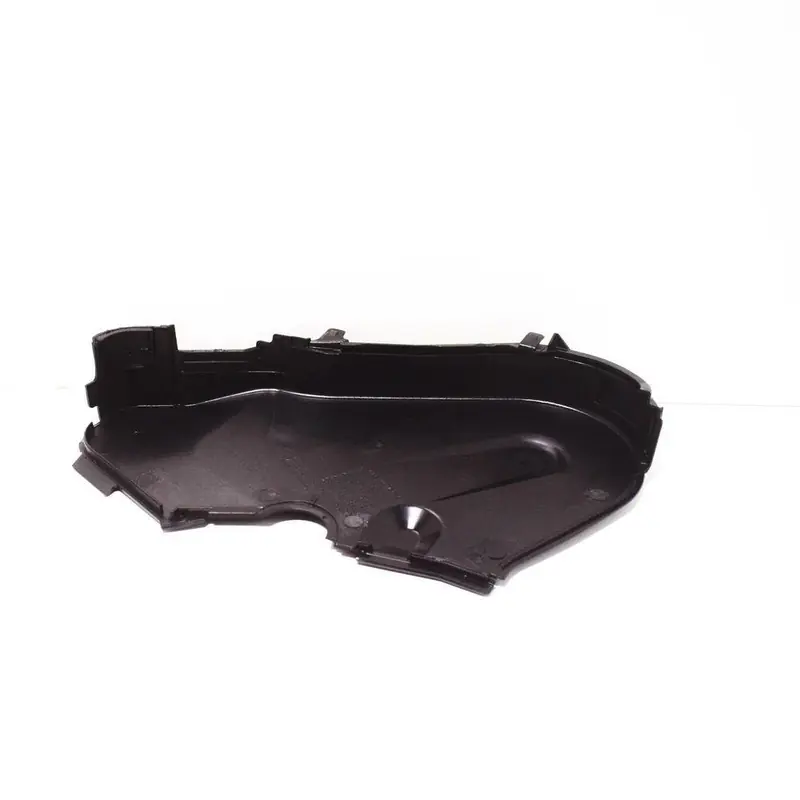

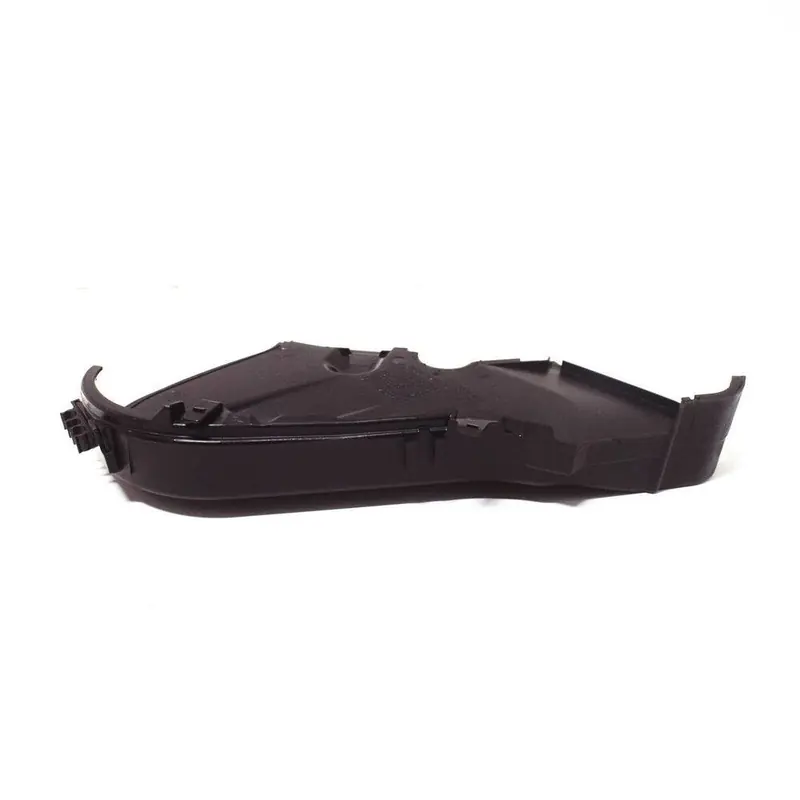

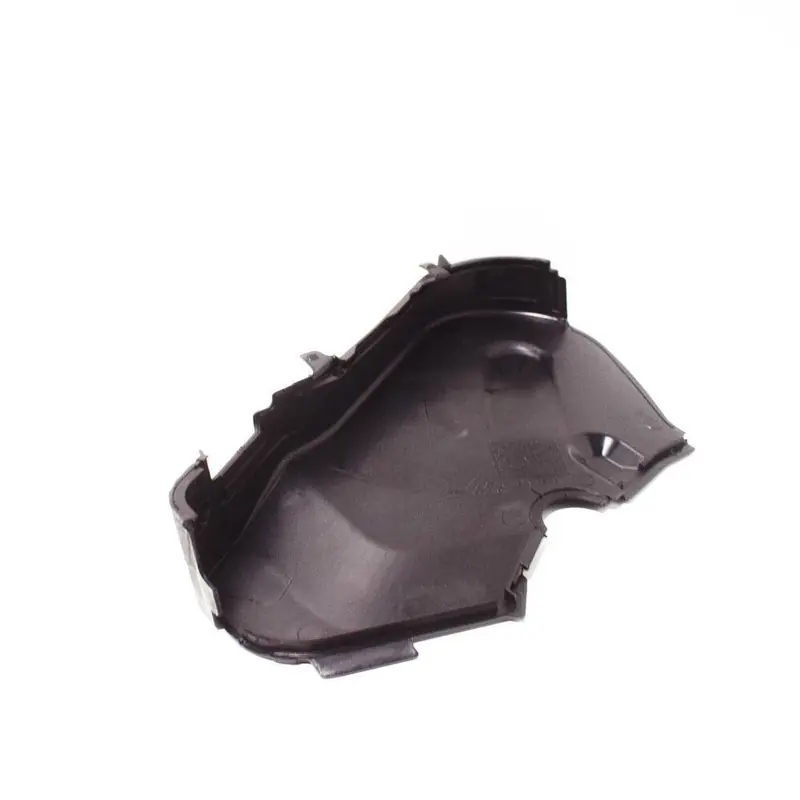

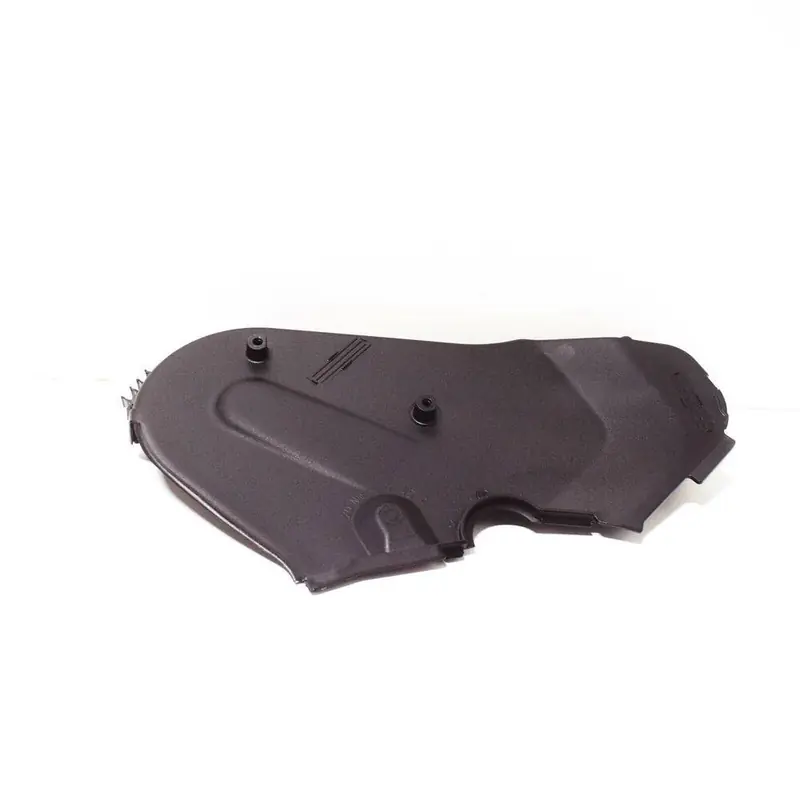

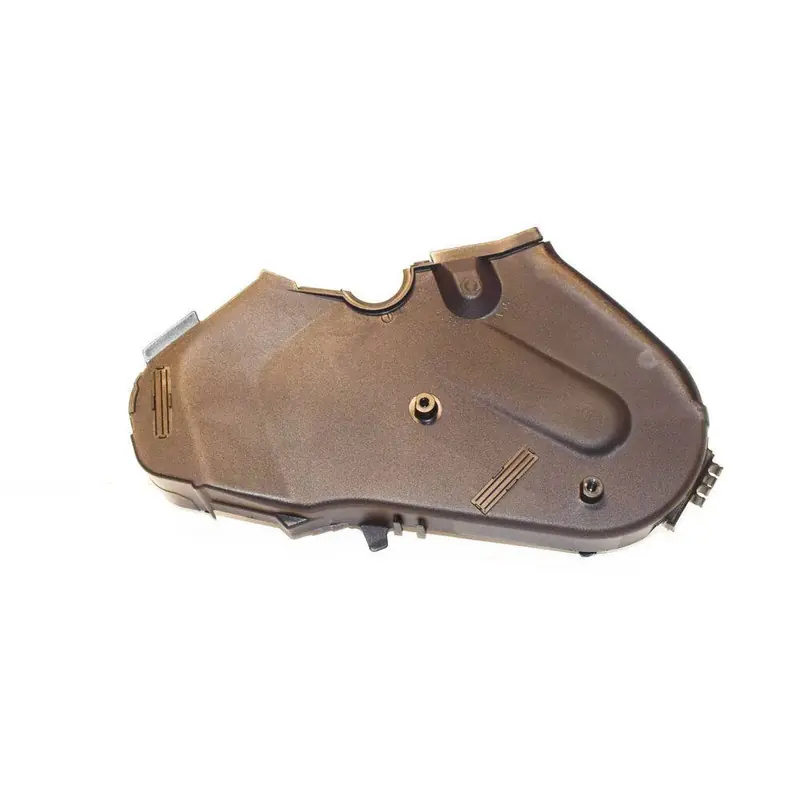

Genuine OEM Volkswagen Engine Timing Belt Case Cover, part number 04L109107F. This protective component is designed to enclose and shield the engine's timing belt assembly from external contaminants like dirt, dust, and moisture, which can cause premature wear or failure. It is installed over the timing belt mechanism within the engine bay. Made from durable black plastic, it weighs 0.261 kg. Using a genuine OEM cover ensures precise fitment, proper sealing, and robust protection, critical for the reliable operation and lifespan of the timing belt.
Catalogue entry: PROTECTION upper.
Technical details
- Category
- Belts, Chains & Tensioners
- Country of origin
- Germany
- Customs (HS) code
- 84099900
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 37 × 26 × 7.3 cm
- Shipping weight
- 0.26 kg
Specifications
As recorded in the manufacturer’s parts catalogue for this part number.
- Engine codes
- CRGA, DBGA, DBGC, DFCA, DFGA, DFGC, DFHA
Why buy from WW Spares?
- ✓ Genuine OEM inventory sourced directly from factory networks
- ✓ Fitment support from workshop-seasoned parts specialists
- ✓ Global logistics with customs-ready documentation
Need help confirming compatibility? Talk to a specialist
Parts diagram & fitment
61 vehiclesToothed Belt Guard — locate 04L109107F Volkswagen Engine Timing Belt Case Cover | Genuine OEM in the official exploded view and explore the surrounding assembly.
Parts in this assembly19
- 2Clip 04L131213C
- 3Cover 04L109145A
- 4Bolt WHT005822
- 5Protection 04L109147D
- 6Bolt WHT005821
- 7Shield 05L129968
- 9Tooth Belt 04L109119F
- 10Pulley 04L109105
- 11Tens Roll 04L109243K
- 11Tens Roll 04L109243T
- 12Bolt N10762501
- 13Collar Nut 038109454A
- 14Roller 03L109244G
- 15Bolt N10444702
- 16Collar Nut N10609201
- 17Roller 03L109244K
- 18Bolt N10675602
- 21Bolt N10335207
- 22Bolt N10628401
Vehicle fitment table61
Europe (58)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| Caddy Maxi Kombi | 2020-2024 | 1 | 1 | ||
| Kamiq | 2019- | 1 | 1 | ||
| Leon style | 2019- | 1 | 1 | ||
| transport. multivan | 2019-2024 | 1 | |||
| caravelle | 2019-2024 | 1 | |||
| Single-cab transp. | 2019-2024 | 1 | |||
| Golf 2.0 BlueMotion | 2019-2024 | 1 | 1 | ||
| Octavia | 2019-2024 | 1 | 1 | ||
| T-Cross 1,0 | 2018-2024 | 1 | 1 | ||
| Tarraco FR | 2018-2024 | 1 | 1 | ||
| Kodiaq | 2018-2022 | 1 | 1 | ||
| Audi Q3 quattro | 2018-2019 | 1 | 1 | ||
| Arona FR | 2017- | 1 | 1 | 1E9 | |
| Ibiza FR | 2017- | 1 | 1 | 1E9 | |
| T-Roc BlueMotion | 2017-2024 | 1 | 1 | ||
| Tiguan 2.0 4Motion | 2017-2024 | 1 | 1 | ||
| Polo 1.0 BlueMotion | 2017-2024 | 1 | 1 | ||
| Arteon | 2017-2023 | 1 | 1 | ||
| Karoq | 2017-2022 | 1 | 1 | 1E9 | |
| Octavia | 2017-2020 | 1 | 1 | 1E9 | |
| Ateca Style | 2016- | 1A, 1 | 1 | 1E9 | |
| Tiguan 2.0 4Motion | 2016-2024 | 1 | 1 | 1E9 | |
| Kodiaq | 2016-2024 | 1 | 1 | 1E9 | |
| MAN TGE 55 | 2016-2021 | 1 | |||
| MAN TGE 35 | 2016-2021 | 1 | |||
| golf 2.0 | 2016-2020 | 1 | 1 | 1E9 | |
| Audi A3 Sportback | 2016-2020 | 1 | 1 | 1E9 | |
| Leon ST Stylance | 2016-2020 | 1A, 1 | 1 | 1E9 | |
| Beetle | 2016-2019 | 1 | 1 | ||
| new beetle cabriolet | 2016-2019 | 1 | 1 | ||
| Audi Q2 2.0 TDI | 2016-2018 | 1 | 1 | 1E9 | |
| Touran 2,0 BlueMotion | 2015-2024 | 1 | 1 | 1E9 | |
| Superb Combi | 2015-2024 | 1 | 1 | 1E9 | |
| Sharan BlueMotion | 2015-2022 | 1 | 1 | ||
| Alhambra Stylance | 2015-2022 | 1 | 1 | ||
| caddy kombi | 2015-2020 | 1 | 1 | ||
| caravelle | 2015-2019 | 1 | |||
| Single-cab transp. | 2015-2019 | 1 | 1 | ||
| California Camper | 2015-2019 | 1 | |||
| Passat saloon | 2014-2024 | 1 | 1 | 1E9 | |
| Golf Sportsvan 1.6 | 2014-2020 | 1 | 1 | 1E9 | |
| Audi Q3 2.0 TDI | 2014-2019 | 1A | 1 | ||
| Golf 1.4 BlueMotion | 2014-2017 | 1 | 1 | ||
| Scirocco 2.0 | 2014-2017 | 1 | 1 | ||
| jetta | 2014-2017 | 1 | 1 | ||
| Golf Estate 1.4 | 2014-2017 | 1 | 1 | ||
| Golf Estate | 2013-2017 | 1 | 1 | 1E9 | |
| Yeti | 2013-2017 | 1 | 1 | ||
| Audi A3 Cab. 1.4 | 2013-2016 | 1A | 1 | ||
| Golf 1.4 BlueMotion | 2012-2017 | 1 | 1 | 1E9 | |
| Octavia | 2012-2017 | 1 | 1 | 1E9 | |
| Audi A3 Sportback | 2012-2016 | 1A | 1 | 1E9 | |
| Leon ST Stylance | 2012-2016 | 1 | 1 | 1E9 | |
| Tiguan 4Motion | 2011-2018 | 1 | 1 | ||
| new beetle | 2011-2016 | 1 | 1 | ||
| new beetle cabriolet | 2011-2016 | 1 | 1 | ||
| Golf Cabriolet | 2011-2016 | 1 | 1 | ||
| Passat CC | 2011-2016 | 1 | 1 |
Other markets (3)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| Tiguan 2.0 4Motion | 2016-2022 | 1 | 1 | ||
| New Passat | 2015-2022 | 1 | 1 | ||
| New Passat | 2011-2015 | 1 | 1 |
Diagrams & fitment data powered by oemdiagrams.com
04L109107F Volkswagen Engine Timing Belt Case Cover | Genuine OEM is fitted on: Caddy Maxi Kombi 2020-2024; Kamiq 2019-; Leon style 2019-; transport. multivan 2019-2024; caravelle 2019-2024; Single-cab transp. 2019-2024; Golf 2.0 BlueMotion 2019-2024; Octavia 2019-2024; T-Cross 1,0 2018-2024; Tarraco FR 2018-2024; Kodiaq 2018-2022; Audi Q3 quattro 2018-2019; Arona FR 2017-; Ibiza FR 2017-; T-Roc BlueMotion 2017-2024; Tiguan 2.0 4Motion 2017-2024; Polo 1.0 BlueMotion 2017-2024; Arteon 2017-2023; Karoq 2017-2022; Octavia 2017-2020; Ateca Style 2016-; Tiguan 2.0 4Motion 2016-2024; Kodiaq 2016-2024; MAN TGE 55 2016-2021; MAN TGE 35 2016-2021; golf 2.0 2016-2020; Audi A3 Sportback 2016-2020; Leon ST Stylance 2016-2020; Beetle 2016-2019; new beetle cabriolet 2016-2019; Audi Q2 2.0 TDI 2016-2018; Touran 2,0 BlueMotion 2015-2024; Superb Combi 2015-2024; Sharan BlueMotion 2015-2022; Alhambra Stylance 2015-2022; caddy kombi 2015-2020; caravelle 2015-2019; Single-cab transp. 2015-2019; California Camper 2015-2019; Passat saloon 2014-2024; Golf Sportsvan 1.6 2014-2020; Audi Q3 2.0 TDI 2014-2019; Golf 1.4 BlueMotion 2014-2017; Scirocco 2.0 2014-2017; jetta 2014-2017; Golf Estate 1.4 2014-2017; Golf Estate 2013-2017; Yeti 2013-2017; Audi A3 Cab. 1.4 2013-2016; Golf 1.4 BlueMotion 2012-2017; Octavia 2012-2017; Audi A3 Sportback 2012-2016; Leon ST Stylance 2012-2016; Tiguan 4Motion 2011-2018; new beetle 2011-2016; new beetle cabriolet 2011-2016; Golf Cabriolet 2011-2016; Passat CC 2011-2016; Tiguan 2.0 4Motion 2016-2022; New Passat 2015-2022; New Passat 2011-2015.
