Product overview

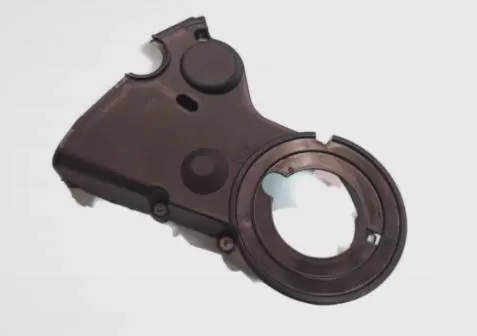

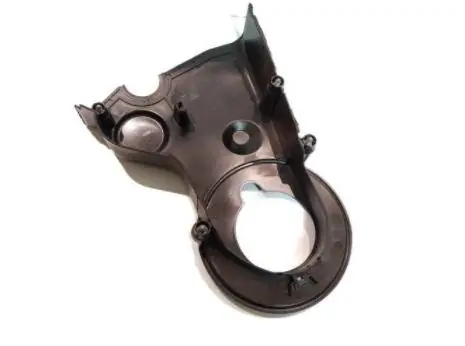

Genuine OEM Audi Lower Toothed Belt Guard, part number 04L109147D. This essential component protects the engine's toothed belt from harmful debris, dust, and moisture, which can cause premature wear or damage. Positioned as the lower section of the belt cover, it is manufactured from robust, heat-resistant plastic. A genuine OEM guard ensures a perfect seal and precise fit, critical for maintaining the integrity of the timing system and preventing costly engine damage.
Catalogue entry: PROTECTION lower.
Technical details
- Category
- Belts, Chains & Tensioners
- Country of origin
- Germany
- Customs (HS) code
- 84099900
- Manufacturer
- Audi
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 31.5 × 23 × 7 cm
- Shipping weight
- 0.26 kg
Specifications
As recorded in the manufacturer’s parts catalogue for this part number.
- Engine codes
- CNHA, CRLB, CRLD, CSUB, CSUD, CSUE, CUPA, DBGA, DDCA, DDCB, DDDA, DFCA, DFEA, DFGA, DFGC, DFHA
Why buy from WW Spares?
- ✓ Genuine OEM inventory sourced directly from factory networks
- ✓ Fitment support from workshop-seasoned parts specialists
- ✓ Global logistics with customs-ready documentation
Need help confirming compatibility? Talk to a specialist
Parts diagram & fitment

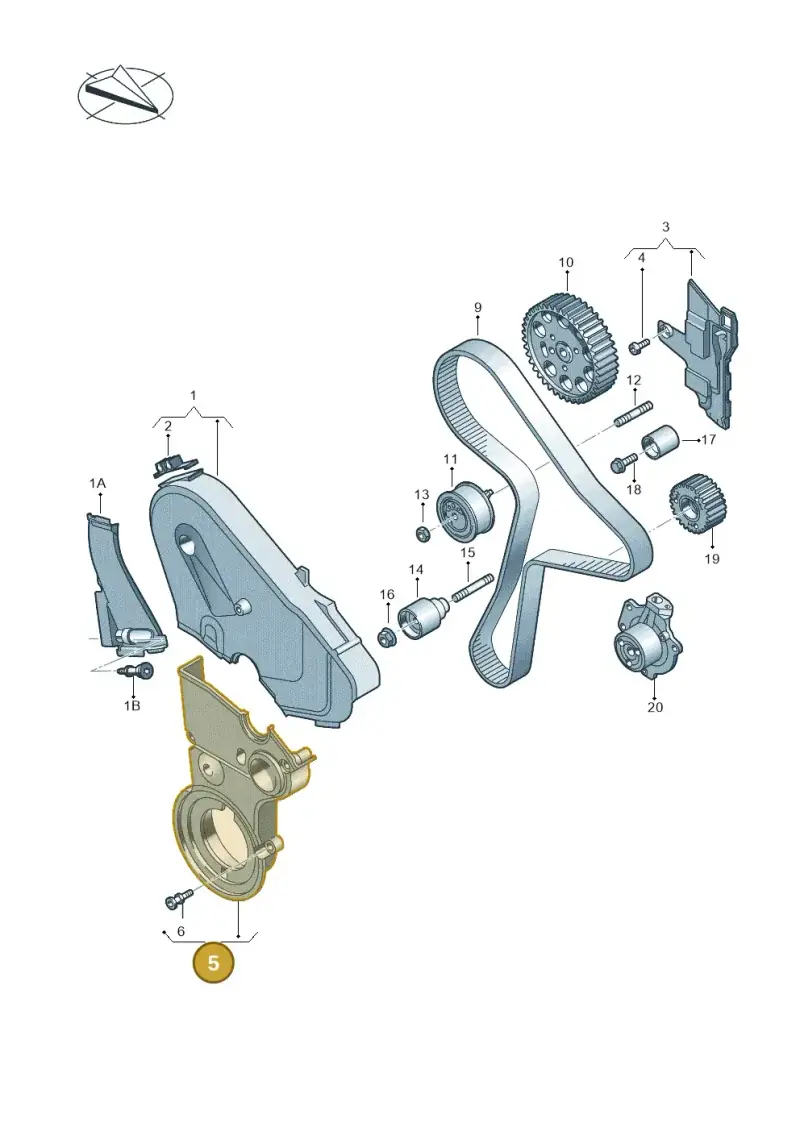

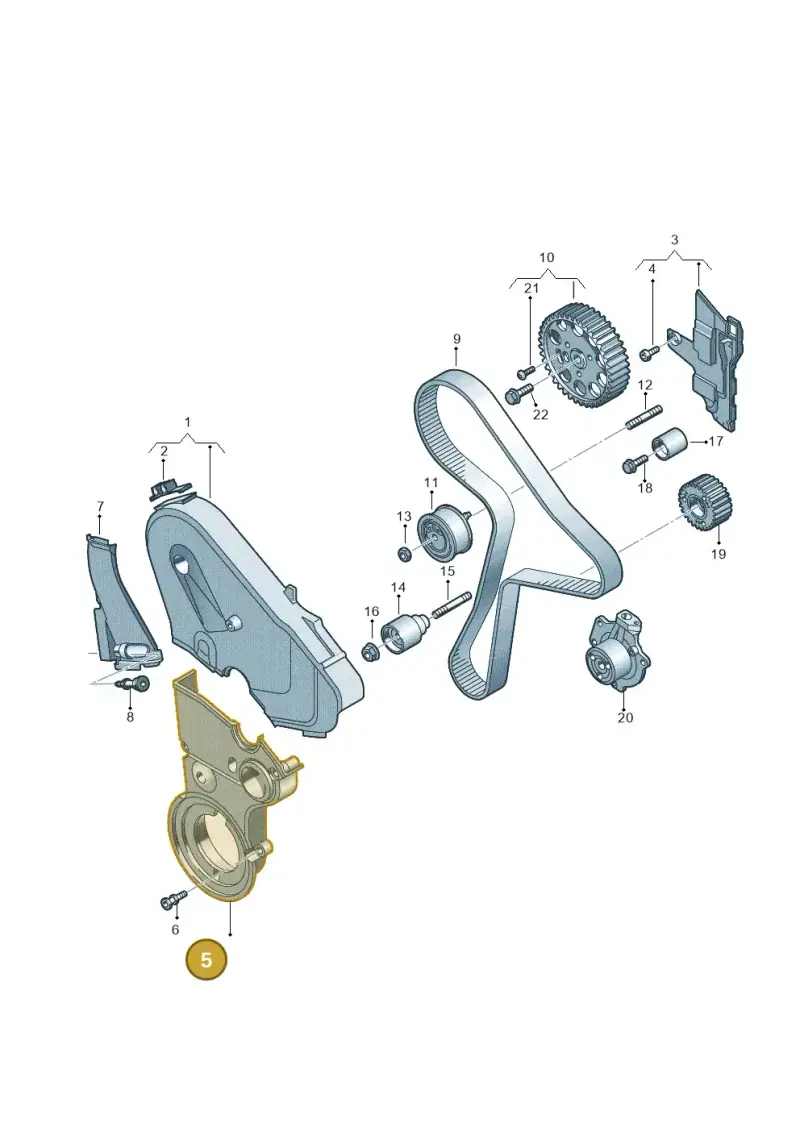

71 vehiclesToothed Belt Guard — locate 04L109147D Audi Lower Toothed Belt Guard | OEM in the official exploded view and explore the surrounding assembly.
Parts in this assembly19
- 1Protection 04L109107F
- 2Clip 04L131213C
- 3Cover 04L109145A
- 4Bolt WHT005822
- 6Bolt WHT005821
- 7Shield 05L129968
- 9Tooth Belt 04L109119F
- 10Pulley 04L109105
- 11Tens Roll 04L109243K
- 11Tens Roll 04L109243T
- 12Bolt N10762501
- 13Collar Nut 038109454A
- 14Roller 03L109244G
- 15Bolt N10444702
- 16Collar Nut N10609201
- 17Roller 03L109244K
- 18Bolt N10675602
- 21Bolt N10335207
- 22Bolt N10628401
Compatible / alternative parts(12)
Vehicle fitment table71
Europe (68)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| Kodiaq | 2024- | 5 | 1 | ||
| Kamiq | 2019- | 5 | 1 | ||
| transport. multivan | 2019-2024 | 5 | 1 | ||
| caravelle | 2019-2024 | 5 | 1 | ||
| Single-cab transp. | 2019-2024 | 5 | 1 | ||
| T-Cross 1,0 | 2018-2024 | 5 | 1 | ||
| Tarraco FR | 2018-2024 | 5 | 1 | ||
| Kodiaq | 2018-2022 | 5 | 1 | ||
| Audi Q3 quattro | 2018-2019 | 5 | 1 | ||
| Arona FR | 2017- | 5 | 1 | ||
| Ibiza FR | 2017- | 5 | 1 | ||
| T-Roc BlueMotion | 2017-2024 | 5 | 1 | ||
| Tiguan 2.0 4Motion | 2017-2024 | 5 | 1 | ||
| Polo 1.0 BlueMotion | 2017-2024 | 5 | 1 | ||
| Arteon | 2017-2023 | 5 | 1 | DFGA,DFHA | |
| Karoq | 2017-2022 | 5 | 1 | ||
| Octavia | 2017-2020 | 5 | 1 | ||
| Ateca Style | 2016- | 7, 5 | 1 | ||
| Tiguan 2.0 4Motion | 2016-2024 | 5 | 1 | ||
| Kodiaq | 2016-2024 | 5 | 1 | ||
| MAN TGE 55 | 2016-2021 | 5 | 1 | ||
| MAN TGE 35 | 2016-2021 | 5 | 1 | ||
| golf 2.0 | 2016-2020 | 5 | 1 | ||
| Audi A3 Sportback | 2016-2020 | 5 | 1 | ||
| Audi A3 Cabrio | 2016-2020 | 7 | 1 | ||
| Audi Q5 | 2016-2020 | 5 | 1 | ||
| Audi A5 Sportback | 2016-2020 | 5 | 1 | ||
| Leon ST Stylance | 2016-2020 | 7, 5 | 1 | ||
| Beetle | 2016-2019 | 5 | 1 | ||
| new beetle cabriolet | 2016-2019 | 5 | 1 | ||
| Audi Q2 2.0 TDI | 2016-2018 | 5 | 1 | ||
| Audi A5 Cabrio 2.0 | 2016-2018 | 5 | 1 | ||
| Touran 2,0 BlueMotion | 2015-2024 | 5 | 1 | ||
| Superb Combi | 2015-2024 | 5 | 1 | ||
| Sharan BlueMotion | 2015-2022 | 5 | 1 | ||
| Alhambra Stylance | 2015-2022 | 5 | 1 | ||
| caddy kombi | 2015-2020 | 5 | 1 | ||
| caravelle | 2015-2019 | 5 | 1 | ||
| Single-cab transp. | 2015-2019 | 5 | 1 | ||
| California Camper | 2015-2019 | 5 | 1 | ||
| audi a4 2.0 | 2015-2019 | 5 | 1 | ||
| Passat saloon | 2014-2024 | 5 | 1 | ||
| Audi TTS Coupe 2.0 | 2014-2023 | 7 | 1 | TR1 | |
| Golf Sportsvan 1.6 | 2014-2020 | 5 | 1 | ||
| Audi Q3 2.0 TDI | 2014-2019 | 7 | 1 | T0N | |
| audi a6 qu. 3.0 tdi | 2014-2018 | 7 | 1 | CNH | |
| Golf 1.4 BlueMotion | 2014-2017 | 5 | 1 | ||
| Scirocco 2.0 | 2014-2017 | 5 | 1 | ||
| jetta | 2014-2017 | 5 | 1 | ||
| Golf Estate 1.4 | 2014-2017 | 5 | 1 | ||
| Golf Estate | 2013-2017 | 5 | 1 | ||
| Yeti | 2013-2017 | 5 | 1 | ||
| Audi A3 Cab. 1.4 | 2013-2016 | 7 | 1 | ||
| Golf 1.4 BlueMotion | 2012-2017 | 5 | 1 | ||
| Audi Q5 qu. 2.0 TDI | 2012-2017 | 7 | 1 | ||
| Octavia | 2012-2017 | 5, 7 | 1 | ||
| Audi A3 Sportback | 2012-2016 | 7 | 1 | ||
| Leon ST Stylance | 2012-2016 | 5 | 1 | ||
| Tiguan 4Motion | 2011-2018 | 5 | 1 | ||
| Audi A5 Sportback | 2011-2017 | 7 | 1 | ||
| Audi A5 Cabrio 2.0 | 2011-2017 | 7 | 1 | ||
| new beetle | 2011-2016 | 5 | 1 | ||
| new beetle cabriolet | 2011-2016 | 5 | 1 | ||
| Golf Cabriolet | 2011-2016 | 5 | 1 | ||
| Passat CC | 2011-2016 | 5 | 1 | ||
| audi a4 av. 2.0 tdi | 2011-2015 | 7 | 1 | ||
| audi a6 2.0 tdi | 2010-2015 | 7 | 1 | ||
| Audi A4 Av. Allroad | 2008-2016 | 7 | 1 |
Other markets (3)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| Tiguan 2.0 4Motion | 2016-2022 | 5 | 1 | ||
| New Passat | 2015-2022 | 5 | 1 | ||
| New Passat | 2011-2015 | 5 | 1 |
