04L109243K Tensioning Roller
- 04L109243KThis pageNot stocked
Aug 2023 - 04L109243TCurrent number
Special order item. Delivery time may vary.
About This Part
Superseded part number
This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for SEAT is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINShipping details
- Shipping weight
- 623 g
- Shipping size (L × W × H)
- 11.5 × 8.5 × 4.5 cm
- Country of origin
- Spain
- Customs (HS) code
- 84835080

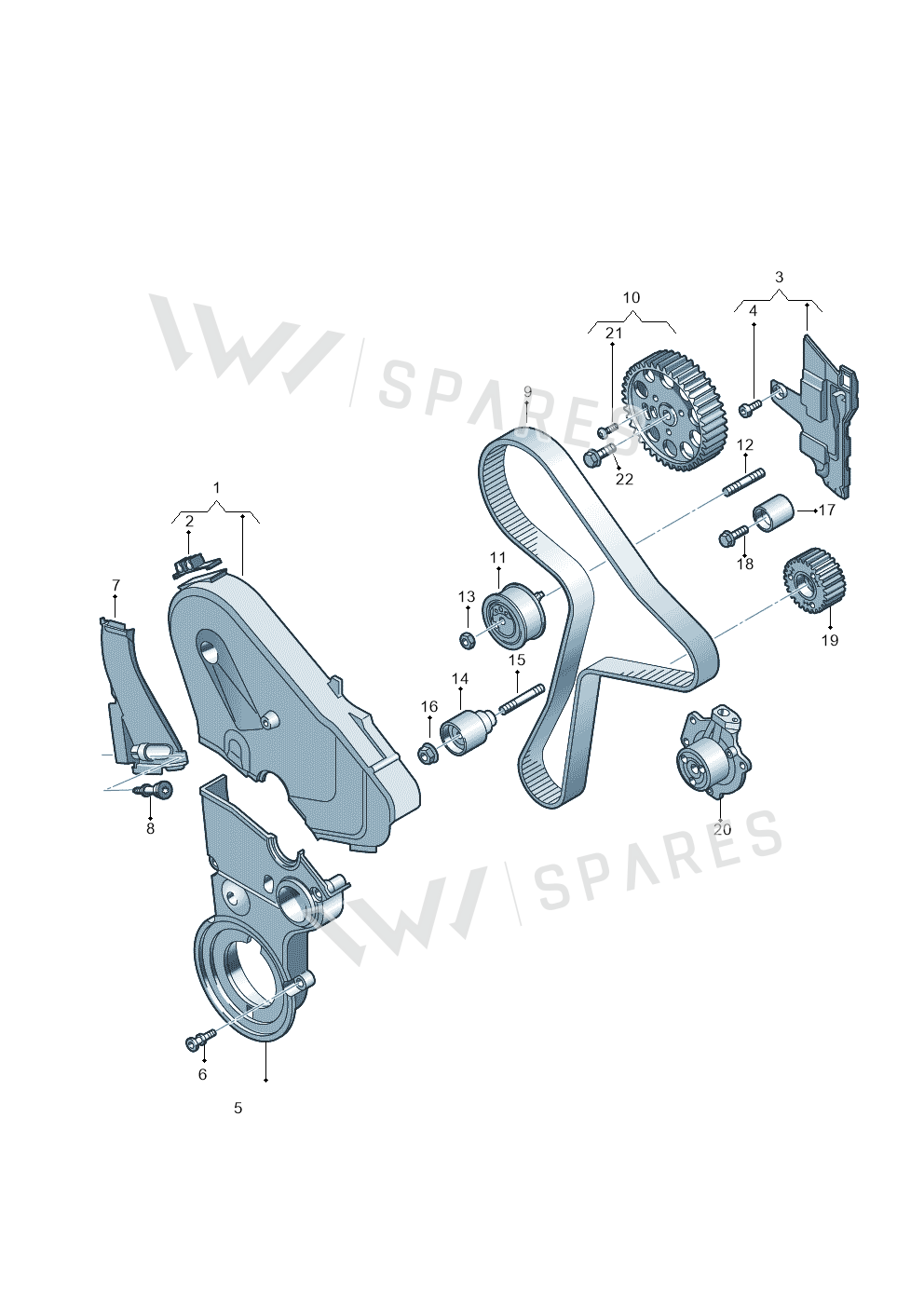

Parts diagram & fitment
28 vehiclesTensioning Roller — locate Tensioning Roller in the official exploded view and explore the surrounding assembly.
Parts in this assembly19
- 1Protection 04L109107F
- 2Clip 04L131213C
- 3Cover 04L109145A
- 4Bolt WHT005822
- 5Protection 04L109147D
- 6Bolt WHT005821
- 7Shield 05L129968
- 9Tooth Belt 04L109119F
- 10Pulley 04L109105
- 11Tens Roll 04L109243T
- 12Bolt N10762501
- 13Collar Nut 038109454A
- 14Roller 03L109244G
- 15Bolt N10444702
- 16Collar Nut N10609201
- 17Roller 03L109244K
- 18Bolt N10675602
- 21Bolt N10335207
- 22Bolt N10628401
Vehicle fitment table28
Europe (27)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| Caddy Maxi Kombi | 2020-2024 | 11 | 1 | ||
| Leon style | 2019- | 11 | 1 | ||
| transport. multivan | 2019-2024 | 11 | 1 | PR | :0G |
| caravelle | 2019-2024 | 11 | 1 | CX | EC, |
| Single-cab transp. | 2019-2024 | 11 | 1 | CXE | C,C |
| Golf 2.0 BlueMotion | 2019-2024 | 11 | 1 | ||
| Octavia | 2019-2024 | 11 | 1 | ||
| audi a6 2.0 | 2018- | 11 | 1 | ||
| Kodiaq | 2018-2022 | 11 | 1 | ||
| T-Roc BlueMotion | 2017-2024 | 11 | 1 | ||
| Arteon | 2017-2023 | 11 | 1 | ||
| Karoq | 2017-2022 | 11 | 1 | ||
| Octavia | 2017-2020 | 11 | 1 | ||
| Tiguan 2.0 4Motion | 2016-2024 | 11 | 1 | ||
| Kodiaq | 2016-2024 | 11 | 1 | ||
| MAN TGE 55 | 2016-2021 | 11 | 1 | PR:0GG,7MJ | 0GG |
| MAN TGE 35 | 2016-2021 | 11 | 1 | PR:0GG,7MJ | 0GG |
| golf 2.0 | 2016-2020 | 11 | 1 | TI9 | |
| Audi A3 Sportback | 2016-2020 | 11 | 1 | ||
| Audi Q5 | 2016-2020 | 11 | 1 | ||
| Audi A5 Sportback | 2016-2020 | 11 | 1 | ||
| Audi Q2 2.0 TDI | 2016-2018 | 11 | 1 | ||
| Audi A5 Cabrio 2.0 | 2016-2018 | 11 | 1 | ||
| Touran 2,0 BlueMotion | 2015-2024 | 11 | 1 | 7MJ | |
| audi a4 2.0 | 2015-2019 | 11 | 1 | ||
| Passat saloon | 2014-2024 | 11 | 1 | DBGA,DBGB | |
| Golf Estate | 2013-2017 | 11 | 1 | TI9 |
Other markets (1)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| Tiguan 2.0 4Motion | 2016-2022 | 11 | 1 |
Diagrams & fitment data powered by oemdiagrams.com
Tensioning Roller is fitted on: Caddy Maxi Kombi 2020-2024; Leon style 2019-; transport. multivan 2019-2024; caravelle 2019-2024; Single-cab transp. 2019-2024; Golf 2.0 BlueMotion 2019-2024; Octavia 2019-2024; audi a6 2.0 2018-; Kodiaq 2018-2022; T-Roc BlueMotion 2017-2024; Arteon 2017-2023; Karoq 2017-2022; Octavia 2017-2020; Tiguan 2.0 4Motion 2016-2024; Kodiaq 2016-2024; MAN TGE 55 2016-2021; MAN TGE 35 2016-2021; golf 2.0 2016-2020; Audi A3 Sportback 2016-2020; Audi Q5 2016-2020; Audi A5 Sportback 2016-2020; Audi Q2 2.0 TDI 2016-2018; Audi A5 Cabrio 2.0 2016-2018; Touran 2,0 BlueMotion 2015-2024; audi a4 2.0 2015-2019; Passat saloon 2014-2024; Golf Estate 2013-2017; Tiguan 2.0 4Motion 2016-2022.
