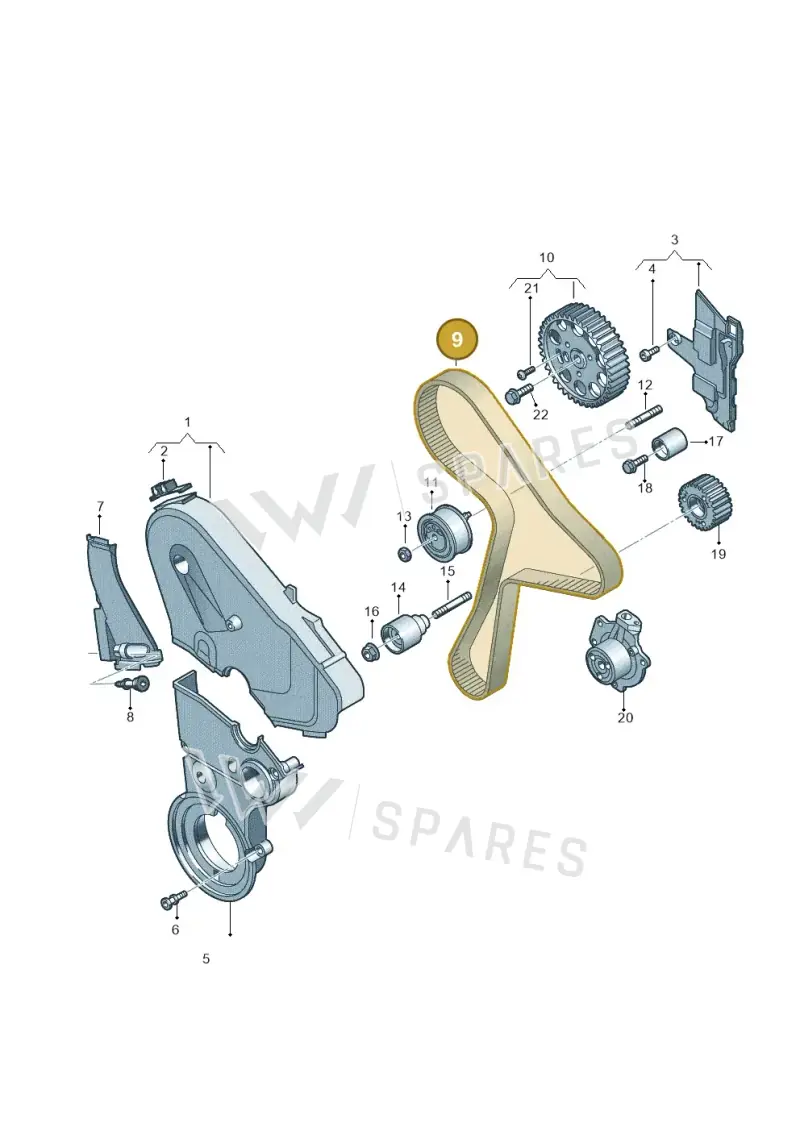

Number 9 marks the part’s position in the exploded view.
Product overview
Genuine OEM Volkswagen Toothed Belt, part number 04L109119F. This belt is crucial for synchronizing the rotation of the crankshaft and camshaft, which controls the engine's valves. It is located within the engine's timing system. The belt is constructed from high-strength, flexible materials designed to withstand continuous operation and temperature fluctuations. Genuine OEM belts ensure exact fitment and material composition for reliable engine timing and longevity.
Technical details
- Category
- Belts, Chains & Tensioners
- Customs (HS) code
- 40103900
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 54 × 28 × 2.5 cm
- Shipping weight
- 0.22 kg
Parts diagram & fitment
10 vehiclesToothed Belt — locate 04L109119F Volkswagen Toothed Belt | Genuine OEM in the official exploded view and explore the surrounding assembly.
Parts in this assembly(19)
- 1Protection 04L109107F
- 2Clip 04L131213C
- 3Cover 04L109145A
- 4Bolt WHT005822
- 5Protection 04L109147D
- 6Bolt WHT005821
- 7Shield 05L129968
- 10Pulley 04L109105
- 11Tens Roll 04L109243K
- 11Tens Roll 04L109243T
- 12Bolt N10762501
- 13Collar Nut 038109454A
- 14Roller 03L109244G
- 15Bolt N10444702
- 16Collar Nut N10609201
- 17Roller 03L109244K
- 18Bolt N10675602
- 21Bolt N10335207
- 22Bolt N10628401
Compatible / alternative parts(12)
Diagrams & fitment data powered by oemdiagrams.com
04L109119F Volkswagen Toothed Belt | Genuine OEM is fitted on: transport. multivan 2019-2024; caravelle 2019-2024; Single-cab transp. 2019-2024; Passat saloon 2014-2024; MAN TGE 55 2016-2021; MAN TGE 35 2016-2021; Arteon 2017-2023; Tiguan 2.0 4Motion 2017-2024; Tiguan 2.0 4Motion 2016-2024; Kodiaq 2016-2024.
