04L109119A Toothed Belt
- 04L109119AThis pageNot stocked
Oct 2014 - 04L109119DCurrent number
Special order item. Delivery time may vary.
About This Part
Superseded part number
This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for SEAT is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

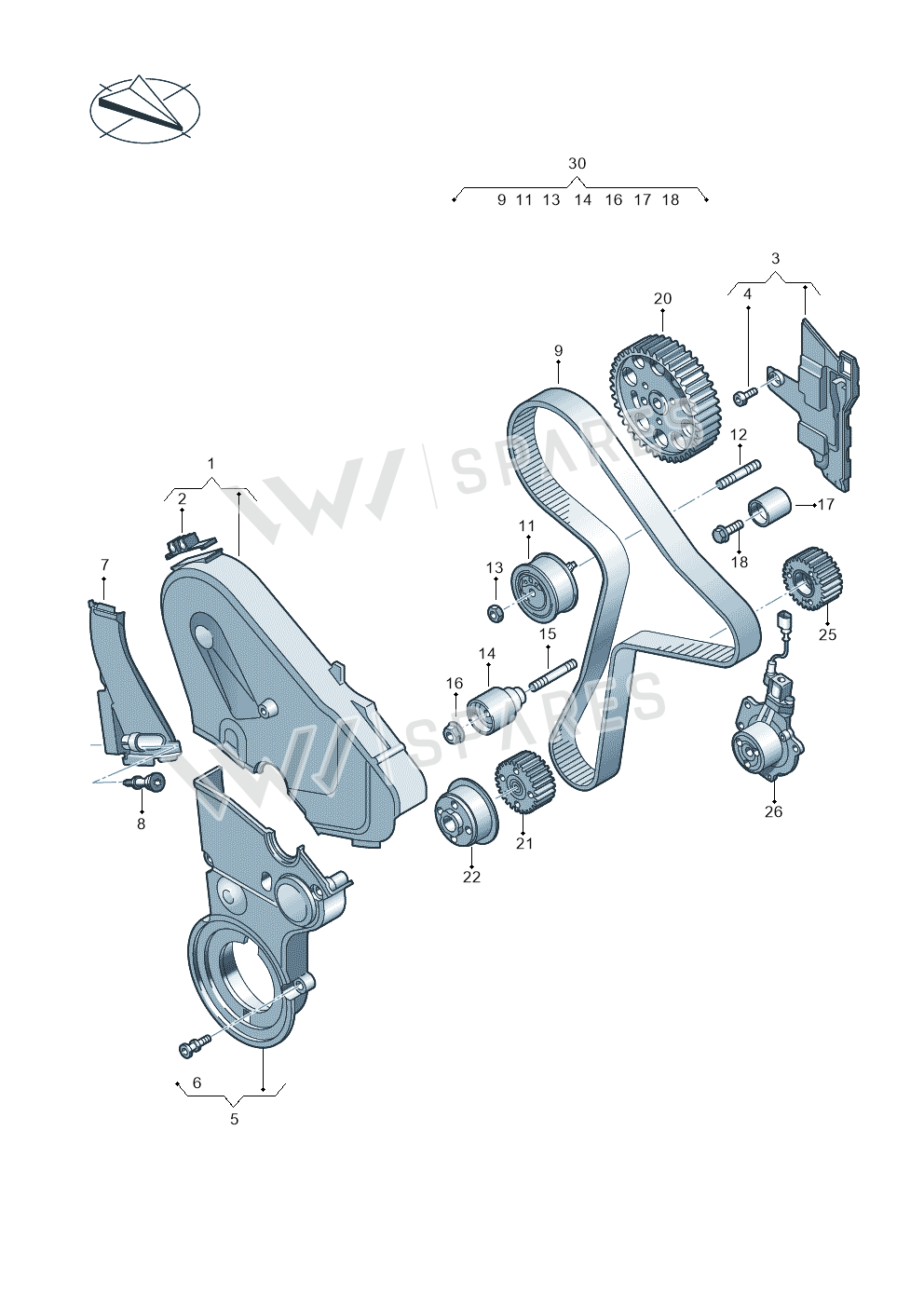

18 vehiclesToothed Belt — locate Toothed Belt in the official exploded view and explore the surrounding assembly.
Parts in this assembly20
- 1Protection 04L109107F
- 2Clip 04L131213C
- 3Cover 04L109145
- 4Bolt WHT005822
- 5Protection 04L109147D
- 6Bolt WHT005821
- 7Shield 05L129968
- 9Tooth Belt 04L109119D
- 11Tens Roll 04L109243S
- 12Bolt N10762501
- 13Collar Nut 038109454A
- 14Roller 03L109244G
- 15Bolt N10444702
- 16Collar Nut N10609201
- 17Roller 03L109244D
- 18Bolt N10675602
- 20Pulley 04L109105
- 21Pulley 05L105263
- 21Pulley 04L105263C
- 30Repair Kit 04L198119K
Vehicle fitment table18
Europe (17)
| Vehicle | Years | Pos. | Qty |
|---|---|---|---|
| Audi Q3 quattro | 2018-2019 | 9 | 1 |
| Audi A3 Sportback | 2016-2020 | 9 | 1 |
| Audi Q5 | 2016-2020 | 9 | 1 |
| Audi A5 Sportback | 2016-2020 | 9 | 1 |
| Audi Q2 2.0 TDI | 2016-2018 | 9 | 1 |
| audi a4 2.0 | 2015-2019 | 9 | 1 |
| fabia | 2014-2022 | 6 | 1 |
| Golf 1.4 BlueMotion | 2014-2017 | 9 | 1 |
| Golf Estate 1.4 | 2014-2017 | 9 | 1 |
| Audi A3 Cab. 1.4 | 2013-2016 | 13 | 1 |
| Octavia | 2012-2017 | 9 | 1 |
| Audi A3 Sportback | 2012-2016 | 13 | 1 |
| Leon ST Stylance | 2012-2016 | 9 | 1 |
| Audi A5 Sportback | 2011-2017 | 13 | 1 |
| Audi A5 Cabrio 2.0 | 2011-2017 | 13 | 1 |
| audi a4 av. 2.0 tdi | 2011-2015 | 13 | 1 |
| audi a6 2.0 tdi | 2010-2015 | 13 | 1 |
Other markets (1)
| Vehicle | Years | Pos. | Qty |
|---|---|---|---|
| New Passat | 2011-2015 | 9 | 1 |
Diagrams & fitment data powered by oemdiagrams.com
Toothed Belt is fitted on: Audi Q3 quattro 2018-2019; Audi A3 Sportback 2016-2020; Audi Q5 2016-2020; Audi A5 Sportback 2016-2020; Audi Q2 2.0 TDI 2016-2018; audi a4 2.0 2015-2019; fabia 2014-2022; Golf 1.4 BlueMotion 2014-2017; Golf Estate 1.4 2014-2017; Audi A3 Cab. 1.4 2013-2016; Octavia 2012-2017; Audi A3 Sportback 2012-2016; Leon ST Stylance 2012-2016; Audi A5 Sportback 2011-2017; Audi A5 Cabrio 2.0 2011-2017; audi a4 av. 2.0 tdi 2011-2015; audi a6 2.0 tdi 2010-2015; New Passat 2011-2015.
