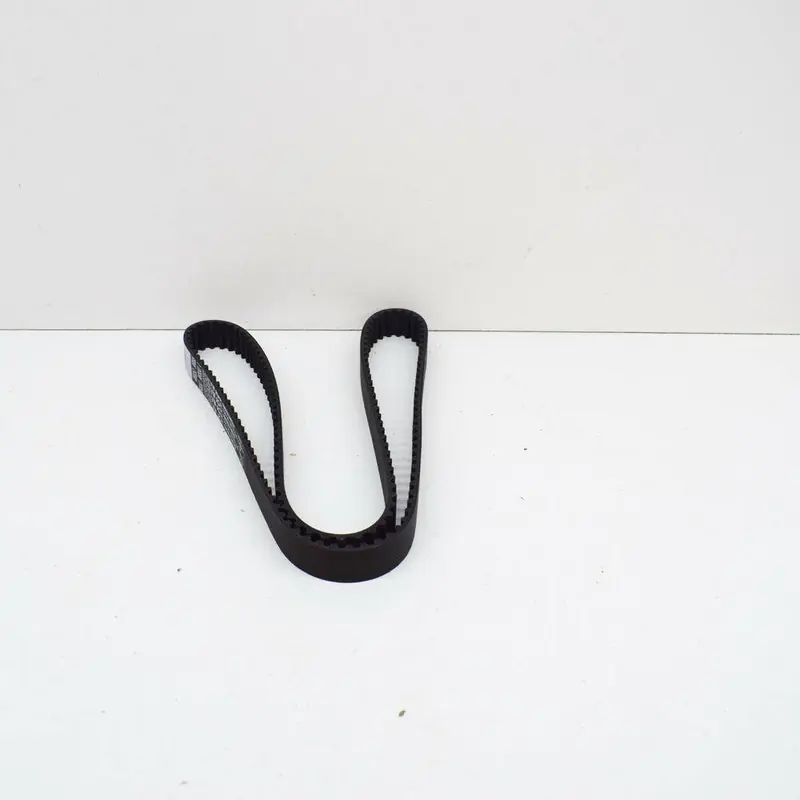

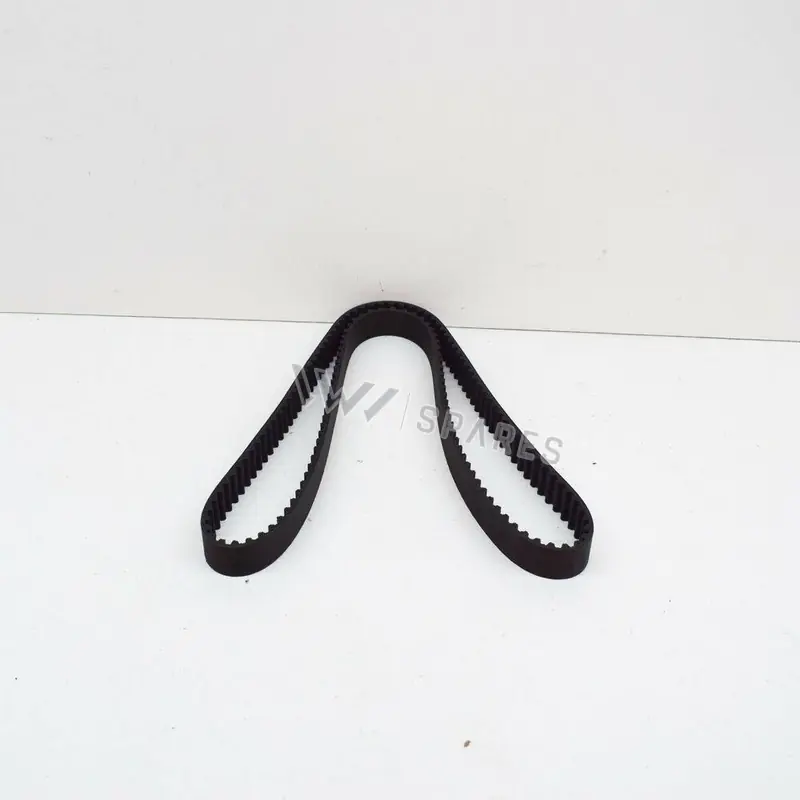

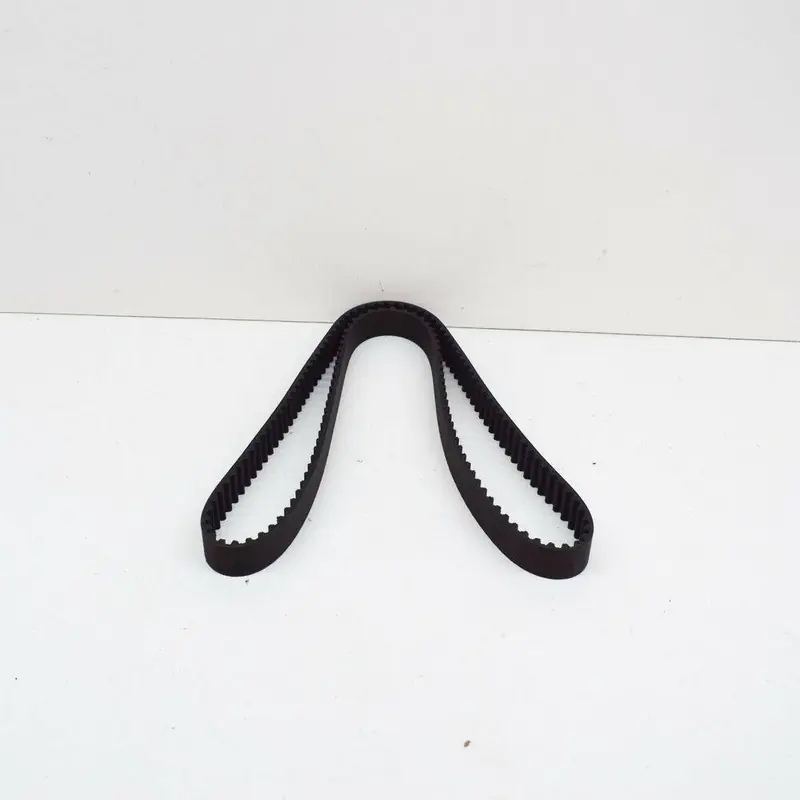

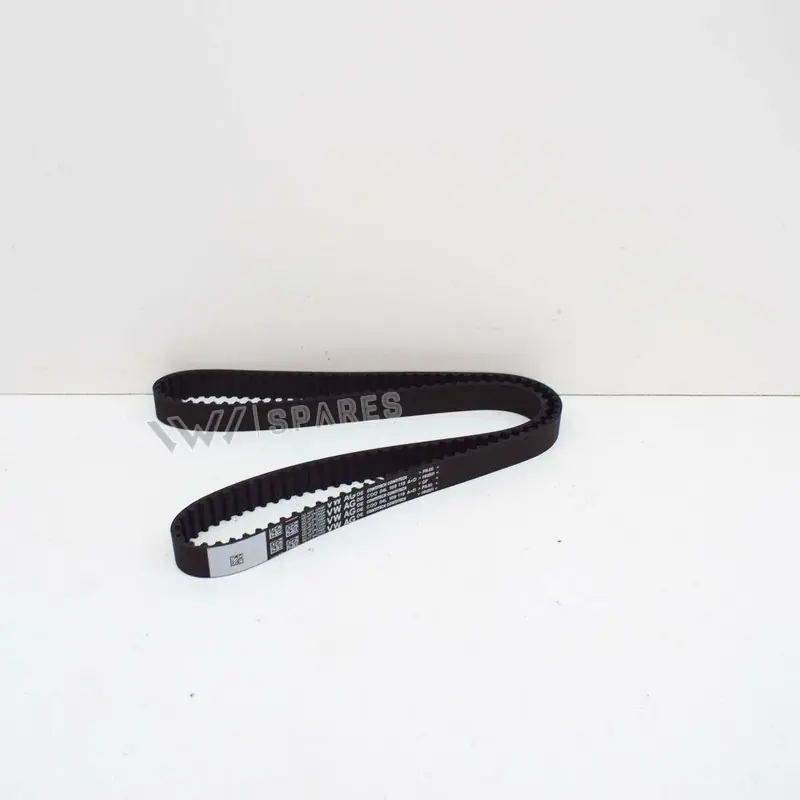

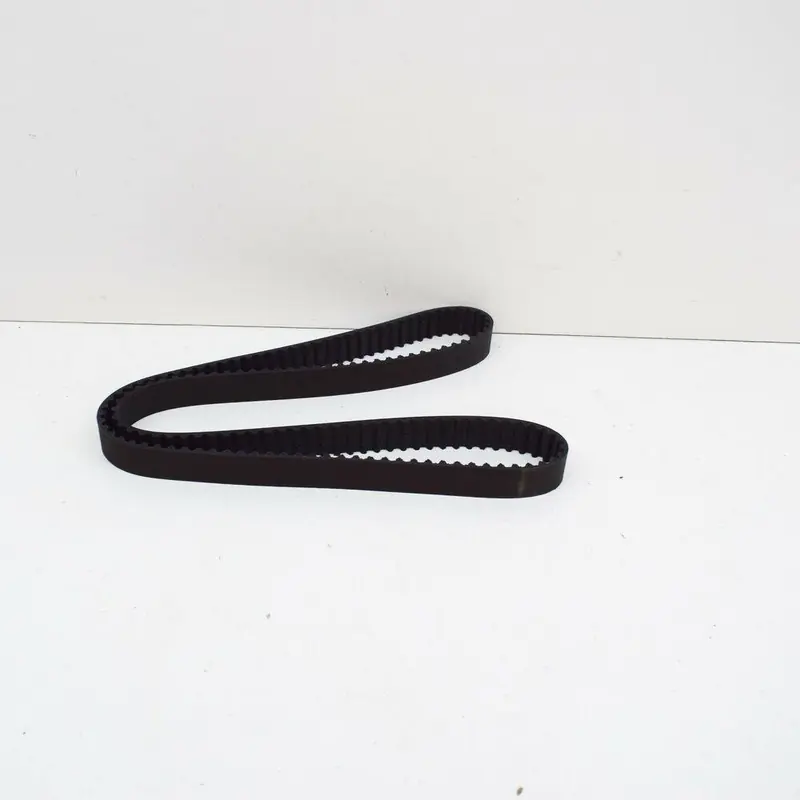

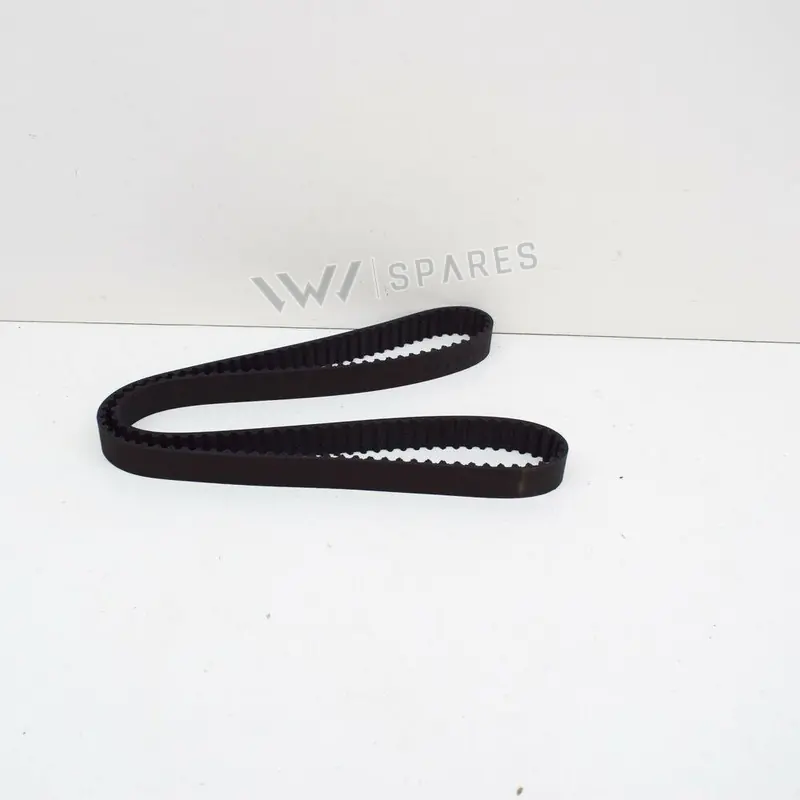

Genuine OEM Audi Timing Toothed Belt, part number 04L109119D. This crucial engine component synchronizes the rotation of the crankshaft and camshaft, ensuring that the engine's valves open and close at the precise moments required for combustion. It is located within the engine's timing system. This belt weighs approximately 0.18 kg and measures 0.31 meters in length when folded. A genuine OEM timing belt provides the exact tooth profile, material composition, and tension resistance needed for reliable engine operation and to prevent catastrophic engine damage.
Catalogue entry: TOOTH BELT Z=145.
Fitted with: 04L109243G TENS.ROLL., 04L109243S TENS.ROLL., 038109454A COLLAR NUT, 03L109244G ROLLER, N10609203 COLLAR NUT, 03L109244D ROLLER, N10675602 BOLT, N10762501 BOLT, N10444702 BOLT.
Technical details
- Category
- Belts, Chains & Tensioners
- Country of origin
- Germany
- Customs (HS) code
- 40103500
- Manufacturer
- Audi
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 31 × 16 × 2.5 cm
- Shipping weight
- 0.18 kg
Specifications
As recorded in the manufacturer’s parts catalogue for this part number.
- Engine codes
- CNHA, CRLB, CRLD, CSUB, CSUD, CSUE, CUPA, CXEC, CXFA, CXGD, CXHA, CXHC, DDCA, DDCB, DDDA, DFCA, DFEA, DFGA, DFGC, DFHA
Why buy from WW Spares?
- ✓ Genuine OEM inventory sourced directly from factory networks
- ✓ Fitment support from workshop-seasoned parts specialists
- ✓ Global logistics with customs-ready documentation
Need help confirming compatibility? Talk to a specialist
Parts diagram & fitment
67 vehiclesToothed Belt — locate 04L109119D Audi Timing Belt | Engine Synchronization in the official exploded view and explore the surrounding assembly.
Parts in this assembly20
- 1Protection 04L109107F
- 1AShield 05L129968
- 1BBolt WHT005821
- 3Cover 04L109145A
- 4Bolt WHT005822
- 5Protection 04L109147D
- 9Tooth Belt 04L109119J
- 11Tens Roll 04L109243AA
- 11Tens Roll 04L109243D
- 11Tens Roll 04L109243G
- 11Tens Roll 04L109243K
- 11Tens Roll 04L109243T
- 12Bolt N10762501
- 13Collar Nut 038109454A
- 14Roller 03L109244G
- 15Bolt N10444702
- 16Collar Nut N10609201
- 17Roller 03L109244D
- 17Roller 03L109244K
- 18Bolt N10675602
Compatible / alternative parts(12)
Vehicle fitment table67
Europe (66)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| Kamiq | 2019- | 9 | 1 | ||
| transport. multivan | 2019-2024 | 9 | 1 | PR | :4B |
| caravelle | 2019-2024 | 9 | 1 | CXEC | ,CX |
| Single-cab transp. | 2019-2024 | 9 | 1 | CX | EC, |
| T-Cross 1,0 | 2018-2024 | 9 | 1 | ||
| Tarraco FR | 2018-2024 | 9 | 1 | ||
| Audi Q3 quattro | 2018-2019 | 9 | 1 | ||
| Arona FR | 2017- | 9 | 1 | ||
| Ibiza FR | 2017- | 9 | 1 | ||
| T-Roc BlueMotion | 2017-2024 | 9 | 1 | ||
| Tiguan 2.0 4Motion | 2017-2024 | 9 | 1 | ||
| Polo 1.0 BlueMotion | 2017-2024 | 9 | 1 | ||
| Arteon | 2017-2023 | 9 | 1 | DFGA,DFHA | |
| Karoq | 2017-2022 | 9 | 1 | ||
| Octavia | 2017-2020 | 9 | 1 | ||
| Ateca Style | 2016- | 13, 9 | 1 | ||
| Tiguan 2.0 4Motion | 2016-2024 | 9 | 1 | ||
| Kodiaq | 2016-2024 | 9 | 1 | ||
| MAN TGE 55 | 2016-2021 | 9 | 1 | PR:4BH,7MM | 4BH |
| MAN TGE 35 | 2016-2021 | 9 | 1 | PR:4BH,7MM | 4BH |
| golf 2.0 | 2016-2020 | 9 | 1 | ||
| Audi A3 Sportback | 2016-2020 | 9 | 1 | ||
| Audi A3 Cabrio | 2016-2020 | 13 | 1 | ||
| Audi Q5 | 2016-2020 | 9 | 1 | ||
| Audi A5 Sportback | 2016-2020 | 9 | 1 | ||
| Leon ST Stylance | 2016-2020 | 13, 9 | 1 | ||
| Beetle | 2016-2019 | 9 | 1 | ||
| new beetle cabriolet | 2016-2019 | 9 | 1 | ||
| Audi Q2 2.0 TDI | 2016-2018 | 9 | 1 | ||
| Audi A5 Cabrio 2.0 | 2016-2018 | 9 | 1 | ||
| Ibiza Stylance | 2015- | 6 | 1 | ||
| Touran 2,0 BlueMotion | 2015-2024 | 9 | 1 | ||
| Superb Combi | 2015-2024 | 9 | 1 | ||
| Sharan BlueMotion | 2015-2022 | 9 | 1 | ||
| Alhambra Stylance | 2015-2022 | 9 | 1 | ||
| caddy kombi | 2015-2020 | 9 | 1 | ||
| caravelle | 2015-2019 | 9 | 1 | ||
| Single-cab transp. | 2015-2019 | 9 | 1 | ||
| California Camper | 2015-2019 | 9 | 1 | ||
| audi a4 2.0 | 2015-2019 | 9 | 1 | ||
| Toledo Reference | 2015-2019 | 6, 13 | 1 | ||
| Passat saloon | 2014-2024 | 9 | 1 | ||
| Audi TTS Coupe 2.0 | 2014-2023 | 13 | 1 | TR1 | |
| fabia | 2014-2022 | 6 | 1 | ||
| Golf Sportsvan 1.6 | 2014-2020 | 9 | 1 | ||
| Audi Q3 2.0 TDI | 2014-2019 | 13 | 1 | T0N | |
| Audi A1 Sportback | 2014-2018 | 6, 13 | 1 | ||
| audi a6 qu. 3.0 tdi | 2014-2018 | 13 | 1 | CNH | |
| Polo 1.4 BlueMotion | 2014-2017 | 6 | 1 | ||
| Scirocco 2.0 | 2014-2017 | 9 | 1 | ||
| jetta | 2014-2017 | 9 | 1 | ||
| Golf Estate 1.4 | 2014-2017 | 9 | 1 | ||
| Golf Estate | 2013-2017 | 9 | 1 | ||
| Yeti | 2013-2017 | 9 | 1 | ||
| Rapid | 2012-2022 | 6, 13 | 1 | ||
| Golf 1.4 BlueMotion | 2012-2017 | 9 | 1 | ||
| Octavia | 2012-2017 | 9, 13 | 1 | ||
| Audi Q5 qu. 2.0 TDI | 2012-2017 | 13 | 1 | ||
| Leon ST Stylance | 2012-2016 | 9 | 1 | ||
| Toledo Reference | 2012-2015 | 6, 13 | 1 | ||
| Tiguan 4Motion | 2011-2018 | 9 | 1 | ||
| new beetle | 2011-2016 | 9 | 1 | ||
| new beetle cabriolet | 2011-2016 | 9 | 1 | ||
| Golf Cabriolet | 2011-2016 | 9 | 1 | ||
| Passat CC | 2011-2016 | 9 | 1 | ||
| Audi A4 Av. Allroad | 2008-2016 | 13 | 1 |
Other markets (1)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| New Passat | 2015-2022 | 9 | 1 |
Diagrams & fitment data powered by oemdiagrams.com
