06F103223A Breather Line
Special order item. Delivery time may vary.
About This Part
Discontinued by the manufacturer
This part number has been discontinued and can no longer be ordered. Contact us and we will look for an alternative.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VAG is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

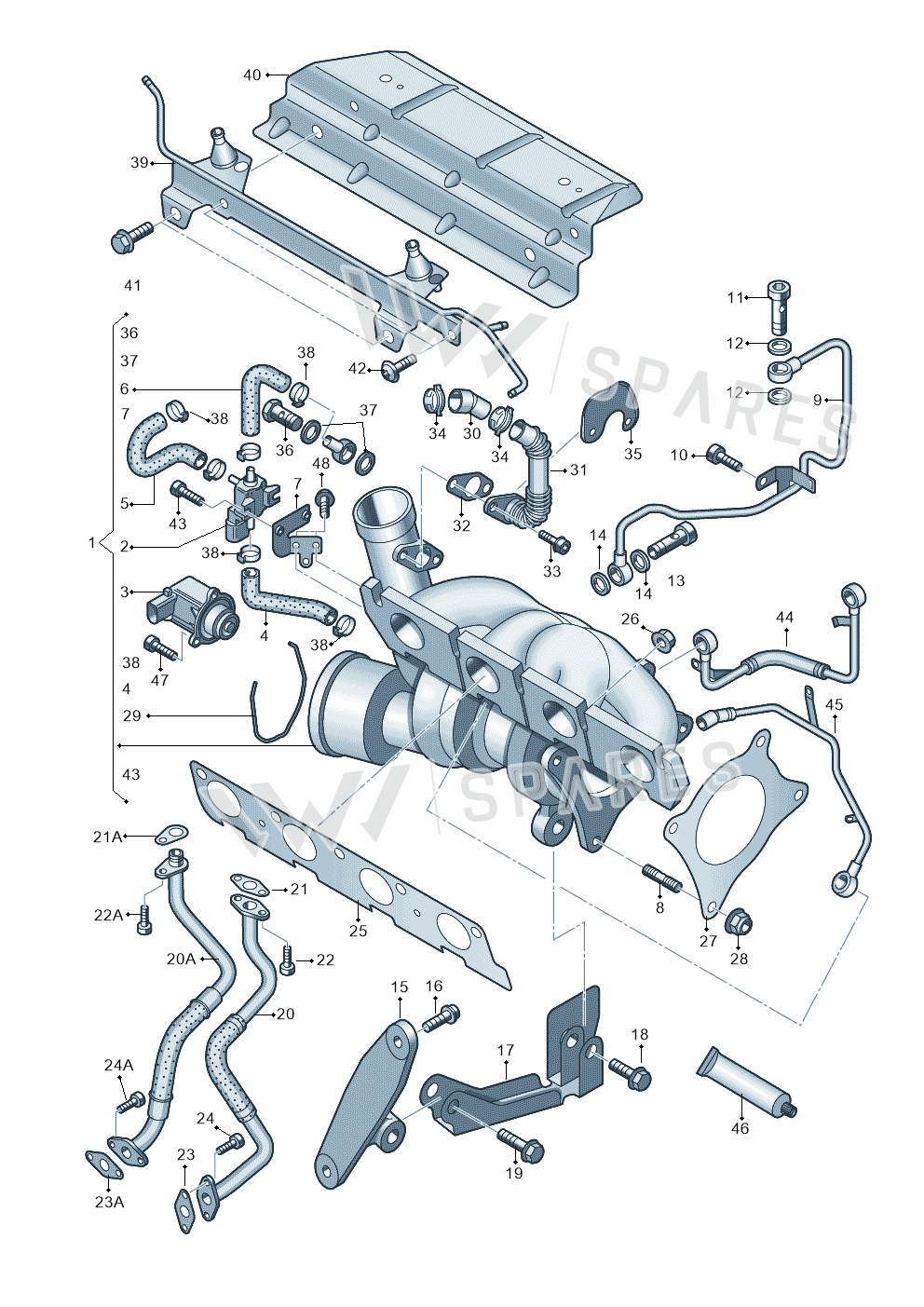

10 vehiclesBreather Line — locate Breather Line in the official exploded view and explore the surrounding assembly.
Parts in this assembly48
- 1Part 06F145701E
- 1Turbo 06F145701H
- 1Turbo 06F145701HX
- 2Valve 06F906283F
- 3Valve 06F145710C
- 3Valve 06F145710G
- 4Hose 06F145718S
- 5Hose 06F145718Q
- 6Hose 06F145718R
- 7Bracket 06F103943F
- 8Bolt N0445203
- 9Oil Pipe 06F145778G
- 10Screw N01470213
- 11Screw WHT000223
- 12Seal Ring N0138514
- 15Support 06F145533B
- 16Screw N90331606
- 17Support 06F145536C
- 18Screw N0147135
- 19Screw N90292903
- 20Oil Pipe 06F145735D
- 21Seal 06F145757L
- 23Seal 058145757A
- 24Screw N10086302
- 24Screw N10613601
- 25Seal 06F253039F
- 26Ut Hexagon Nut Self-locking Hexagon Nut N90894601
- 27Seal 1K0253115AB
- 28Collar Nut N10286108
- 29Clip 1J0145769D
- 30Pipe 06F103213M
- 31Pipe 06F103213N
- 31Pipe 06F103215A
- 32Seal 06F145757F
- 33Screw N10084102
- 34Clip N90739901
- 35Insulation 06F129686
- 36Screw N91043801
- 37Seal Ring N0138302
- 38Clamp N10203601
- 39Bracket 06F145317E
- 39Bracket 06F145317H
- 40Cover 06F129597C
- 40Cover 06F129597F
- 41Bolt N10265202
- 42Screw N91009701
- 43Screw N10459201
- 46Paste G052112A3
Vehicle fitment table10
Europe (7)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| Leon Stylance | 2010-2012 | 30 | 1 | TA2 | |
| EOS 2.0 | 2008-2010 | 12 | 1 | BPY | T59 |
| Passat/4Motion 08 | 2007- | 12 | 1 | BPY | T59 |
| EOS-Cabriolet-Coupe | 2006- | 12 | 1 | D2L | |
| JETTA 06> | 2005- | 12 | 1 | ||
| Passat/4Motion | 2005-2007 | 12 | 1 | D2L | |
| Audi A3/S3/quattro | 2005-2007 | 22 | 1 | D2L,7GB |
Other markets (3)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| Golf/Rabbit 08> | 2007- | 12 | 1 | BPY | T59 |
| Jetta "USA"05> | 2005- | 12, 30 | 1 | ||
| Golf/Rabbit | 2005-2007 | 12 | 1 | BPY | D2L |
Diagrams & fitment data powered by oemdiagrams.com
Breather Line is fitted on: Leon Stylance 2010-2012; EOS 2.0 2008-2010; Passat/4Motion 08 2007-; EOS-Cabriolet-Coupe 2006-; JETTA 06> 2005-; Passat/4Motion 2005-2007; Audi A3/S3/quattro 2005-2007; Golf/Rabbit 08> 2007-; Jetta "USA"05> 2005-; Golf/Rabbit 2005-2007.
